A-Designs Mix Factory

A-Designs’ Mix Factory Takes Summing to a New Level

A-Designs Audio, Inc. is proud to announce the worldwide debut of its Mix Factory, a totally new concept and approach to “out-of-the-box” summing for musicians and engineers looking to get more from their current sound and workflow.

“Our new Mix Factory isn’t just any old summing unit,” says A-Designs Audio’s Peter Montessi. “It delivers analog warmth with the depth and imaging needed to make your mixes truly stand out from the crowd.”

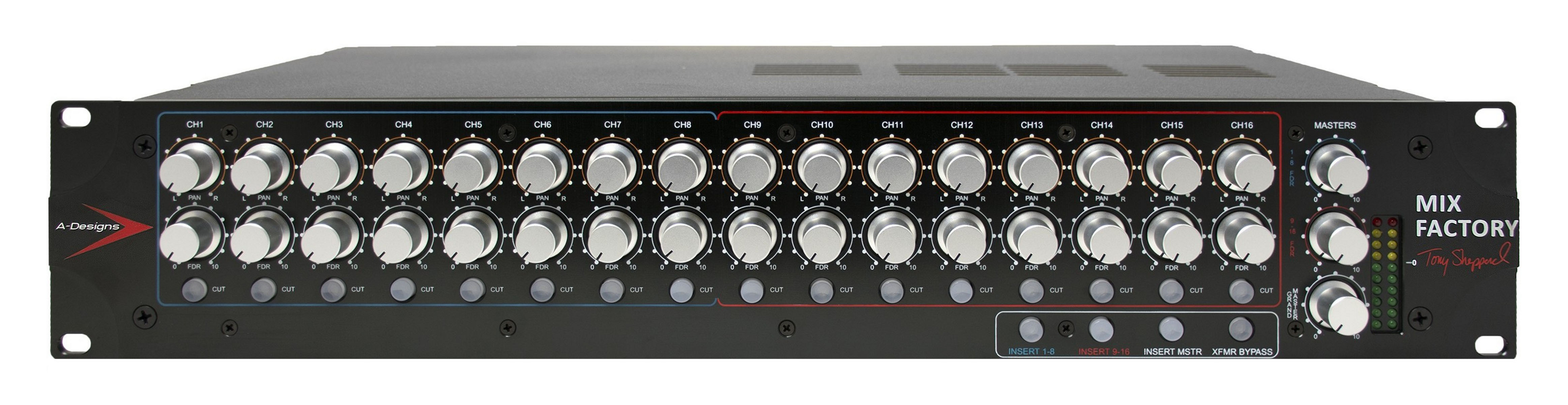

Based on a concept developed by producer/engineer/mixer Tony Shepperd and brought to life by celebrated designer Paul Wolff, A-Designs’ new Mix Factory accommodates up to 16 audio channels, which come into the device on two D-sub inputs and sum to stereo XLR outputs. All 16 channels have a continuous FDR (gain) knob, pan pot with center detent, and cut (mute) switch that acts as a signal indicator with an audio sensitive LED, which glows when signal is passing into the channel and intensifies when the signal is stronger. That same cut button illuminates red when used as a mute, and green when signal is passing through the channel.

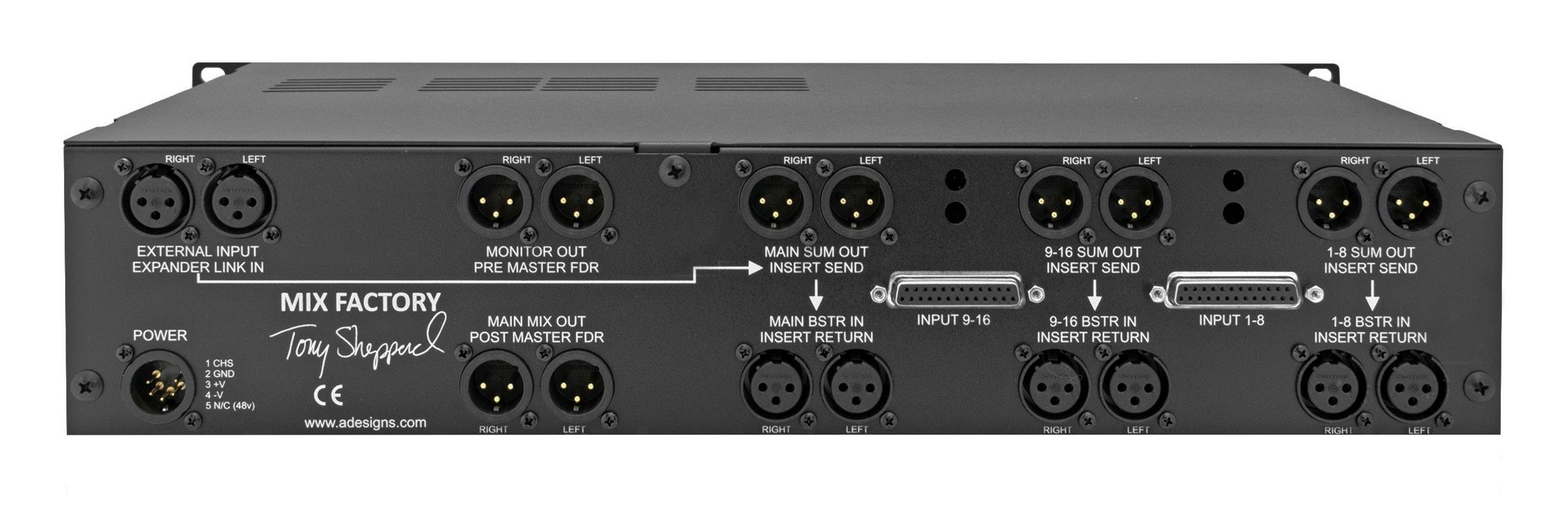

There are two eight-channel groups on the Mix Factory: 1-8 and 9-16. Each group has an insert for a compressor or EQ, and there is also a master insert for all 16 channels, along with three mute buttons for each Insert.

The Mix Factory has a pushbutton option to go from clean—the standard setup bypassing the transformers—to tonal using the custom-made output transformers manufactured by Cinemag. The difference between using the transformers and not is night and day, giving users an option for analog tone and/or color.

A-Designs Mix Factory / Add One

In situations where more than 16 channels are necessary, the Mix Factory is linkable, providing 64 or more channels… it’s like having a console in a rack!

“Like many other present day engineers, I used to think that everything could be done ‘in the box’,” recalls Shepperd. “However, I finally came to realize that analog and digital could, in fact, co-exist very well together, and the hybrid of the two was the special combination that took my mixes to a whole new level. It’s what ultimately prompted many other recording engineers to call me for tips and practically demand to know how I made my recordings sound so great. After several years of R&D on this product, I can say that nothing will make a mix pop quite like A-Designs’ new Mix Factory.”

A beefy, external, switchable power supply allows the unit to be used for both 120-volt domestic (US) studio environments as well as 230-volt export markets. Including the PSU, the 2U device weighs 17 pounds.

Features

• Solid State Design
• Custom Milled Aluminum Knobs
• Custom Output Transformers
• 2RU Rack Space
• External Power Supply
• Balanced XLR Output
• 16 Gain Controls
• 2 Master Gain Controls 1 - 8 and 9 - 16
• 1 Grand Master Gain Control
• 16 Pan Controls
• Master Insert
• 1 - 8 Insert
• 9 - 16 Insert
• 16 Mute Switches
• Transformer In/Out Switch
• 22 Color Changing Switches
• LED Array
• Linking XLRs for more channels
