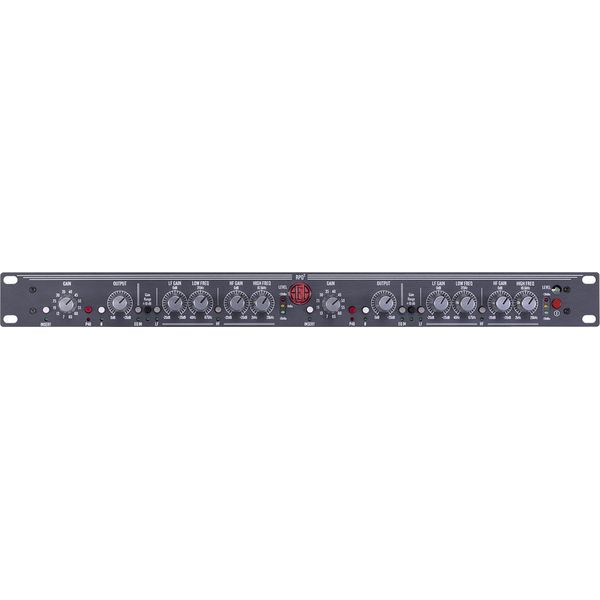

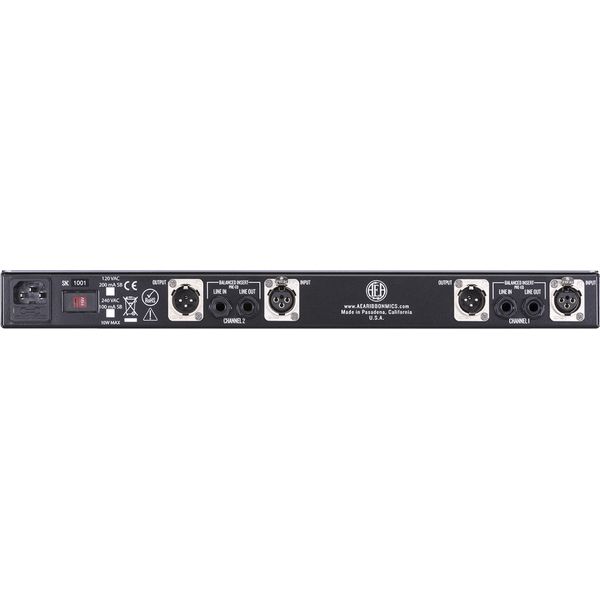

AEA RPQ3
- Dual-channel design – two channels with 85 dB of smooth and ultra-quiet JFET gain
- CurveShaper™ EQ – high-frequency shaping with low-frequency proximity control
- 68k Ohm high-impedance circuitry – improved transients, extended frequency response and higher sensitivity
- Flexible insert routing – Post-Mic and Pre-EQ inserts for versatile signal flow options
- Switchable phantom power and polarity invert – adaptable for various microphones and recording setups
- Made in the U.S.A. – premium build quality and craftsmanship
Product information "AEA RPQ3 "
The AEA Ribbon Mics RPQ3 is a premium 2-channel microphone preamp and equalizer engineered to deliver exceptional performance with ribbon, dynamic, and condenser microphones. Designed around AEA’s third-generation circuitry, it provides ultra-high gain, extremely low noise, and outstanding transparency for professional recording applications.
Optimized especially for ribbon microphones, the RPQ3 features a unique 68kΩ high-impedance input stage that preserves the natural character of the microphone far more effectively than conventional preamps. This high input impedance helps maintain extended low-frequency depth, detailed transients, and an open, airy top-end response.
With its clean and natural sound signature, the RPQ3 is ideal for capturing vocals, acoustic instruments, orchestras, drums, and other demanding sound sources where accuracy and detail are essential. The preamp delivers high headroom and exceptional clarity, ensuring that even subtle nuances are reproduced faithfully.
In addition to its powerful gain structure, the RPQ3 includes flexible EQ shaping tools that allow engineers to fine-tune recordings without compromising the integrity of the original signal. Its intuitive controls make it equally suitable for studio tracking, mixing, and high-end broadcast environments.
Combining modern low-noise electronics with AEA’s extensive expertise in ribbon microphone technology, the RPQ3 has become a highly respected choice among recording engineers seeking maximum performance, transparency, and musicality from their microphones.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
AEA
Audio Engineering Associates
1029 N. Allen Ave. Pasadena, CA 91104
info@ribbonmics.com
https://aearibbonmics.com/
- Technical Data:
- Channels: 2
- Gain: 85 dB
- EQ: 2-band equalizer for bass and treble adjustment
- Insert: balanced insert per channel (pre-EQ)
- Switchable 48 V phantom power and phase reverse
- Equivalent noise level: -130 dBu (typical), 40 Ω source
- Equivalent noise level: -128 dBu (typical), 150 Ω source
- Maximum XLR output level: +27 dBu @ 600 Ω
- Input impedance with phantom power: 11.3 kΩ
- Input impedance without phantom power: 68 kΩ
- Dimensions (W × D × H): 482 × 228 × 457 mm
- Weight: 2 kg
