Audient iD44 MKII
Erleben Sie unvergleichliche Audioqualität mit dem Audient iD44 MKII: Verbesserte Performance, neue Features und elegantes Smoke-Grey-Finish.
Product information "Audient iD44 MKII"
Our most powerful audio interface just got better. The latest generation of iD44 sees improved audio performance, additional must-have features and a beautiful new smoke-grey finish. The addition of audio loop-back and a dual headphone output, combined with four Audient Console mic preamps, class-leading converters, ADAT expandability and balanced inserts – means iD44 delivers the audio performance of an Audient console straight to your desktop.
- 4 x Audient Console Mic Preamps
- Class Leading AD/DA Converters
- 2 x JFET Instrument Inputs
- 2 x Fully Balanced Inserts
- 2 x ADAT Inputs & Outputs
- 4 x Line Outputs
- 1 x Dual Headphone Output
- 1 x Headphone Output
- 1 x Word Clock Output
- 3 x User Defined Function Keys
- Dedicated Talkback, Dim and Cut Controls
- +48V, Pad, and HPF Switches

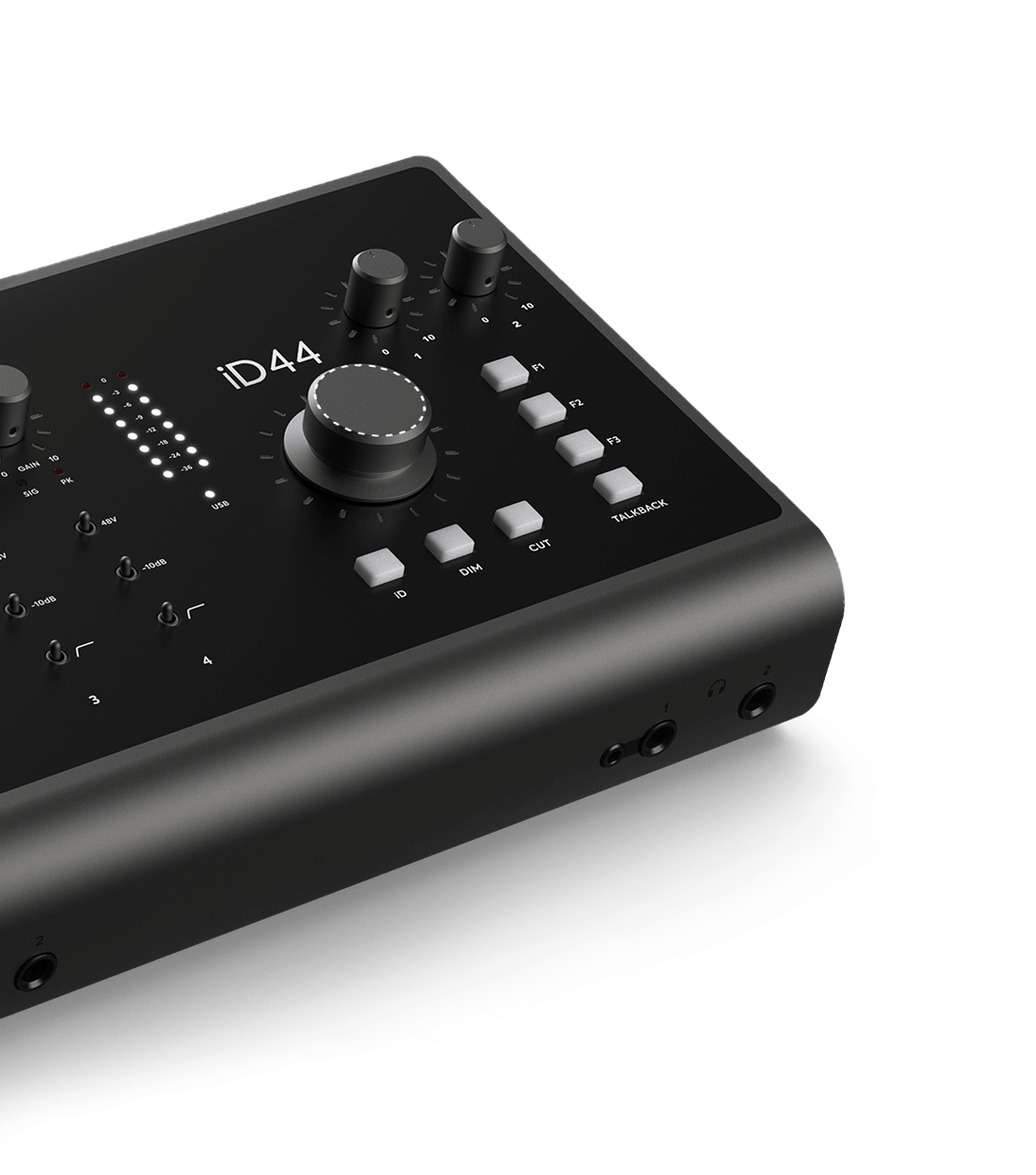

- ScrollControl
- Ultra-low Latency Software Mixer (Direct Monitoring)
- Audio Loop-back
- Power Switch
- True Phantom Power over USB
- Standalone Mode
- USB 2.0 Compliant
- 24bit/96kHz
- Mac & Windows Compatible
- All Metal Design
- Free Software + Plugins
Microphone Preamplifier
MIC GAIN: 0 to +60dB
LINE GAIN: -10 to +50dB
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: -126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu
INPUT IMPEDANCE (Mic): 3k Ω balanced
INPUT IMPEDANCE (Line): 10k Ω balanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to 65kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-90dB)
SNR:96dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
PAD: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
D.I / Instrument Input (Channel 1)
D.I GAIN: 0 to +60dB
MAXIMUM INPUT LEVEL: +10dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95dB A-weighted
1/4” JACK: Tip (Hot) & Sleeve (Shield)
Analogue to Digital Converter (ADC 1 & 2):
(Measured via Insert Returns under AES-17)
MAXIMUM INPUT LEVEL: +18dBu (0dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +18dBu = 0dBFS
INPUT IMPEDANCE: >10k Ω Balanced
CROSSTALK: <-118dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): <0.0003% (-112dB)
DYNAMIC RANGE: 120dB A-weighted
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter (DAC 1, 2, 3 & 4):
(Measured under AES-17 at line outputs 1, 2, 3 & 4)
MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE: <100 Ω
CROSSTALK: <-118dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 124dB un-weighted, 126dB A-weighted
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

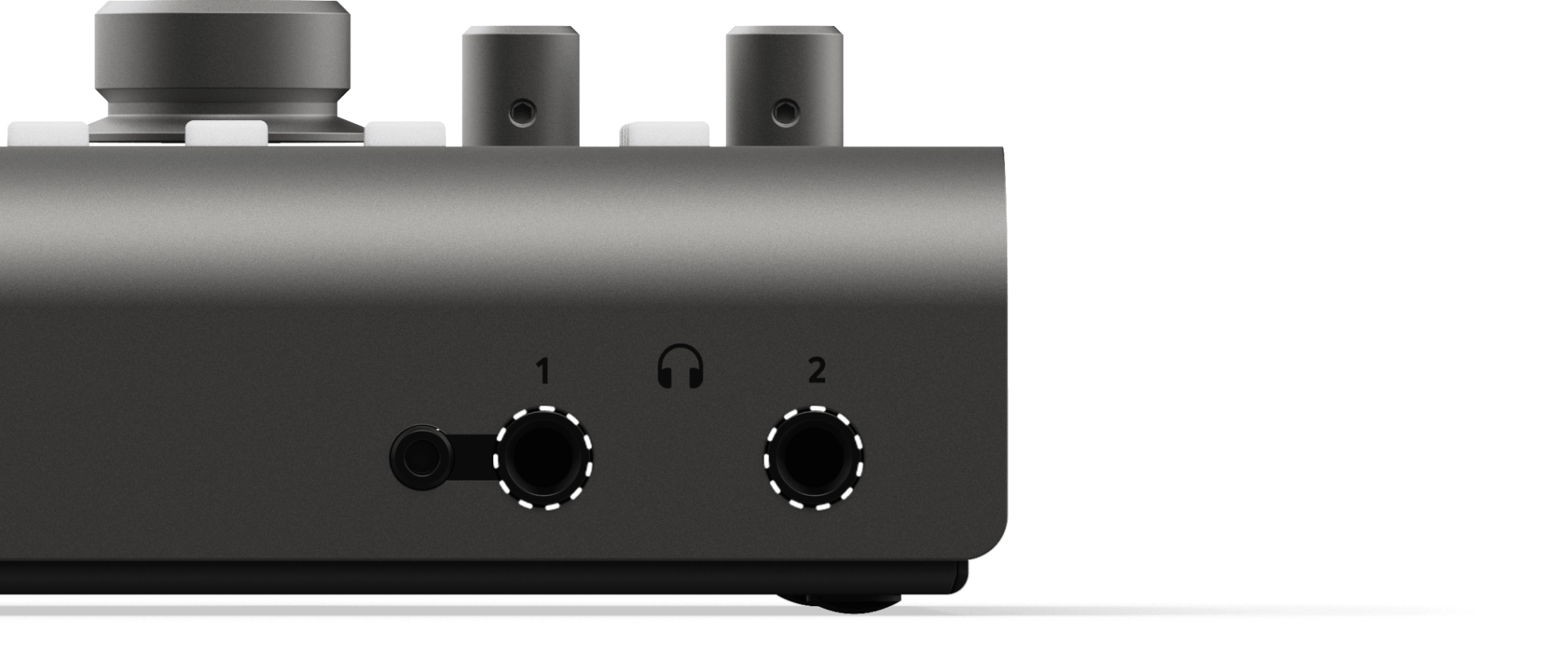

Headphone Outputs
(Measured under AES-17 at phones output)
MAXIMUM OUTPUT LEVEL: +14dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE: <50 Ω unbalanced
CROSSTALK: <-110dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2
CROSSTALK: -115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 121dB un-weighted, 124dB A-weighted
MAX LEVEL INTO 30ohms: +10.2dBu 0.002% THD+N Power: 210mW
MAX LEVEL INTO 60ohms: +14.2dBu 0.001% THD+N Power: 54mW
MAX LEVEL INTO 600ohms: +14.2dBu 0.001% THD+N Power: 54mW
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital Input
DAT 16 CHANNELS: 44.1kHz to 48.0kHz
DAT 8 CHANNELS (SMUX): 88.2kHz to 96.0kHz
STEREO S/PDIF: 44.1kHz to 96.0kHz
Digital Output
ADAT 16 CHANNELS: 44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX): 88.2kHz to 96.0kHz
STEREO S/PDIF: 44.1kHz to 96.0kHz
USB2.0 High Speed
No. of INPUT CHANNELS 20: 20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24: 24 (8 Analogue, 16 Digital)
CONNECTOR: USB Type-C
INCLUDED CABLES: 1.5m USB 2.0 Type-C to USB Type-C, 1.5m USB 2.0 Type-C to USB Type-A
DSP Mixer Latency – ROUND TRIP (in-to-out)
44.1kHz 0.677ms
48.0kHz 0.625ms
88.2kHz 0.354ms
96.0kHz 0.323ms

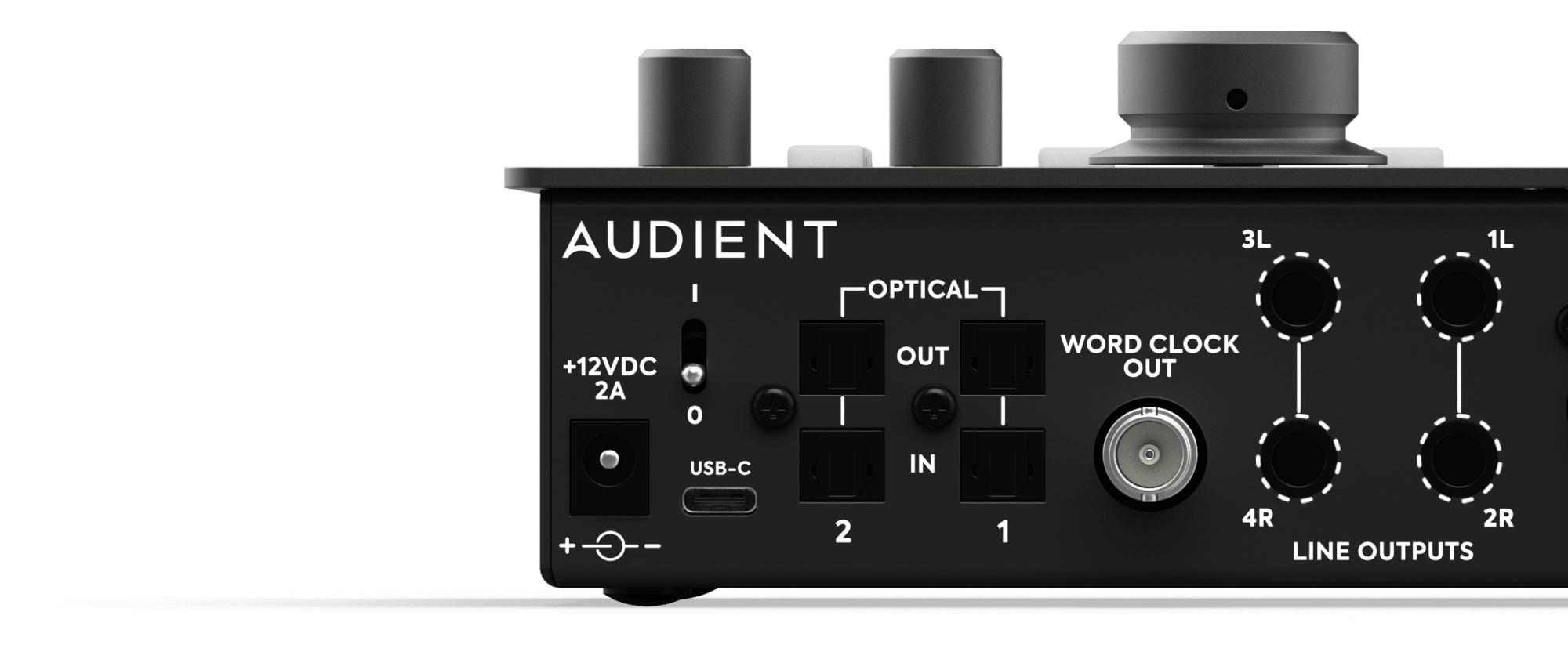

Word Clock Output
WORD CLOCK OUTPUT: 44.1kHz to 96kHz
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Audient
Audient Ltd
Aspect House Herriard RG252PN
support@audient.com
https://audient.com/
Sonic Sales GmbH
Liebigstr. 24
33803 Steinhagen
info@sonic-sales.de
https://www.sonic-sales.de/
MIKROFONVORVERSTÄRKER:(measured to insert send)
MIC GAIN: 0 to +60 dB
LINE GAIN: -10 to +50 dB
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu (+28dBu with pad)
INPUT IMPEDANCE (Mic): >3kΩ Balanced
INPUT IMPEDANCE (Line): >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 65kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-96dBu)
SNR: 96dB
Pad: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I (Kanal 1):
(measured to insert send)
D.I GAIN: -0 to +60 dB
MAXIMUM INPUT LEVEL: +10dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
EINFÜGEN SENDEN (Mic Pre Out):
MAXIMUM OUTPUT LEVEL: +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
ADC LINE INPUTS (Einfügen von Returns):
(measured at optical output under AES-17)
MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUT IMPEDANCE: >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 121dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL-ANALOG-WANDLER (1-4):
(measured from optical input under AES-17)
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -118dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 126dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
KOPFHÖRER-AUSGANG (5&6):
(measured from optical input under AES-17)
MAXIMUM OUTPUT LEVEL: +14dBu
MIC GAIN: 0 to +60 dB
LINE GAIN: -10 to +50 dB
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu (+28dBu with pad)
INPUT IMPEDANCE (Mic): >3kΩ Balanced
INPUT IMPEDANCE (Line): >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 65kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-96dBu)
SNR: 96dB
Pad: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I (Kanal 1):
(measured to insert send)
D.I GAIN: -0 to +60 dB
MAXIMUM INPUT LEVEL: +10dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
EINFÜGEN SENDEN (Mic Pre Out):
MAXIMUM OUTPUT LEVEL: +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
ADC LINE INPUTS (Einfügen von Returns):
(measured at optical output under AES-17)
MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUT IMPEDANCE: >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 121dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL-ANALOG-WANDLER (1-4):
(measured from optical input under AES-17)
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -118dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 126dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
KOPFHÖRER-AUSGANG (5&6):
(measured from optical input under AES-17)
MAXIMUM OUTPUT LEVEL: +14dBu
