BAE Audio 1272
Das BAE Audio 1272 Modul ist handverdrahtet für originale Neve®-Konsolen. Erleben Sie präzise Qualität, die BAE ausmacht. Jetzt entdecken!
Description
Product information "BAE Audio 1272"

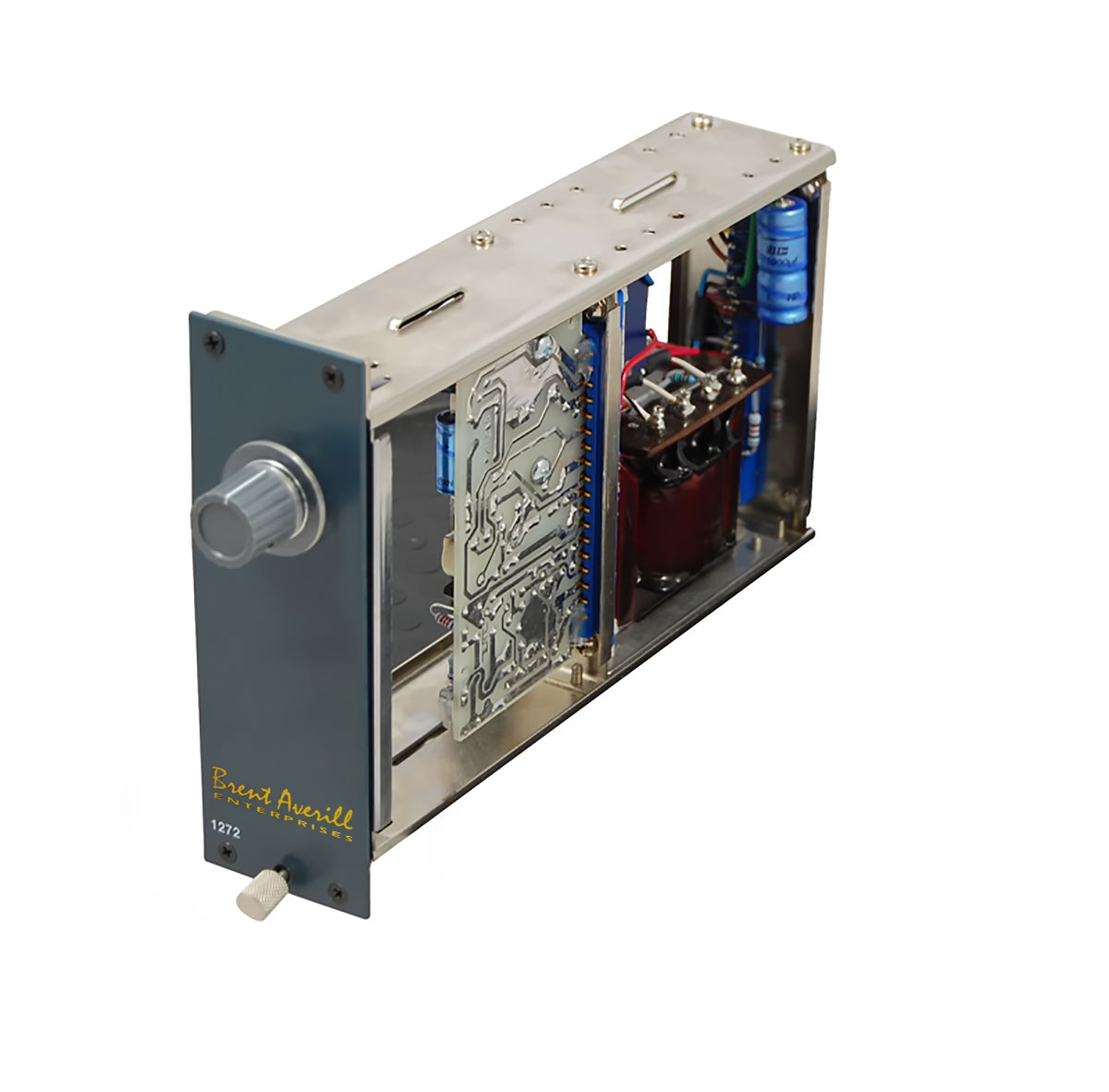

The 1272 module made by BAE is built to specifications to be used in original Neve® consoles.
- Built to specifications for Neve® consoles.
- The same hand-wired construction that BAE is known for.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
BAE
BAE Audio
7421 Laurel Canyon Blvd, North Hollywood, CA 91605
https://www.baeaudio.com/
Tech-Info
Frequency Response
+/- 0.5dB 20Hz-20kHz
Frequency Response
+/- 0.5dB 20Hz-20kHz
Mic Input Impedance
1200 or 300 ohms
Output Impedance
50 ohms
Common Mode Rejection Ratio
100dB min @ 60Hz
Maximum Output Level
+27.4 dBu @ 600Ω
Power Requirements
80mA @24VDC
Gain
39dB External Gain Optional
Equivalent Input Noise
Better than -85dBu
Weight
4.25 LBS / 1.93 KG
Dimensions (in Inches)
5.25W x 1.8L x 8.5D
