Barefoot Sound Footprint 03

€2,419.00*

Prices incl. VAT plus shipping costs

Availability: Please contact us in urgent cases.

Product information "Barefoot Sound Footprint 03"

Barefoot Sound celebrates a new milestone in the prestigious Footprint series with the latest generation monitor “Barefoot Sound Footprint FP-03”. Perfectly suited for smaller rooms or mobile solutions, the Barefoot Sound Footprint FP-03 combines the exceptional sound quality and elegant design of its predecessors in a compact format, at an extremely competitive price.

Safety Warnings:	Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

Barefoot Sound

1710 NW Upshur St, Portland, OR 97209, United States

questions@barefootsound.com

https://barefootsound.com/

ES-ProAudio

Narzissenstr.9, 85055 Ingolstadt

contact@es-proaudio.de

All products

Description:	Tri-amplified 3-way studio monitor with MEME™ Technology
Controls:	Input level stepped attenuator, MEME™ voice select

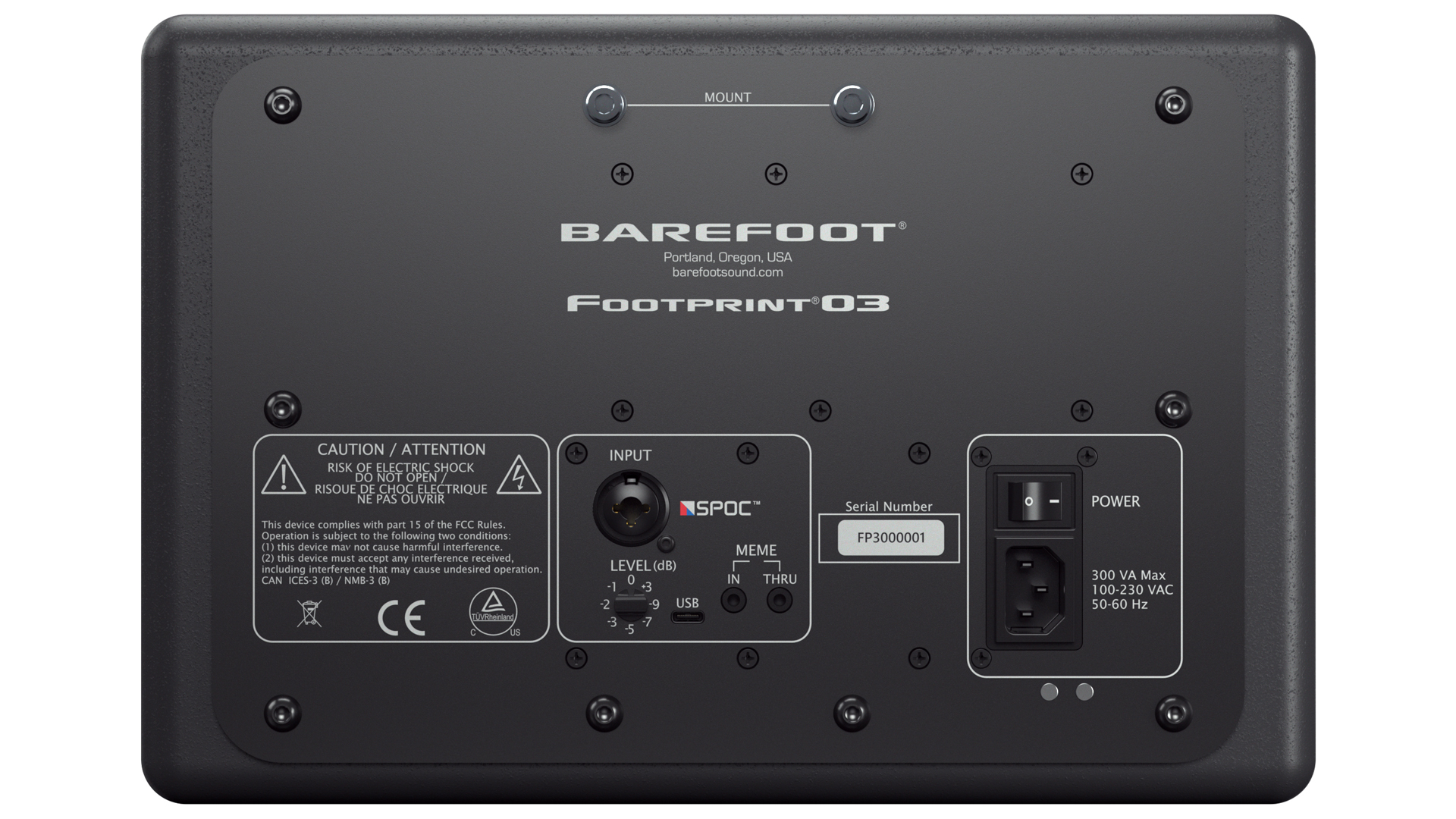

Analog Input:	XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground Input Impedance = 20k Ohms Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital Conversion:	Word Length: 28-bit (56-bit High Precision) Sample Rate: 96 kHz Signal/Noise ≥ 100 dB
Frequency Response:	45 Hz–40 kHz (+/-3 dB), 50 Hz–22 kHz (+/- 1 dB )
Bass Response:	-3 dB @ 46 Hz Q = 0.707 Slope = 18 dB/octave
MAX SPL:	Continuous 101 dB
Cabinet:	10.5 liters total internal volume Solid aluminum baffle plate Polyurethane acoustic damping throughout
Crossover Frequencies:	400 / 3900 Hz (Active crossover between drivers)
Tweeter:	1″ ring radiator, low distortion motor, rear waveguide chamber. Amplifier: 60W
Midrange:	3.5″ aluminum cone, Low distortion motor +/- 3.5 mm linear excursion Amplifier: 100W
Woofers:	6.5″ aluminum cone with low distortion motor +/- 9.5 mm linear excursion. Amplifier: 100W
HF Amplifier:	60W
MF Amplifier:	100W
LF Amplifier:	100W
Power:	Mains Voltage Input: 85 VAC to 265 VAC universal Idle Power Consumption = 12W Maximum Power Consumption = 340W
Weight:	Speaker: 17.9 lbs each (8.1 kg)
Dimensions HxWxD:	9″ x 13.25″ x 9.25″ (229 x 337 x 235 mm)
