Product information "CB Electronics XP-RELAY32X 32 Input x 32 Output (UPGRADABLE TO 64 x 64)"

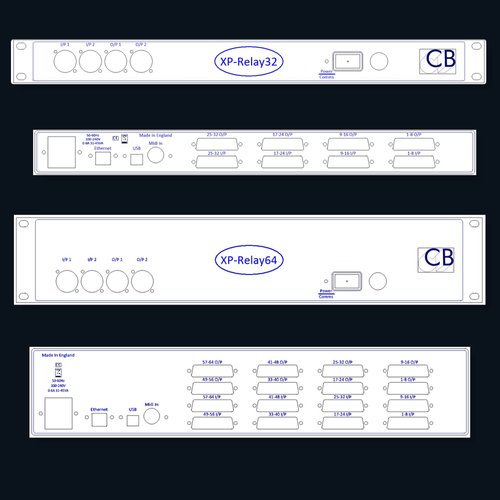

XP-Relay32 (64 Point) 32 X 32 (DB25) IN 1U RACK



The XP-Relay32/32X/64 is a state-of-the-art, software-controlled relay patchbay for professional audio studios. It offers pristine, relay-based signal routing with no degradation, managed via the intuitive XPatch4 App (Windows/macOS). Features include one-click switching between setups (e.g., tracking/mixing), A/B comparisons, complex routings, and recallable presets for streamlined workflows. With silent, fanless operation and scalable I/O (up to 64 channels via DB25, plus front XLR/TRS), it integrates seamlessly into large studio environments. XP-Relay redefines patchbays by merging analog relay precision with powerful software control.
Safety Warnings: Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

CB Electronics

CB Electronics

Loddonside, Lands End House Beggars Hill Road , Charvil, Berks, RG10 0UD, United Kingdom

https://www.cbelectronics.co.uk/

All products

• Straight wire performance, relay-based, zero electronics in the signal path
• Sealed relays are more reliable than open patchbay contacts
• Suitable for low or high level signals, including mic, line, control voltage, MIDI, and timecode
• Phantom power pass-through
• Integration with XPatch4 control software
• Can be used standalone with up to 128 snapshots
• Combine with up to 4 XP-Relay or XPatch units for larger systems
• Connection via USB or Ethernet
• 5-pin DIN MIDI input
• 2 XLR/TRS combo inputs and XLR outputs on the front panel for auditioning equipment
