Empirical Labs EL8S
- Stereo pair of professional compressors
- Custom-designed gain control circuit for warm, vintage sound
- Eight distinctive compression curves including 1:1, Nuke, and 10:1 Opto
- Different curves use unique circuitry for varied compression behavior
- Three signal-coloring modes for harmonic distortion without compression
- Distort 2 emphasizes tube-like 2nd-order harmonics
- Distort 3 emphasizes 3rd-order harmonics for tape-like character
- Two high-pass filters, one in audio path, one in detector path
- Factory-matched stereo pair with included interconnection cables
- Suitable for both studio and live applications
Product information "Empirical Labs EL8S"
The Distressor EL8-S from Empirical Labs is a professional stereo compressor pair designed for studio and live applications. It delivers warm, vintage-inspired sound through a custom-designed gain control circuit, while offering a wide range of compression curves and flexible signal shaping.
All eight curves are distinctive, from the 1:1 mode that adds subtle harmonic warmth without compression, to the Nuke setting, a brick-wall limiter ideal for live drum room microphones. Certain curves use different circuitry, effectively acting as unique compressors, while the 10:1 Opto ratio employs separate detector circuitry to emulate classic light-controlled devices such as the LA-2A.
The Distressor also includes three signal-coloring modes, allowing harmonic distortion without compression. Distort 2 emphasizes tube-like 2nd-order harmonics, while Distort 3 highlights 3rd-order harmonics for a tape-like character. Two high-pass filters, one in the audio path and one in the detector path, help manage low-frequency energy that can cause pumping or breathing.

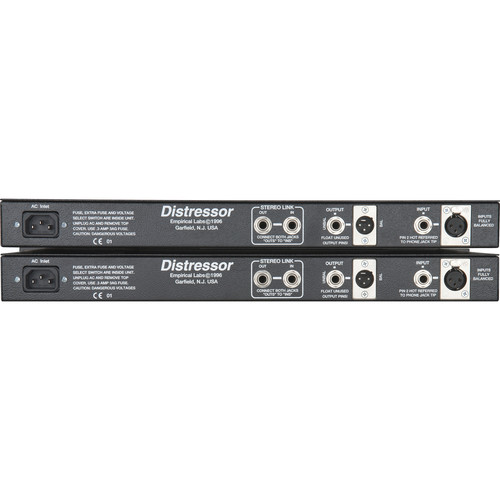

This stereo pair is factory-matched and includes cables for locking the units together, providing precise and reliable stereo operation.
Empirical Labs
Den für das Produkt verantwortlichen Wirtschaftsakteur finden Sie
auf dem Produkt, der Verpackung oder in einer dem Produkt beiliegenden
Unterlage.
Sound-Service Musikanlagen-Vertriebsgesellschaft mbH
Moriz-Seeler-Straße 3 12489 Berlin Germany
info@sound-service.eu
www.sound-service.eu
Frequency Response: 2 Hz to 160 kHz in clean audio mode (+0, -3 dB), response is shaped in distortion modes (Dist 2, Dist 3).
Dynamic Range: 110 dB from maximum output to minimum output in 1:1 mode
Signal to Noise: > 100 dB in distortion 3
Distortion Range: 0.02 to 20%
Outputs: DC coupled
Attack Time: 50 µs to 30 ms
Release Time: 0.05 to 3.5 seconds, up to 20 seconds in 10:1 Opto mode
Power Consumption: Typical: 10 W / Maximum: 14 W
