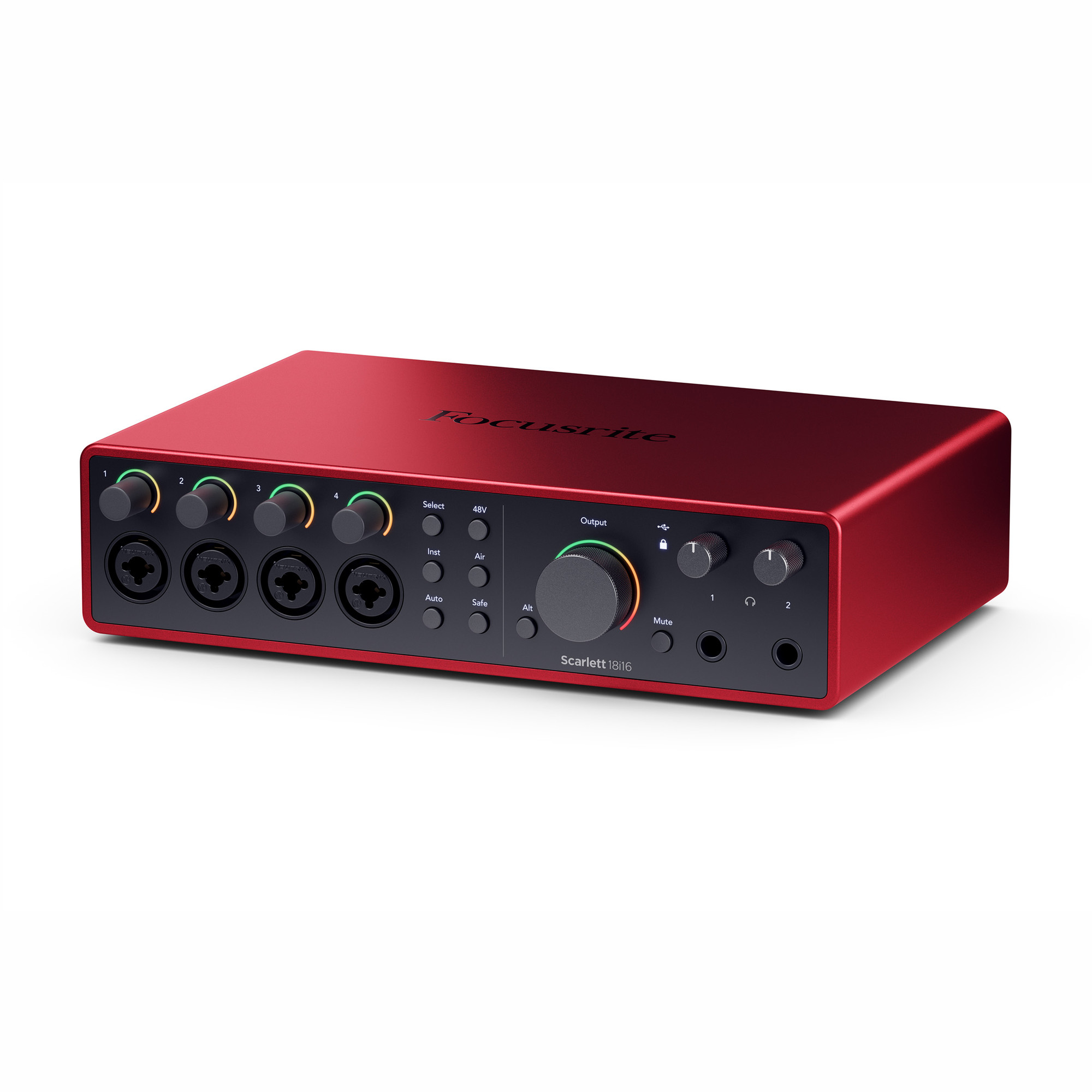

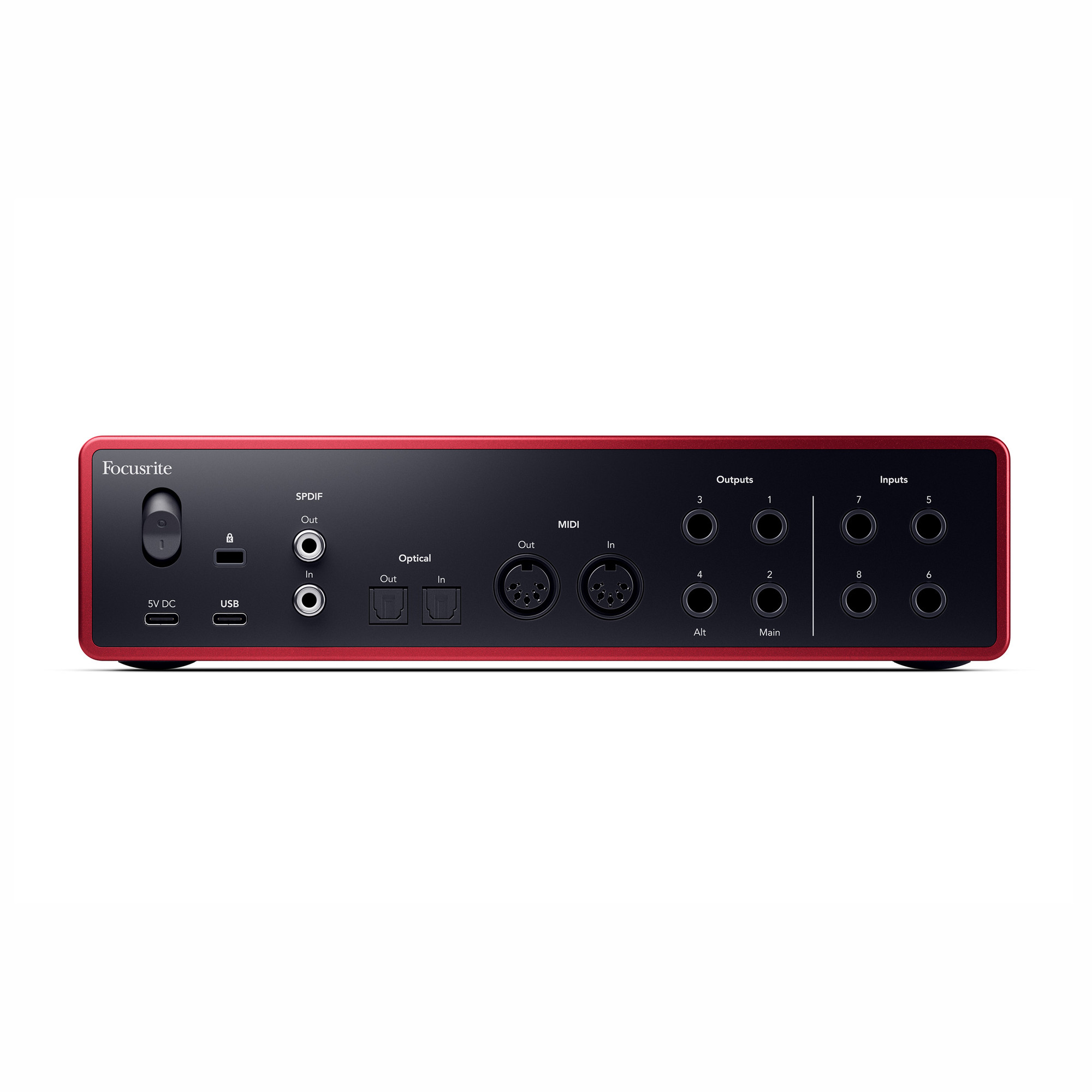

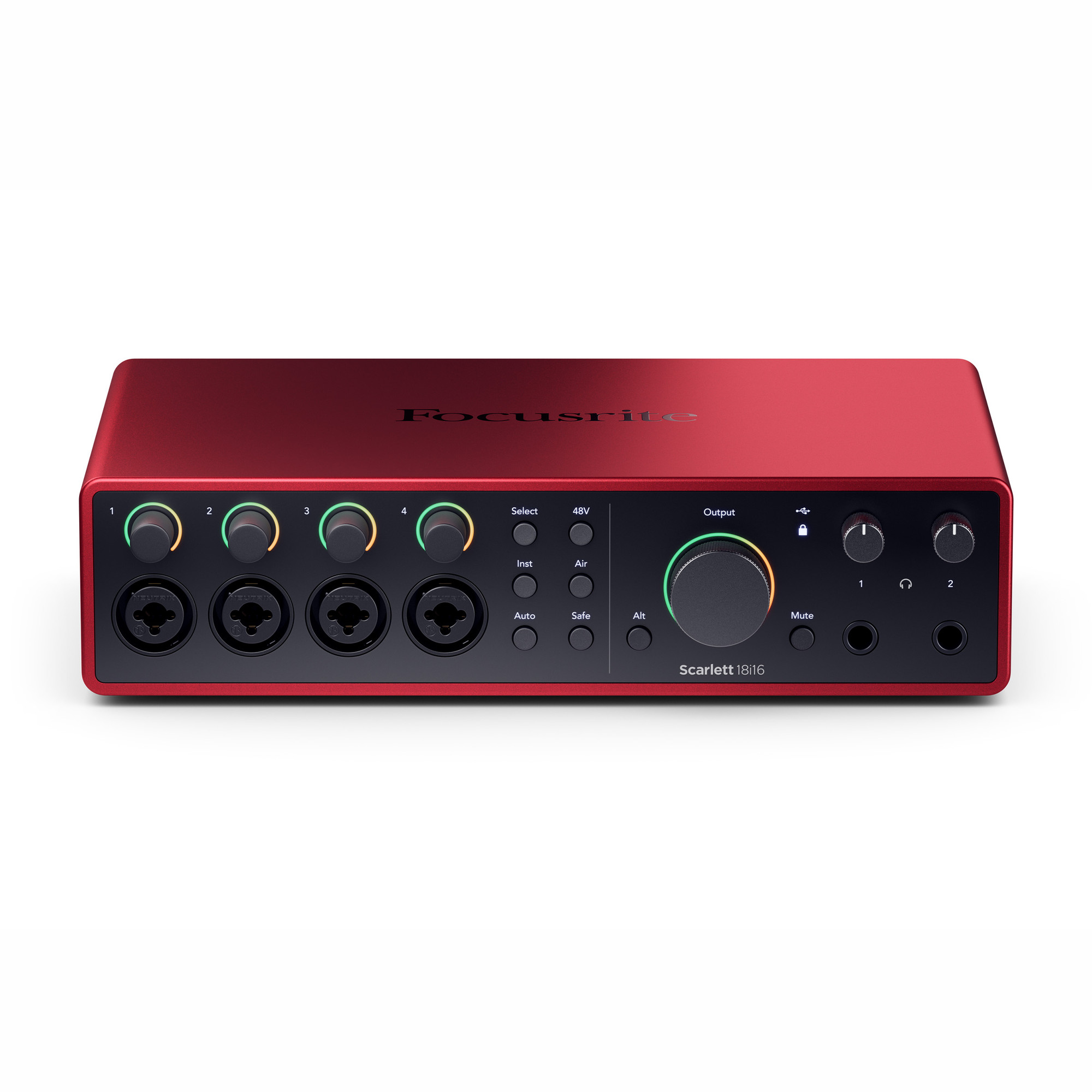

Focusrite Scarlett 18i16 4th Gen
Discover the Focusrite Scarlett 18i16 4th Gen, your complete compact studio hub. With ultra-low-noise mic preamps and Hi-Z, line inputs for pristine sound.
Features
- Four remote-controllable preamps
- 122dB dynamic range
- Auto Gain and Clip Safe
- Two Air modes
- Control remotely via mobile app
- Expandable I/O
Product information "Focusrite Scarlett 18i16 4th Gen"
Scarlett 18i16 is the complete compact studio hub for all your instruments and outboard gear. Perfect for producers, 18i16 is equipped with enough I/O to connect all your studio gear. Four of our most detailed ultra-low-noise mic preamps. Hi-Z, line, and MIDI connections for your guitars, keys, synths, grooveboxes, and controllers. With 18i16 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session. Expand your channel count using the S/PDIF or ADAT connections.
Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. The Hitmaker Expansion software bundle has all the tools you need to record, produce, and release your tracks. And the Focusrite Control 2 desktop and mobile apps enable you to remotely control your Scarlett anywhere in the studio. 18i16 can be powered directly from a computer's USB-C port (3A), so no extra power supply is needed.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Focusrite
Focusrite Audio Engineering Limited
Artisan, Hillbottom Road, High Wycombe, Buckinghamshire, HP12 4HJ, UK
https://focusrite.com
Specifications in detail:
- Number of Microphone Preamps: 4
- Phantom Power: Yes (Independent)
- Instrument Inputs: 2
- Line Inputs: 8
- Air Mode: Yes
- Auto Gain: Yes
- Clip Safe: Yes
- Line Outputs: 4
- Headphone Outputs: 2
- ADAT Inputs: 1
- ADAT Outputs: 1
- SPDIF Inputs: 1
- SPDIF Outputs: 1
- MIDI Inputs: 1
- MIDI Outputs: 1
- Loopback: Yes
- Connectivity: USB Type-C
- Protocol: USB 2.0
- Form Factor: Desktop
- Simultaneous I/O: 20 x 18 (including Loopback)
- A/D Resolution: 24-bit/192 kHz
- Bus Powered: Yes (3A)
Dimensions:
- Height: 60.5 mm
- Width: 240 mm
- Depth: 169.4 mm
- Weight: 1.494 kg
Supported sample rates:
- 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Microphone Inputs:
- Frequency Response: 20-20 kHz ± 0.06 dB
- Dynamic Range: 116 dB (A-Weighted)
- THD+N: -100 dB @ 8 dB gain
- Noise EIN: -127 dBu (A-Weighted)
- Maximum Input Level: 16 dBu
- Gain Range: 69 dB
- Impedance: 3 kΩ
Variable Line Inputs:
- Frequency Response: 20-20 kHz ± 0.05 dB
- Dynamic Range: 115.5 dB (A-Weighted)
- THD+N: -100 dB @ 8 dB gain
- Maximum Input Level: 22 dBu
- Gain Range: 69 dB
- Impedance: 24 kΩ
Fixed Line Inputs:
- Frequency Response: 20-20 kHz ± 0.02 dB
- Dynamic Range: 115.5 dB (A-Weighted)
- THD+N: -106 dB
- Maximum Input Level: 22 dBu
- Impedance: 48 kΩ
Instrument Inputs:
- Frequency Response: 20-20 kHz ± 0.05 dB
- Dynamic Range: 113 dB (A-Weighted)
- THD+N: -80 dB @ 8 dB gain
- Maximum Input Level: 12 dBu
- Gain Range: 62 dB
- Impedance: 1 MΩ
Line Outputs (Balanced):
- Frequency Response: 20-20 kHz ± 0.02 dB
- Dynamic Range: 122 dB (A-Weighted)
- THD+N: -112 dB
- Maximum Output Level: 16 dBu
- Impedance: 200 Ω
Headphone Outputs:
- Frequency Response: 20-20 kHz ± 0.1 dB @ 33Ω / 300Ω
- Dynamic Range: 112 dB @ 33Ω, 116 dB @ 300Ω
- THD+N: -100 dB @ 33Ω, -110 dB @ 300Ω
- Maximum Output Level: 5 dBu into 33Ω, 11 dBu into 300Ω
- Maximum Output Power: 57 mW into 33Ω, 27 mW into 300Ω
- Impedance: 11Ω
Analogue to Digital Converter:
- THD+N: -110 dB
- Dynamic Range: 120 dB
Digital to Analogue Converter:
- THD+N: -115 dB
- Dynamic Range: 130 dB (A-Weighted)
Power:
- USB: 3A
- External (Optional): 15W
What's in the box:
- Scarlett 18i16 audio interface
- 1.5m USB-C to USB-C cable
- USB-C to USB-A adaptor
- External power supply
