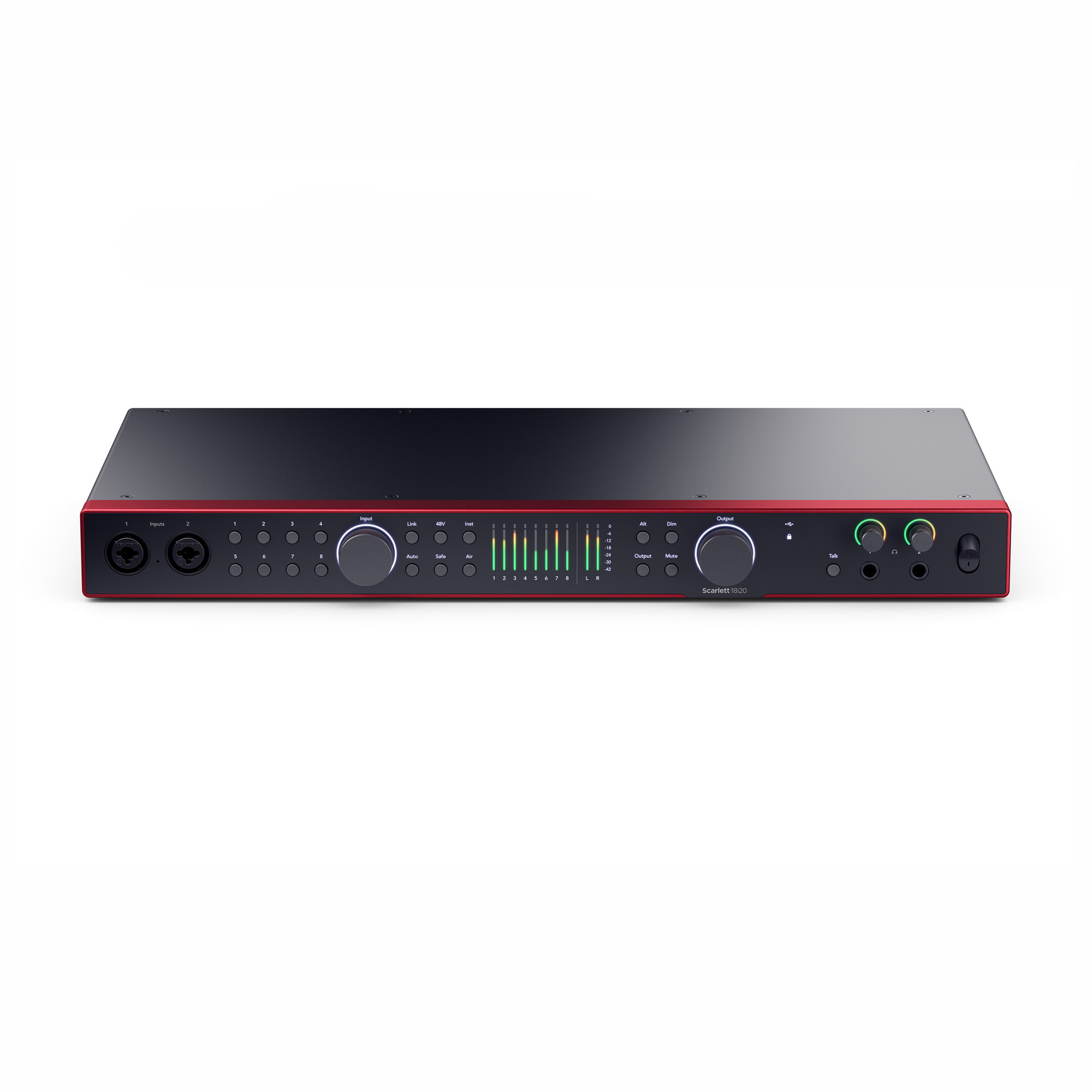

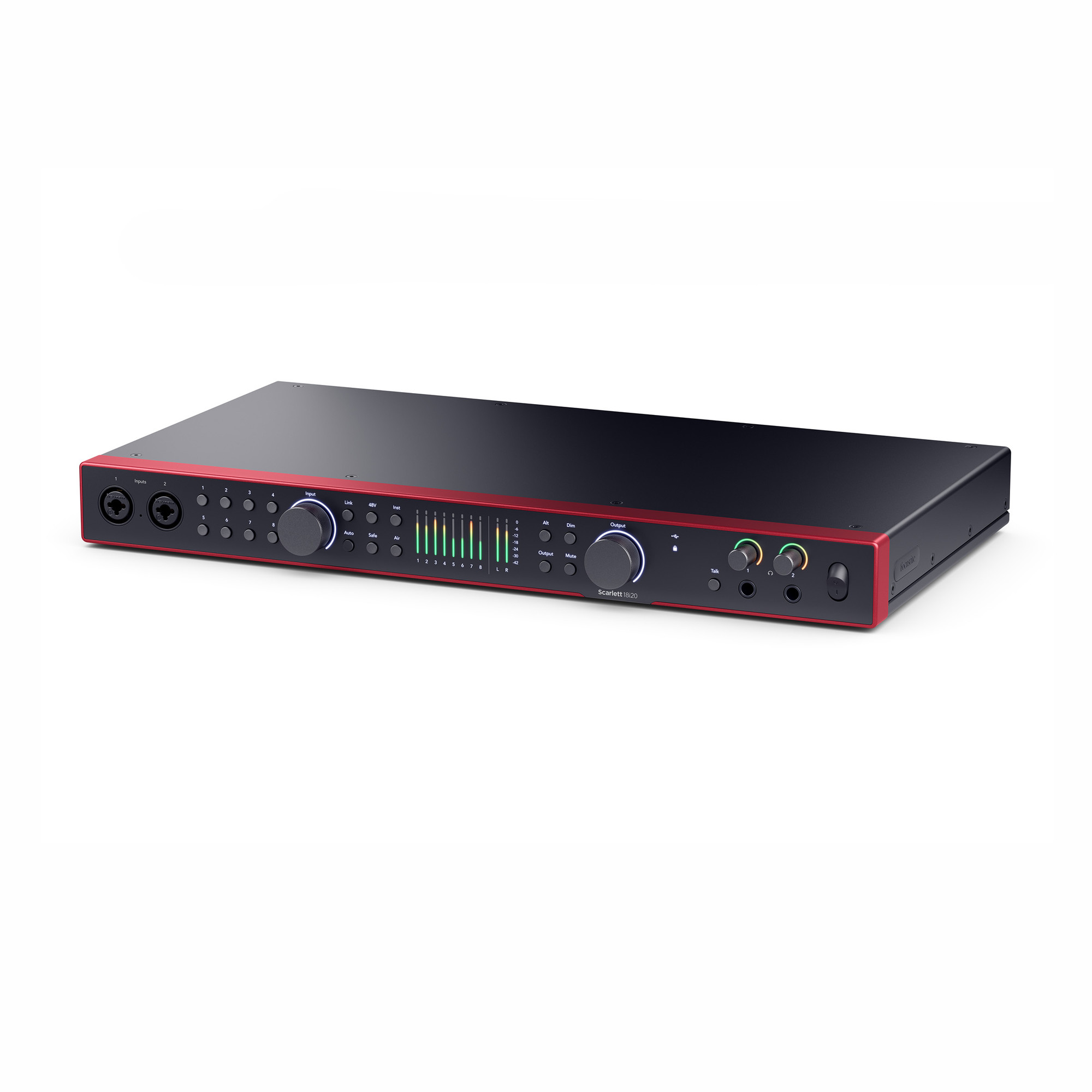

Focusrite Scarlett 18i20 4th Gen
Elevate your studio with the Focusrite Scarlett 18i20 4th Gen. This ultimate studio hub features 18 inputs and 20 outputs for top-quality music production.
Features
- Eight remote-controllable preamps
- 122dB dynamic range
- Auto Gain and Clip Safe
- Two Air modes
- Control remotely via mobile app
- Expandable I/O
Product information "Focusrite Scarlett 18i20 4th Gen"

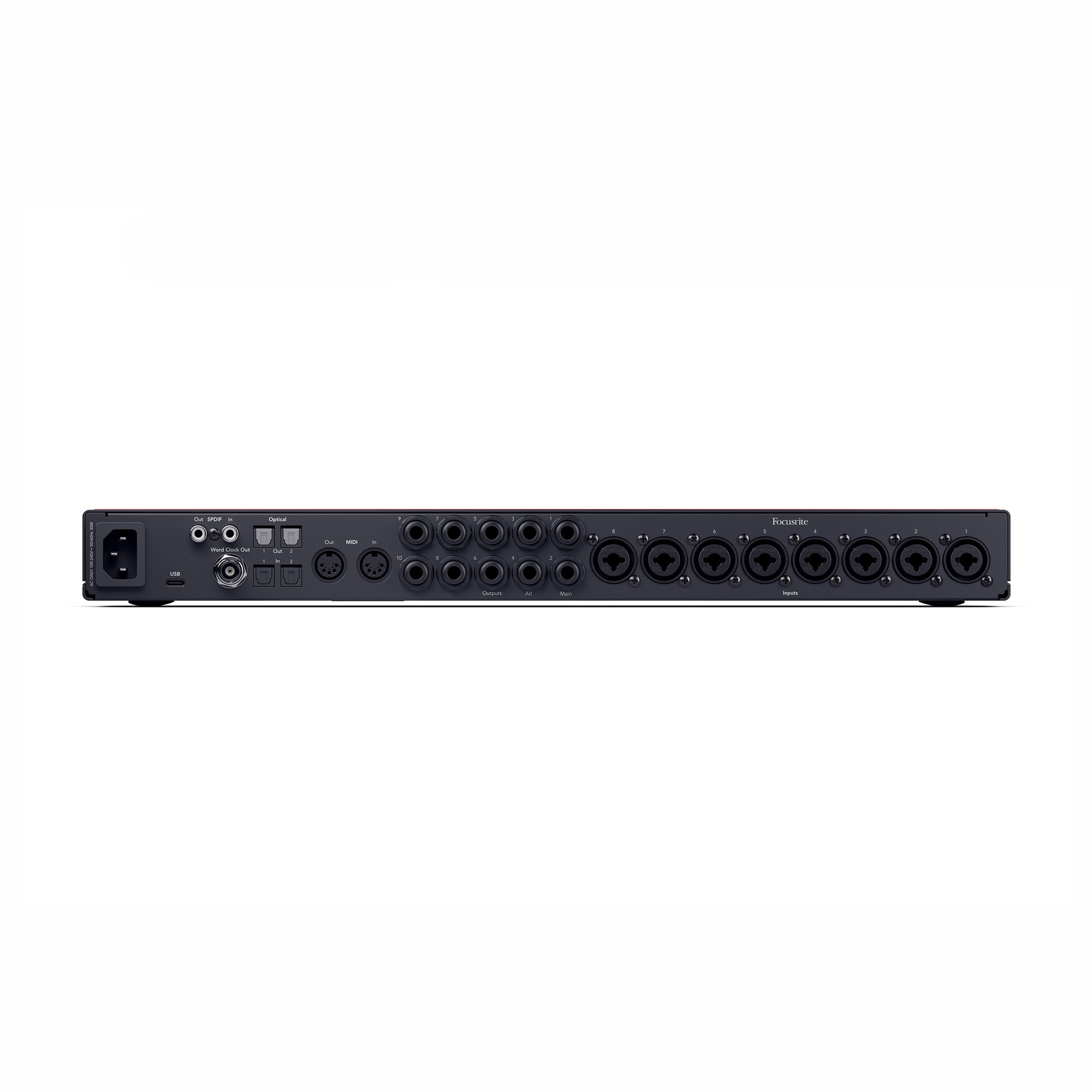

Scarlett 18i20 is the ultimate studio hub for demanding project studios. Fully equipped with 18 inputs and 20 outputs, including eight of our most detailed ultra-low-noise mic preamps, line, Hi-Z, and MIDI connections for your drums, vocals, guitars, keys, and synths. Focusrite Control 2 provides flexible routing and mixing options, allowing you to customise 18i20's independent outputs to suit the needs of any recording session. Expand and sync your setup with ADAT, S/PDIF, and Word Clock connections.
Air mode, with Presence and Harmonic Drive, brings the sound of big studio consoles to your recordings, while Auto Gain and Clip Safe ensure you never worry about levels. Low-latency monitoring, A/B speaker switching, and a built-in talkback mic are perfect for serious project studios. The Hitmaker Expansion software bundle has all the tools you need to record, produce, and release your tracks. And the Focusrite Control 2 desktop and mobile apps enable you to remotely control your Scarlett anywhere in the studio.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Focusrite
Focusrite Audio Engineering Limited
Artisan, Hillbottom Road, High Wycombe, Buckinghamshire, HP12 4HJ, UK
https://focusrite.com
Specifications in Detail
Overview
- Number of Microphone Preamps: 8
- Phantom Power: Yes (Independent)
- Instrument Inputs: 2
- Line Inputs: 8
- Air Mode: Yes
- Auto Gain: Yes
- Clip Safe: Yes
- Line Outputs: 10
- Headphone Outputs: 2
- ADAT Inputs: 2 (up to 8 channels at 96 kHz)
- ADAT Outputs: 2 (up to 8 channels at 96 kHz)
- SPDIF Inputs: 1
- SPDIF Outputs: 1
- MIDI Inputs: 1
- MIDI Outputs: 1
- Talkback: Yes
- Loopback: Yes
- Connectivity: USB Type-C
- Protocol: USB 2.0
- Form Factor: Desktop / Rack Mountable (1U)
- Simultaneous I/O: 20 x 24 (including Loopback)
- A/D Resolution: 24-bit/192 kHz
- Bus Powered: No
Dimensions
- Height: 46.55 mm
- Width: 259.73 mm
- Depth: 442 mm
- Weight: 3.304 kg
Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Microphone Inputs
- Frequency Response: 20-20 kHz ± 0.06 dB
- Dynamic Range: 116 dB (A-Weighted)
- THD+N: -100 dB @ 8 dB Gain
- Noise EIN: -127 dBu (A-Weighted)
- Maximum Input Level: 16 dBu
- Gain Range: 69 dB
- Impedance: 3 kΩ
Variable Line Inputs
- Frequency Response: 20-20 kHz ± 0.05 dB
- Dynamic Range: 115.5 dB (A-Weighted)
- THD+N: -100 dB @ 8 dB Gain
- Maximum Input Level: 22 dBu
- Gain Range: 69 dB
- Impedance: 24 kΩ
Fixed Line Inputs
- Frequency Response: 20-20 kHz ± 0.02 dB
- Dynamic Range: 115.5 dB (A-Weighted)
- THD+N: -106 dB
- Maximum Input Level: 22 dBu
- Impedance: 48 kΩ
Instrument Inputs
- Frequency Response: 20-20 kHz ± 0.05 dB
- Dynamic Range: 113 dB (A-Weighted)
- THD+N: -80 dB @ 8 dB Gain
- Maximum Input Level: 12 dBu
- Gain Range: 62 dB
- Impedance: 1 MΩ
Line Outputs (Balanced)
- Frequency Response: 20-20 kHz ± 0.02 dB
- Dynamic Range: 122 dB (A-Weighted)
- THD+N: -112 dB
- Maximum Output Level: 16 dBu
- Impedance: 200 Ω
Headphone Outputs
- Frequency Response: 20-20 kHz ± 0.1 dB @ 33 Ω / 300 Ω
- Dynamic Range: 112 dB @ 33 Ω, 116 dB @ 300 Ω
- THD+N: -100 dB @ 33 Ω (Minimum), -110 dB @ 300 Ω (Minimum)
- Maximum Output Level: 5 dBu into 33 Ω, 11 dBu into 300 Ω
- Maximum Output Power: 57 mW into 33 Ω, 27 mW into 300 Ω
- Impedance: 11 Ω
Analog to Digital Converter
- THD+N: -110 dB
- Dynamic Range: 120 dB
Digital to Analog Converter
- THD+N: -115 dB
- Dynamic Range: 130 dB (A-Weighted)
Power
- External: 30 W
What's in the Box
- Scarlett 18i20 audio interface
- 1.5m USB-C to USB-C cable
- USB-C to USB-A adaptor
- IEC power cable
