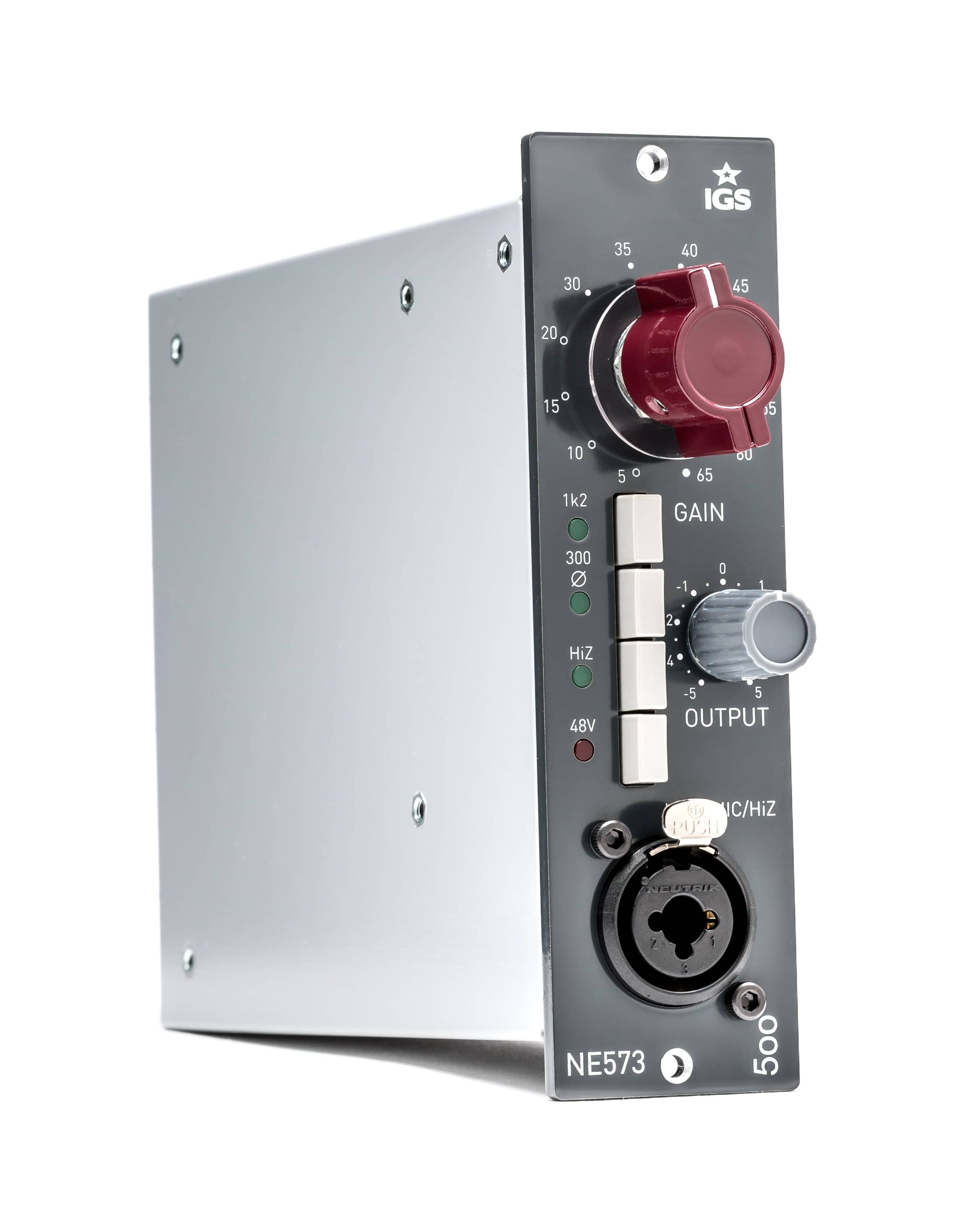

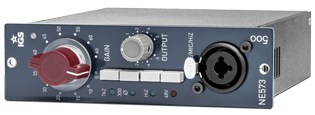

IGS Audio NE573
Features
- Classic Neve®-style 500 Series preamp with 24V power operation
- Carnhill transformers on input and output for rich analog tone
- Original Motorola transistor output stage for vintage warmth
- 41-step Grayhill gain control for precise settings
- Switchable input impedance for flexible microphone matching
- Buffered Hi-Z instrument input on the front panel
Description
Product information "IGS Audio NE573"
The IGS Audio NE573 is a 500 Series microphone preamp that faithfully recreates the iconic Neve® sound. Operating on 24 volts and built with Carnhill input and output transformers, original Motorola transistors, and Grayhill switches, it captures the authentic character of the golden age of analog recording. With switchable input impedance and a buffered Hi-Z instrument input, the NE573 is a versatile studio workhorse that delivers warmth, punch, and musical detail across any source.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Tech-Info
- Product Type: 500 Series Microphone Preamplifier
- Circuit Design: Pure Class A
- Format: 500 Series Module
-
Inputs:
- Microphone
- Line
- Hi-Z Instrument
- Gain Range: 5 dB to 65 dB
- Output Trim: ±5 dB
- Input Impedance: Switchable 300 / 1200 Ohm
- Phantom Power: +48V Switchable
- Phase Reverse: Yes
-
Transformers:
- Input Transformer
- Output Transformer
-
Components:
- Grayhill switches
- Motorola output transistor
- Operating Voltage: 24V
- Connector Type: XLR / 6.3 mm Combo Input
