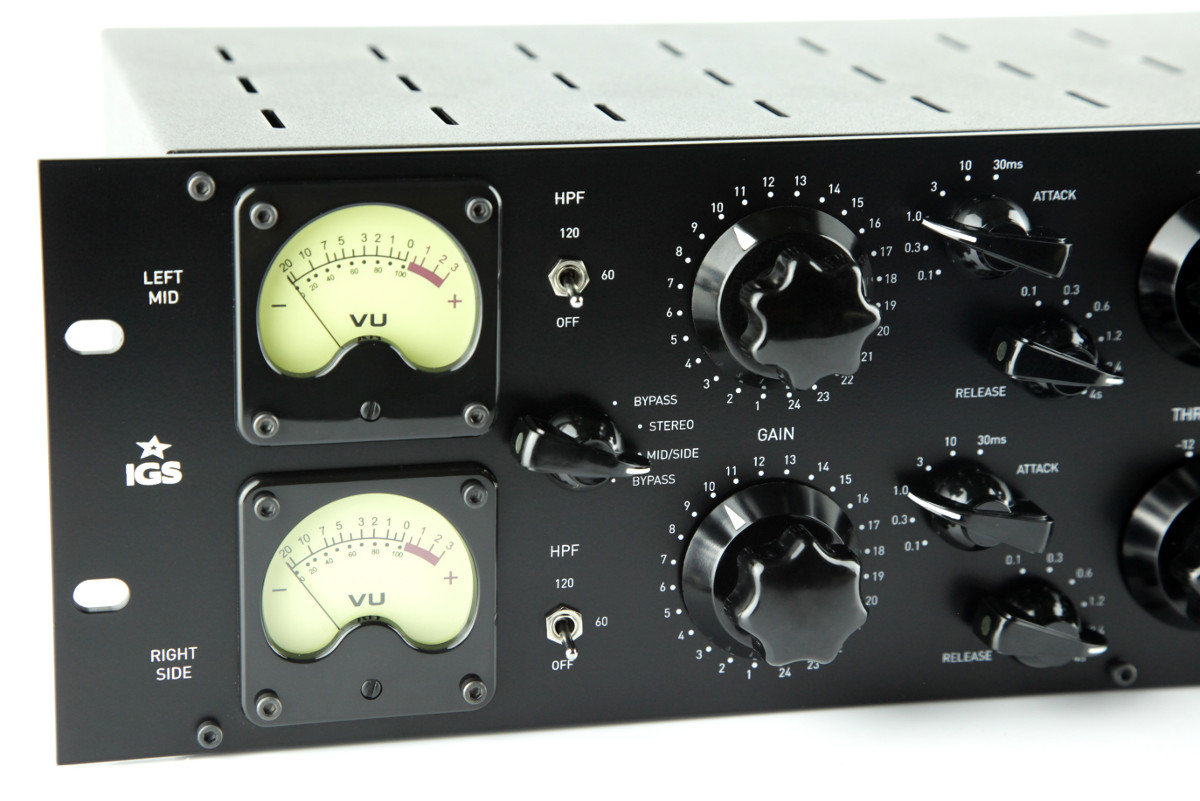

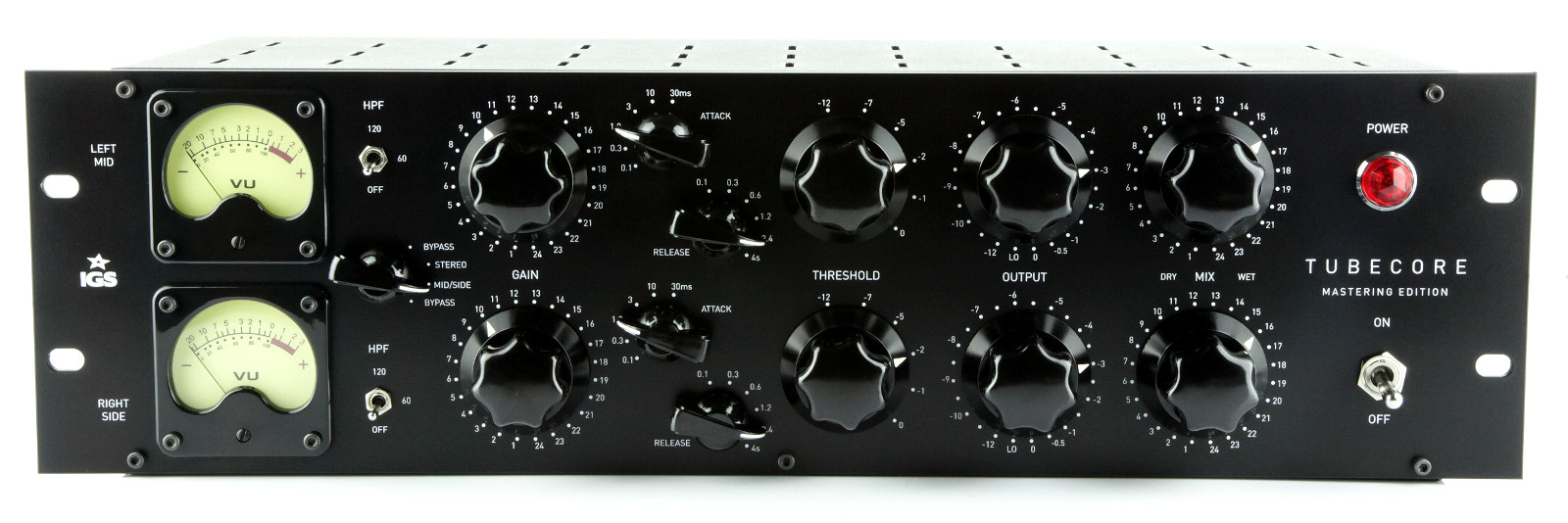

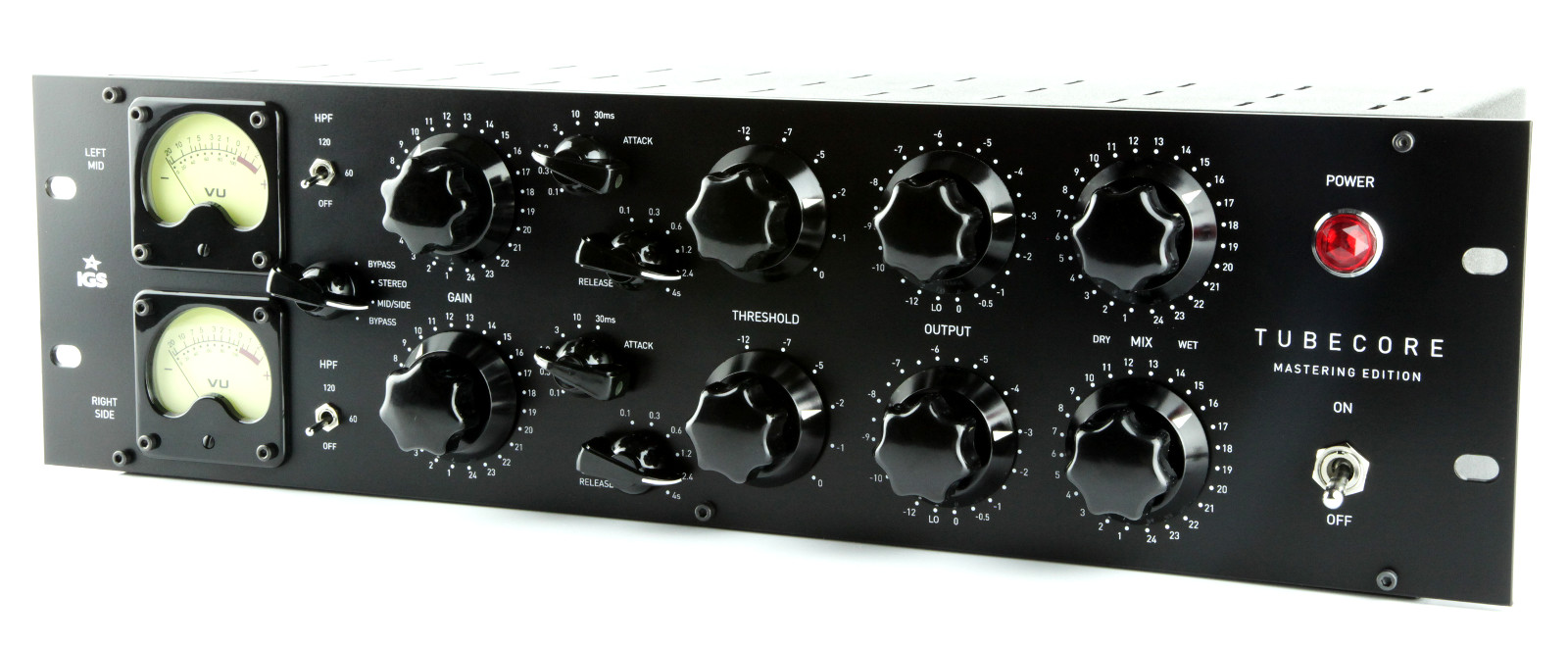

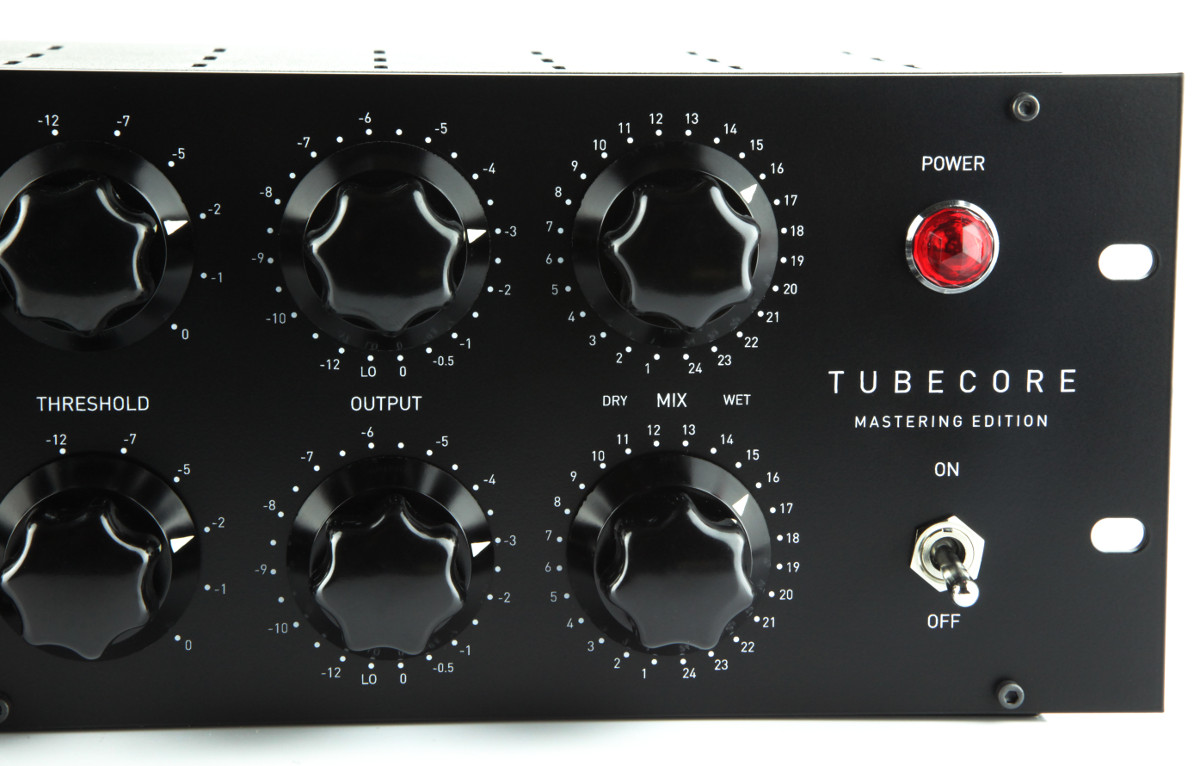

IGS Audio Tubecore 3U

IGS Audio Tubecore 3U

Product information "IGS Audio Tubecore 3U"

The structure is based on the Vari Mu solution, where compression is achieved using the "remote cut-off" or re-biasing of a vacuum tube. The major difference between the Tubecore and it's archetyps is that the construction is mounted on a double layer PCB instead of the point-to-point solution. Concentrating the circuit on the PCB reduces noise and stablizies the parameters. The Tubecore is a 2U unit. The audio path is fully symetric from input to output. The input and output are equiped with separating transformers. The mastering version has a single set of controls manipulating both channels.

Specification:

  • Fully simetric from In to Out
  • Precise analog scales
  • Hard-wire BYPASS switch
  • Potenciometer or stepped controls
  • Frequency response -0.2dB: 20Hz-20KHz
  • Releace: 0.2s - 1.2s
  • Attack: 20 - 100 ms
  • 5-step Threshold
  • Max. gain: 35dB
  • 6dB input Pad on front panel
  • "Link channels" switch
  • Ultra fast VU meters
  • XLR input/output
  • Input - Lundahl LL1540 transformer,
  • Output - Sowter 9745 transformer,
  • Internal power supply
  • 230V/110V Power option
  • Power Consumption: 44 Watts
  • Dimensions: 19" 2U, 230mm deep
  • Shipping weitght: 8 kilos
  • Outranks the best
