Lake People Phone-Amp G118
Experience high-fidelity audio with the Lake People Phone-Amp G118. This balanced headphone amplifier features a Mono/Stereo/Phase-Reverse switch, Pre-Gain control, and VU-Meter.
Features
- two balanced inputs (Input 1 und 2) via gold plated XLR sockets
- one Slave output, balanced via gold plated XLR. Here, the active input signal without attenuation can be found.
Product information "Lake People Phone-Amp G118"

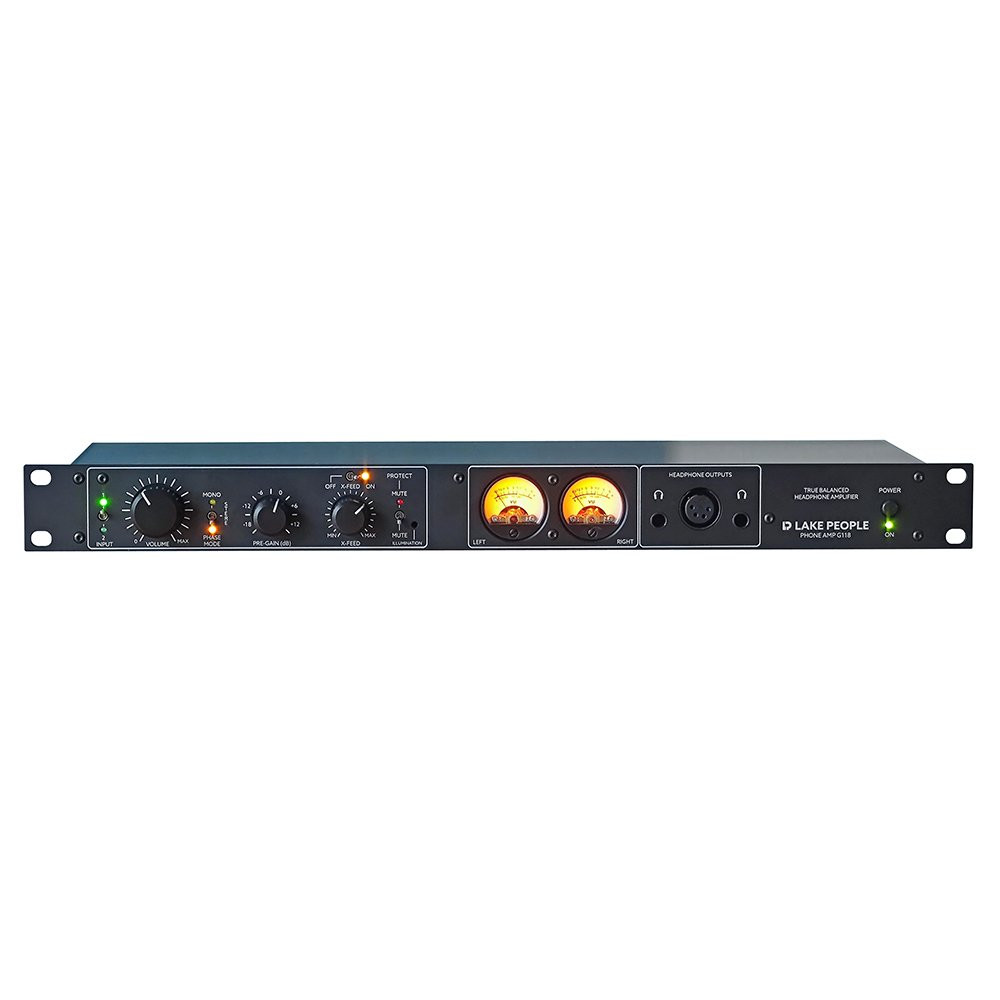

The Lake People PHONE-AMP G118 is a balanced headphone amplifier based on the circuits of
the approved and valued PHONE-AMP G111 but in a 19“, 1 U case. Besides the outstanding
reproduction qualities G118 offers a Mono / Stereo / Phase-Reverse switching, Pre-Gain on the
front panel, X-FEED and a VU-Meter for level control.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Lake People
Lake People electronic GmbH
Max-Stromeyer-Str. 116 78467 Konstanz
info@lake-people.de
https://www.lake-people.de
Technical Data PHONE-AMP G118
(all values RMS unweighted 10 Hz – 20 kHz):
| Inputs, Analogue, Stereo: | 2 x balanced, XLR, gold plated |
| Input Parameter: | 10 kOhm Impedance, max. +22 dBu |
| Frequency Range: | 5 Hz – 80 kHz (-0,5 dB) |
| Crosstalk: | < -100 dB @ 1 / 15 kHz |
| THD+N: | < -100 dB |
| Dynamic Range: | > 125 dB |
| Slave Outputs, Stereo: | 1 x balanced, XLR, gold plated |
| Output Parameter: | 1 Ohm Output Impedance, max. +26 dBu |
| Headphone Amp: | 2 x 1/4“ (6,3 mm), unbalanced, silver plated 1 x 4-pol XLR, balanced, gold plated |
| Headphone Amp Max. Output Level: | @ 1 kHz / < 0,1 % THD+N Both Channels driven |
| Power Supply: | 115 / 230 V AC, max. 15 VA |
| Case: | Stainless Steel |
| Front: | Aluminium, black anodized |
| Case Dimensions: | 19 x 1,75 x 6,5 “ (WxHxD) / 483 x 44 x 166 mm (BxHxT) |
| Overall Dimensions: | 19 x 1,75 x 7,4 “ (WxHxD) / 483 x 44 x 188 mm (BxHxT) |
| Unbalanced Outputs | RL (Ohm) Ua / V Pa / mW / Channel |
| 600 | 15,2 380 |
| 300 | 14,7 720 |
| 100 | 13,0 1700 |
| 50 | 9,7 1900 |
| 32 | 6,9 1500 |
| 16 | 3,5 750 |
| Balanced Outputs | RL (Ohm) Ua / V Pa / mW / Channel |
| 600 | 27,1 1200 |
| 300 | 26,3 2300 |
| 100 | 18,7 3500 |
| 50 | 10,5 2200 |
| 32 | 6,9 1500 |
| 16 | 3,4 720 |
