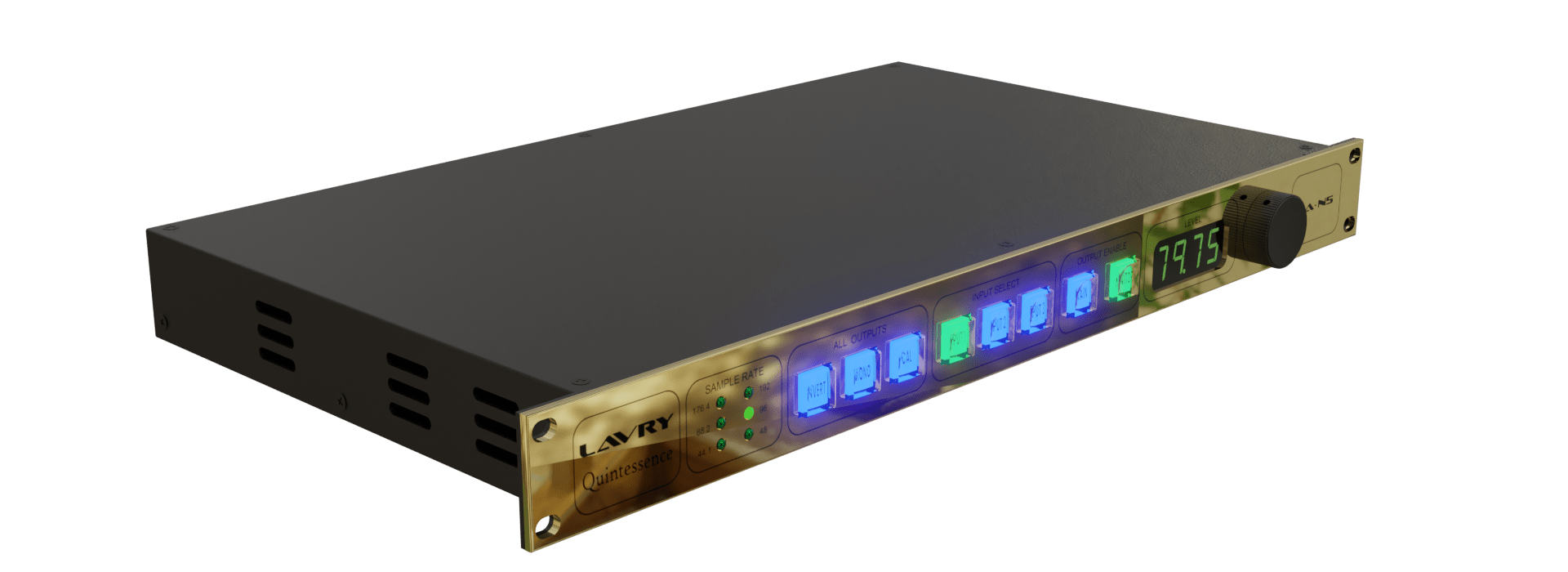

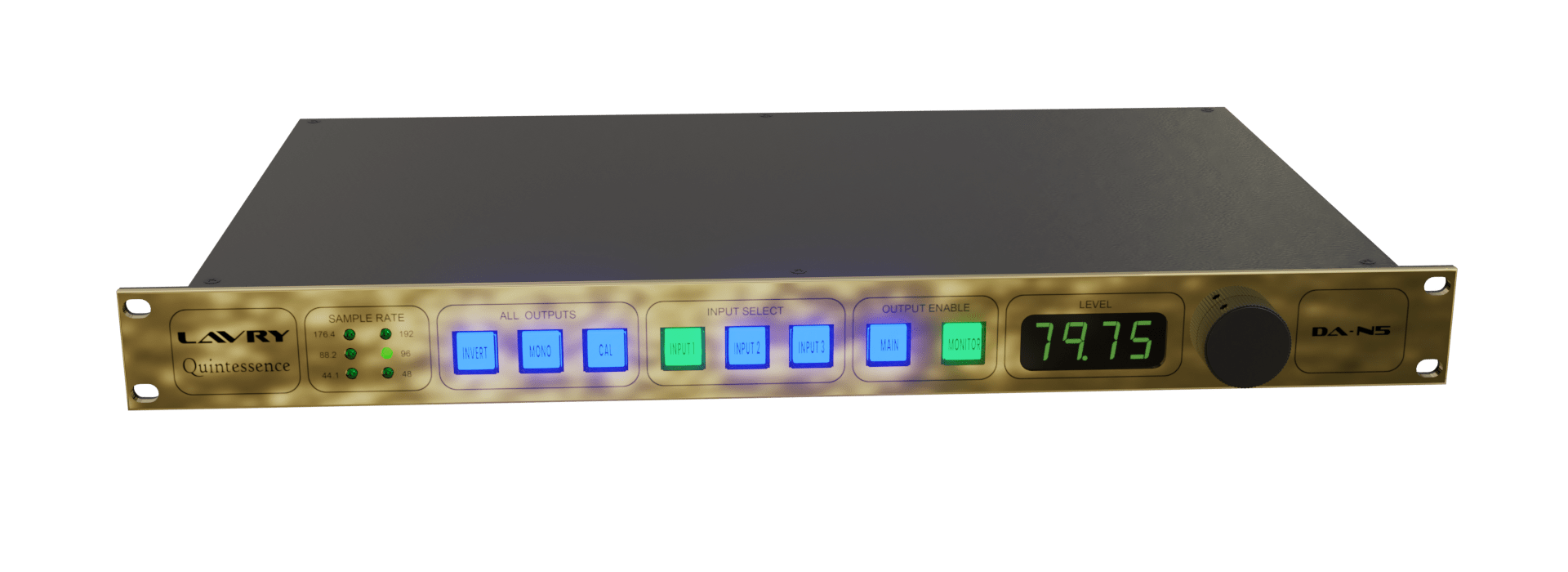

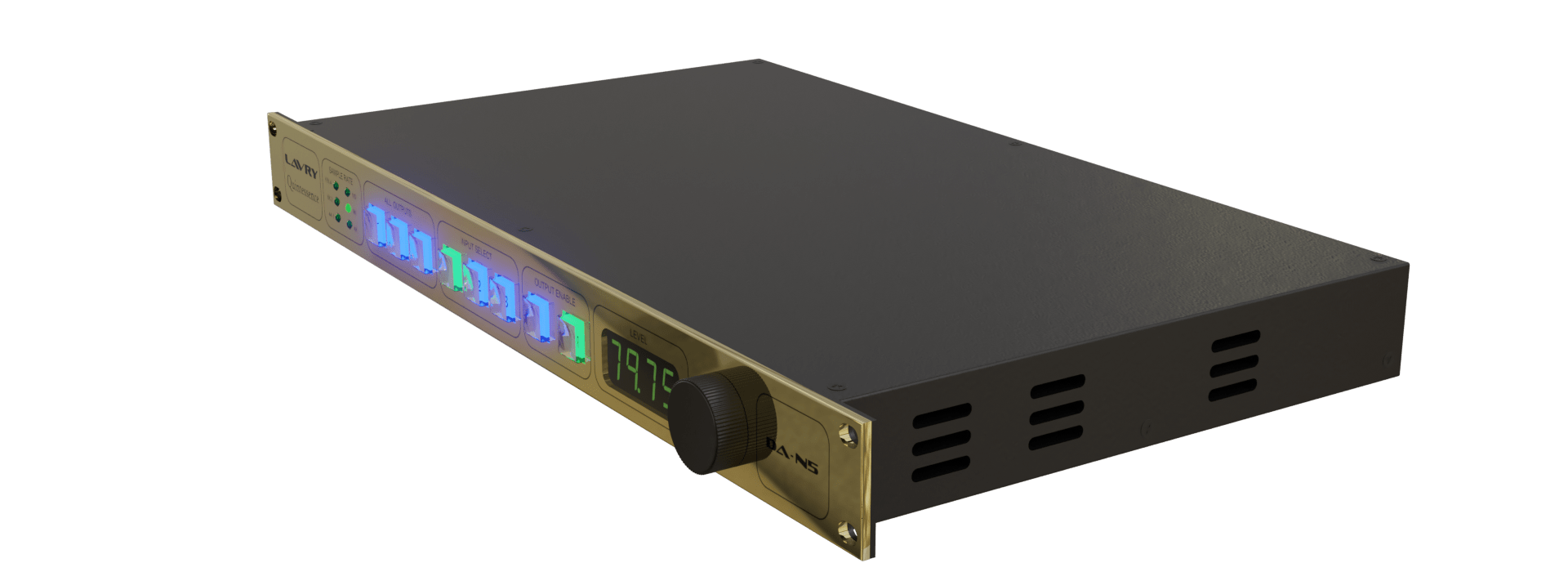

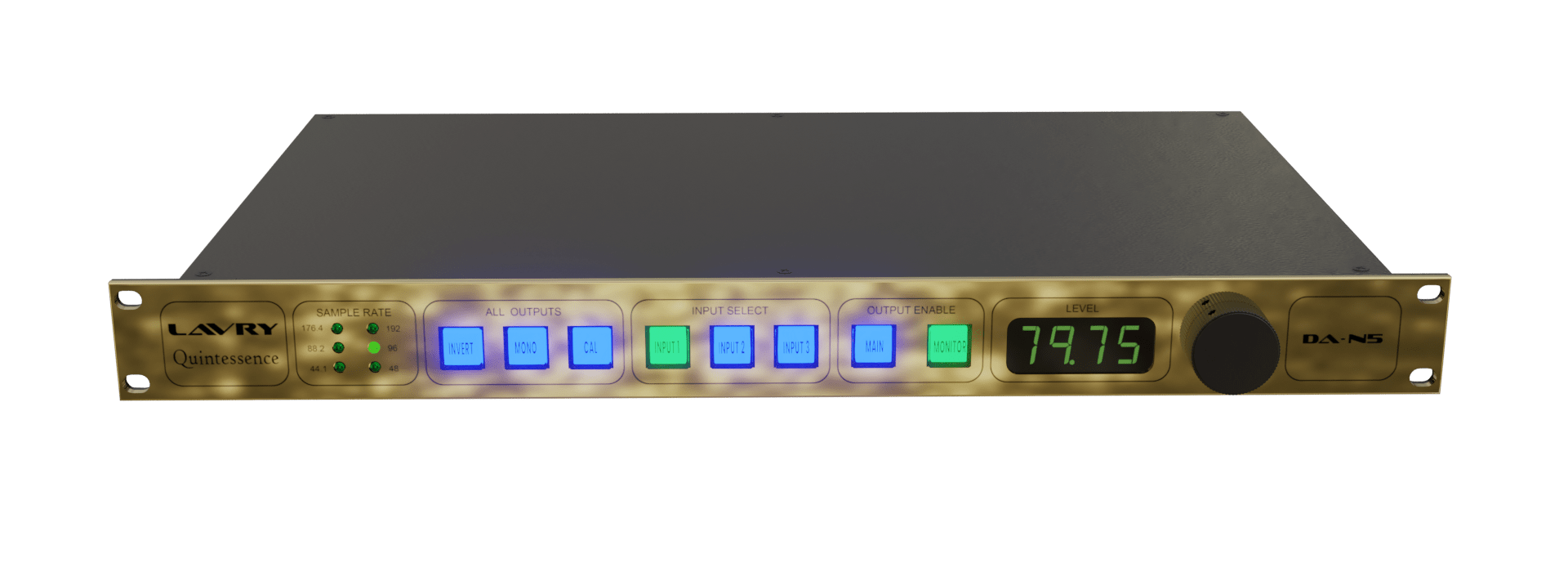

Lavry Engineering Quintessence
- Transparency and accuracy of a Lavry converter
- Three inputs: two AES and one SPDIF
- Main & Monitor XLR outputs
- Output range setting for +18 and +24 dBu peak level for each output
- Balanced/unbalanced setting for each output
- Monitor output with 80 dB analog volume range in 0.25 dB steps
- Volume setting memory for each input
- Output level calibration ±0.7 dB adjustable in 0.1 dB steps
- Mono function
- Polarity inversion function
- Supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz inputs
- Large rotary knob for volume adjustment
- Large illuminated pushbuttons displaying function status
- Volex V-Lock latching AC power cord
Product information "Lavry Engineering Quintessence"
The Lavry Quintessence is a high-end DAC that builds upon the legendary DA924, exceeding it in transparency, accuracy, musicality, and dynamic range while adding advanced functionality. It features dual stereo XLR outputs (Main and Monitor) with +18 and +24 dBu peak levels, and intuitive analog volume control for the Monitor output with ¼ dB steps over an 80 dB range. Fine calibration of Main outputs is possible in 0.1 dB steps for a ±0.7 dB range. Inputs include two AES and one SPDIF, supporting sample rates from 44.1 kHz to 192 kHz, with independent monitor volume memory for ABX comparison. Additional functions include BAL/UNBAL, Mono, Polarity Inversion, and customizable illumination. The unit now ships with a Volex V-Lock latching AC power cord.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Lavry
P.O. Box 4602
Rolling Bay, WA 98061
Phone: 360.881.0540
Fax: 360.881.0635
©2021 LAVRY ENGINEERING
Performance
- Distortion: 0.0005% at –3 dBFS, 1 kHz; 0.0009% at –3 dBFS, 20 Hz – 20 kHz
- Noise: –110 dBFS un-weighted
- Flatness Response: 0.05 dB
- Channel Separation: 107 dB (20 Hz – 20 kHz)
- Mute: –125 dB (Volume = 0)
- Sample Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Stereo Level Matching (Left to Right): 0.04 dB
- Main to Monitor Level Matching: 0.04 dB (Monitor Setting at Maximum Value)
- Crosstalk: –127 dB at 1 kHz (–130 dB typical), –112 dB at 20 Hz – 20 kHz
- Click & Pop Protection on Switching: fast fade out, fade in (front panel switches)

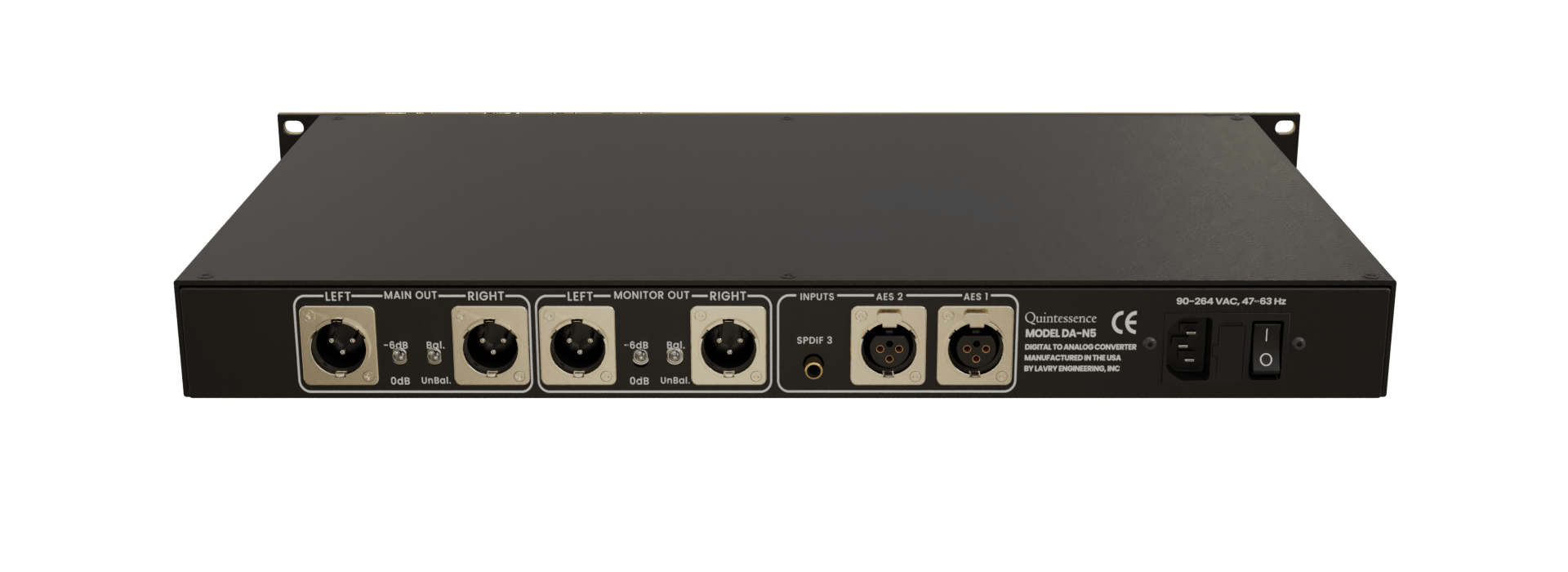

Digital Inputs
- 2 XLR: transformer isolated
- 1 RCA: transformer isolated
Analog Outputs
- Main Stereo Output: 24 dBu into 600 Ohms
- Monitor Out: 24 dBu into 600 Ohms maximum
- Monitor Level: Digitally controlled analog attenuation (3 dB or 0.25 dB steps)
- Monitor Attenuation: up to 79.75 dB + Mute
Calibration
- Calibration Range: ±0.7 dB
- Calibration Steps: 0.1 dB
- Calibration Step Accuracy: ±0.002 dB
AC Power
- This unit automatically adjusts to AC power in the range of 90–264 VAC, 47–63 Hz. No change of settings is necessary.
