Manley ELOP+
Product information "Manley ELOP+"
Since the early 1990´s, the Manley ELOP stereo electro-optical limiter has been a tracking hero effortlessly controlling dynamics on countless records around the globe, delivering the coveted classic, all-tube sound that Manley Labs is known for. So how to improve something this good?
The ELOP+ features a 3:1 compression ratio which opens up the doors to greater versatility, especially for 2-buss applications. It has been completely re-engineered from the ground-up, beginning with an amazing modern high voltage switching power supply purpose-designed for vacuum tube audio circuits. With careful reference to the sonic past, the vacuum tube line amplifier was deployed for highest performance and the White Follower output stage in this version all housed in a build-efficient chassis behind a drop-dead gorgeous precision-CNC-milled faceplate, all proudly made in America, of course. The Manley ELOP+ is everything the legendary ELOP was loved for, plus!
Features:
- 10:1 Limiter and 3:1 Compressor ratios
- All-tube audio path uses 5751 and 6922 dual triodes
- Balanced Manley IRON transformer-coupled XLR Inputs
- XLR impedance-balanced outputs
- BYPASS switches and AUTOMUTE with warm-up delay
- Large illuminated VU meters read Gain Reduction or Output levels
- STEREO LINK
- Side-Chain High-Pass Filter
- Universal internal power supply operates worldwide 90-250V~AC 50/60Hz
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Manley
Manley Laboratories, Inc.
13880 Magnolia Ave Chino, CA 91710
it@manleylabs.com
https://www.manley.com

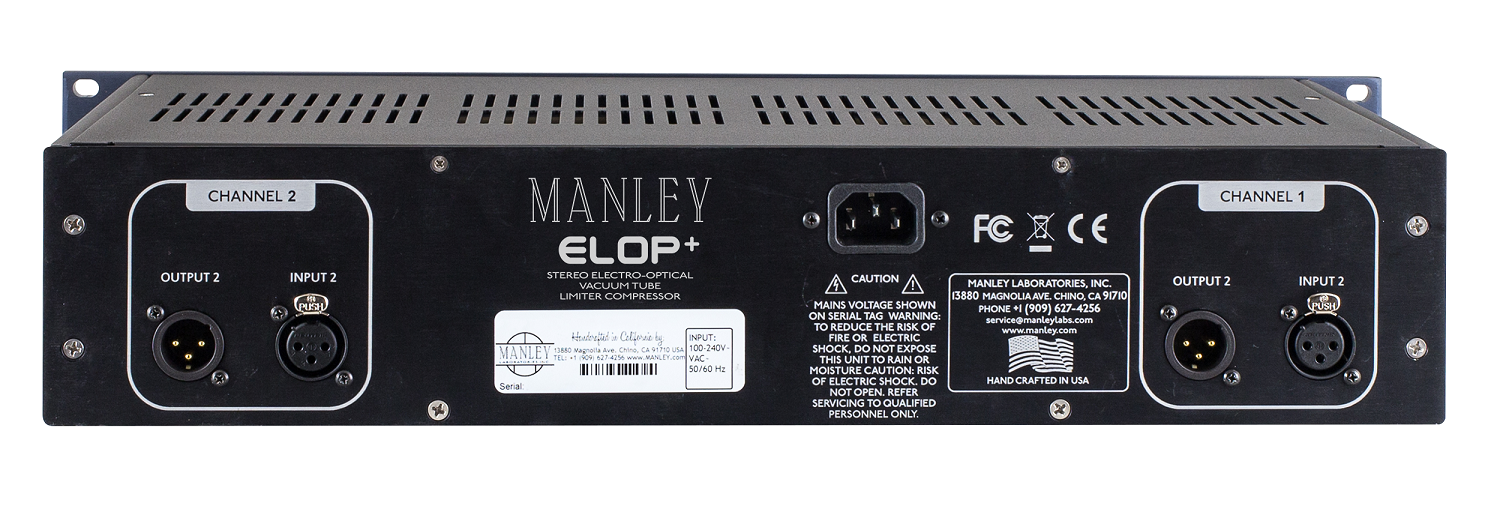

- Inputs: XLR, transformer balanced
- Outputs: XLR, impedance-balanced
- Tubes: 5751, 6922 dual triodes
- Ratio: 10:1, 3;1, switchable
- Dimensions: 19“ / 2U
- PSU: 90-250V~AC 50/60Hz
