Manley NuMu
Product information "Manley NuMu"
Building upon Manleys proud heritage, the Manley Nu Mu merges the esoteric „T-Bar mod“ all-tube front end from the legendary Manley Variable Mu and makes it standard followed by a solid state audio chain for the smoothest dynamics action coupled to the punchiest sonic path. Featuring Manleys HIP function, the Nu Mu finesses dynamic control to bring up lower level details without knocking the life out of exciting transients. Smartly engineered to build efficiently and esthetically designed to elicit ravishing compliments from clients, both visually and ergonomically, the Manley Nu Mu breaks new ground in performance and value, all proudly handbuilt in California, of course!
Features:
- Manley IRON input transformers
- 4 x hand-matched 6BA6 vacuum tubes
- Balanced XLR inputs & outputs
- Manley HIP function raises soft dynamics without squashing louder passages
- High Voltage Switched Mode Power Supply custom designed for our vacuum tube audio circuits
- Three input level presets
- Ratio Modes between Limit(4:1 to 20:1) or Compress (1.5 to 1)
- Variable Attack (25msec-70msec) and recovery (5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.)
- HP SC: High Pass Side Chain Filter
- Hardwired Relay Bypass Switch
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Manley
Manley Laboratories, Inc.
13880 Magnolia Ave Chino, CA 91710
it@manleylabs.com
https://www.manley.com

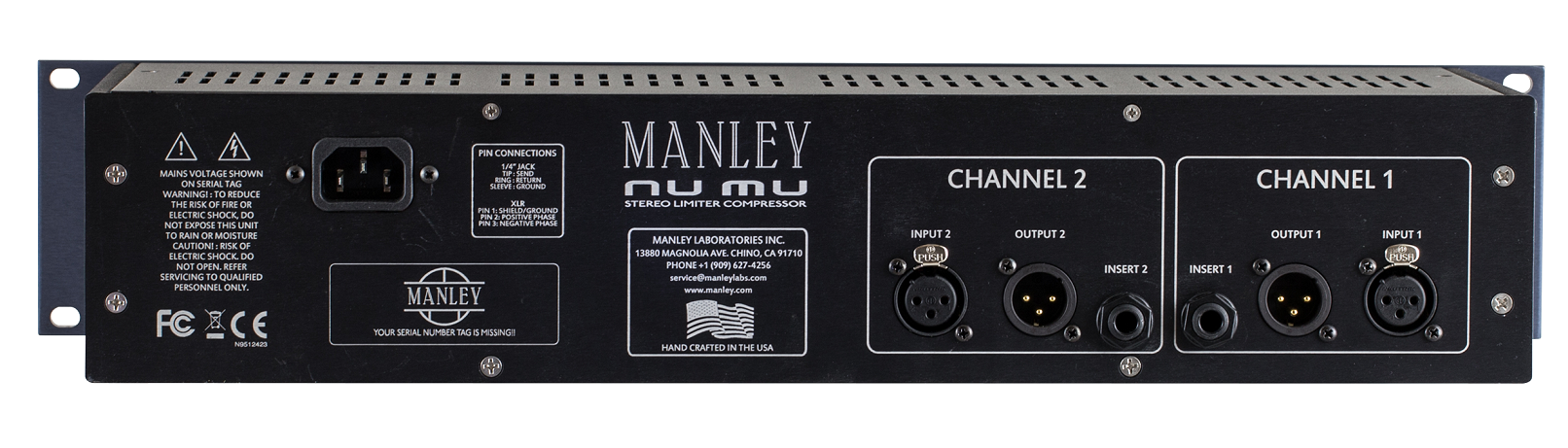

- Inputs: XLR, transformer balanced
- Outputs: XLR, impedance-balanced
- Tubes: 4x 6BA6
- Ratio: 4:1 to 20:1 limter, 1.5 to 1 compressor, switchable
- Attack: 25msec-70msec
- Release: 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.
- Dimensions: 19“ / 2U
- PSU: 90-250V~AC 50/60Hz
