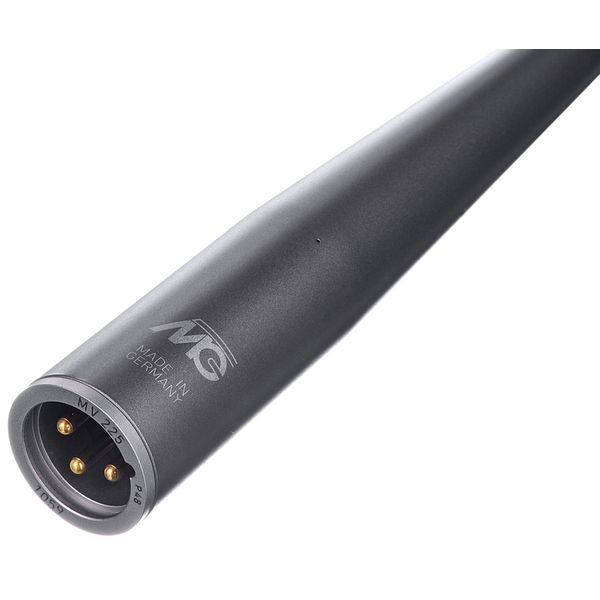

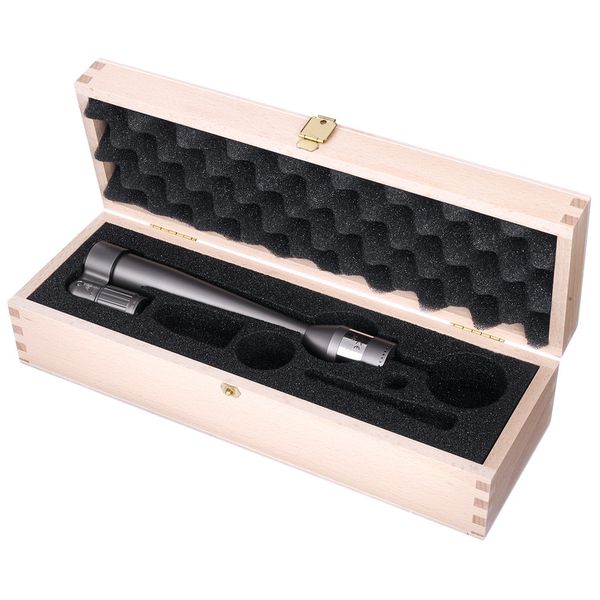

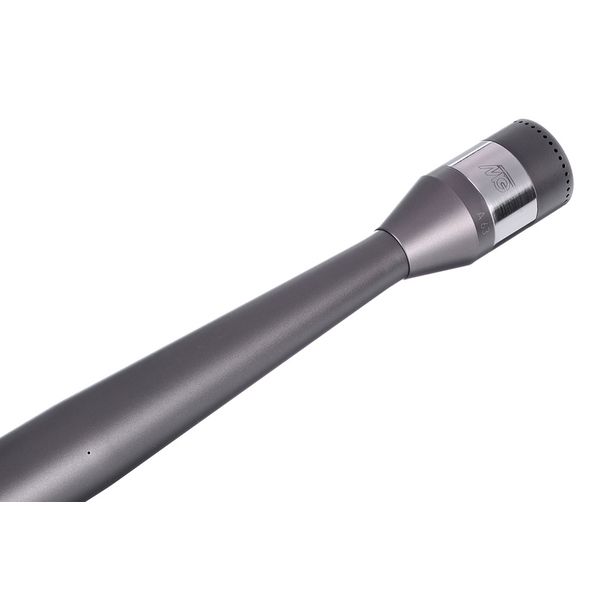

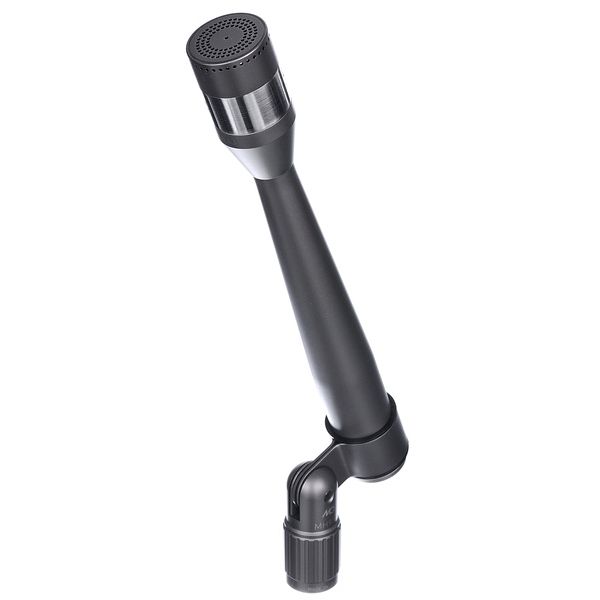

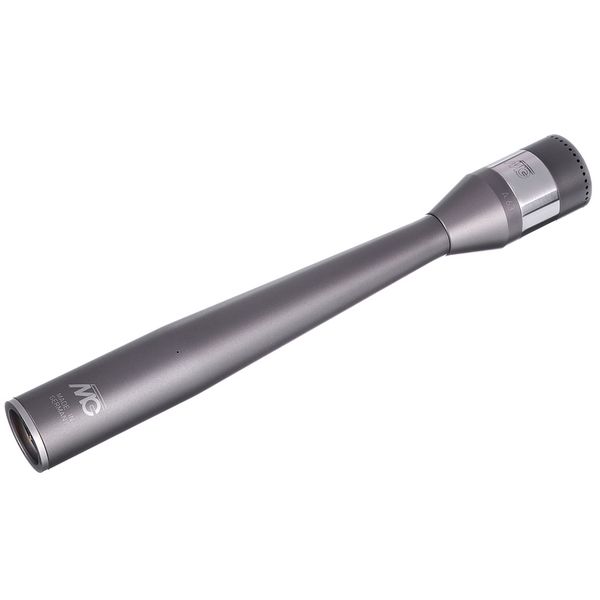

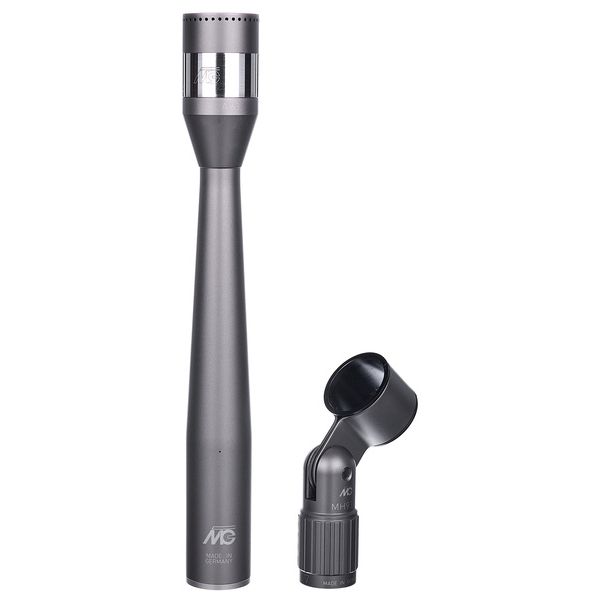

Microtech Gefell M 102
Small-diaphragm condenser microphone with cardioid polar pattern, transformerless circuitry, and low self-noise for studio recording, broadcast, and acoustic instrument applications.
Features
- Small-diaphragm condenser microphone
- Cardioid polar pattern
- Transformerless amplifier circuitry
- Wide frequency response
- Low self-noise performance
- Compact microphone design
- Suitable for studio and broadcast applications
Description
Product information "Microtech Gefell M 102"
Small-diaphragm condenser microphone designed for studio recording, broadcast, and acoustic instrument applications. Features a cardioid polar pattern, transformerless circuitry, and a compact microphone body for detailed transient response and low self-noise performance. Suitable for stereo recording, overheads, string instruments, piano, choir, and speech applications.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Microtech Gefell
Microtech Gefell GmbH
Georg-Neumann-Platz 07926 Gefell
info@microtechgefell.de
www.microtechgefell.de
Tech-Info
- Product Type: Small-Diaphragm Condenser Microphone
-
Polar Pattern:
- Cardioid
-
Acoustic Operating Principle:
- Pressure gradient transducer
-
Frequency Response:
- 40 Hz – 20 kHz
-
Sensitivity:
- 13 mV/Pa
-
Nominal Impedance:
- 100 Ohms
-
Rated Load Impedance:
- 1000 Ohms
-
Equivalent Noise Level:
- 16 dB-A
-
Signal-to-Noise Ratio:
- 78 dB
-
Maximum SPL:
- 130 dB SPL
-
Power Supply:
- 48 V Phantom Power
-
Connector:
- 3-pin XLR
-
Finish:
- Matte nickel
-
Applications:
- Acoustic instruments
- Drum overheads
- Piano
- Choir recording
- Speech
- Stereo recording
-
Manufacturing:
- Made in Germany
