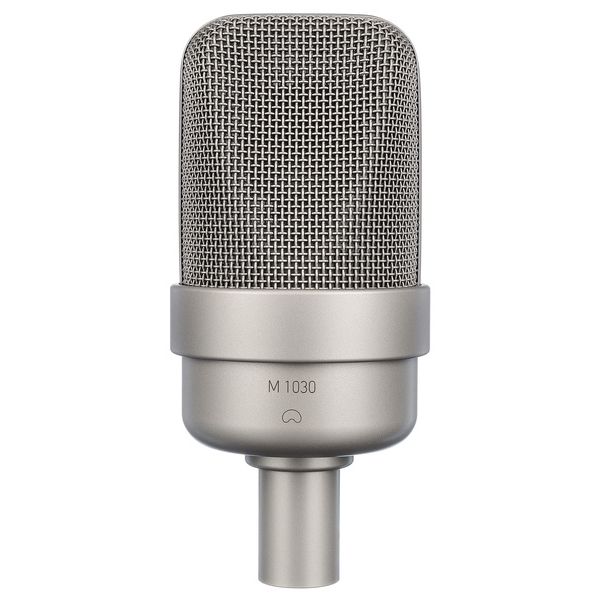

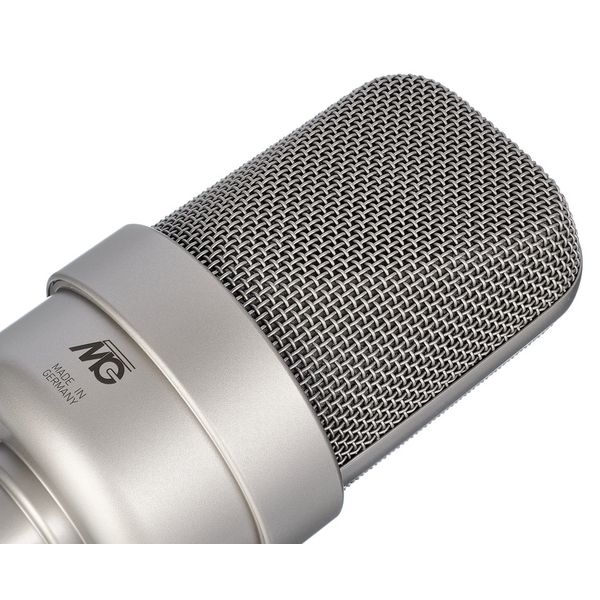

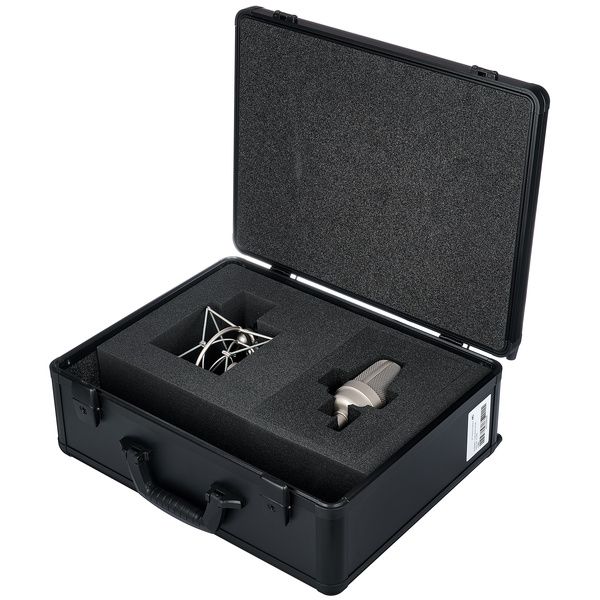

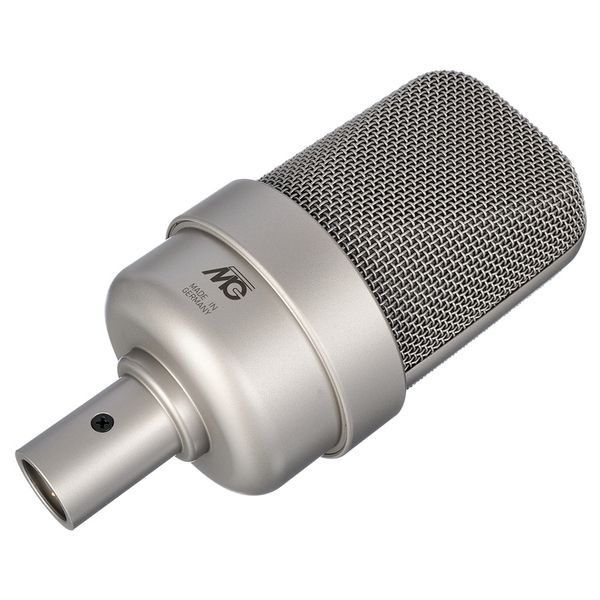

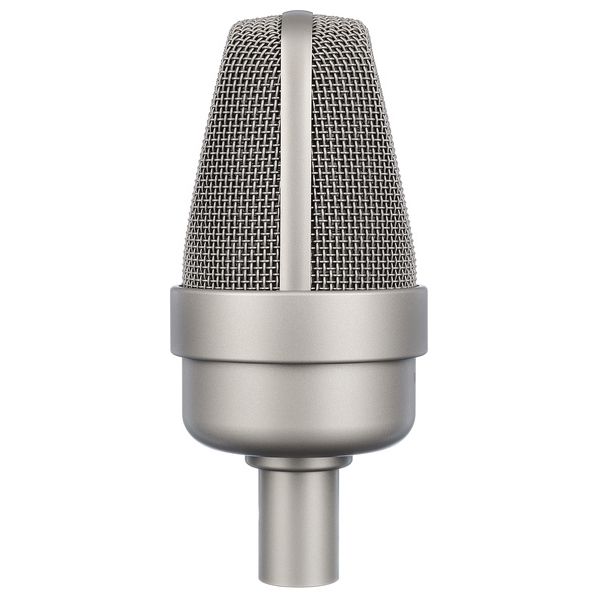

Microtech Gefell M 1030 - EA 92 Set
Large-diaphragm condenser microphone set with cardioid polar pattern, low self-noise, transformerless circuitry, and included EA 92 elastic suspension mount for studio and broadcast recording applications.
Features
- Large-diaphragm condenser microphone set
- Cardioid polar pattern

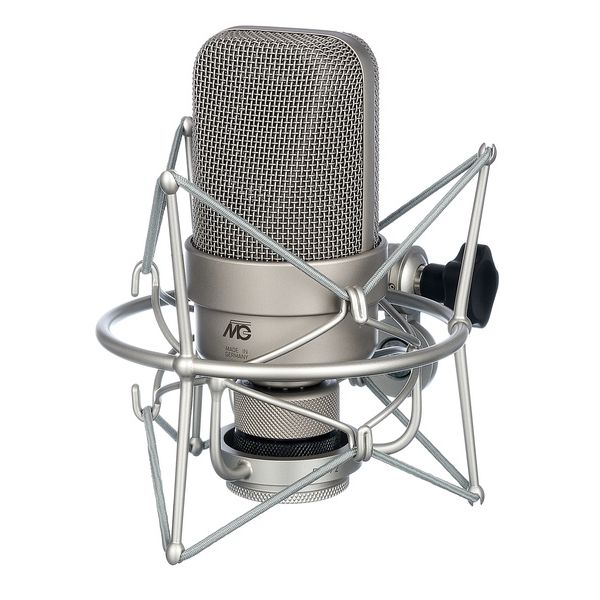

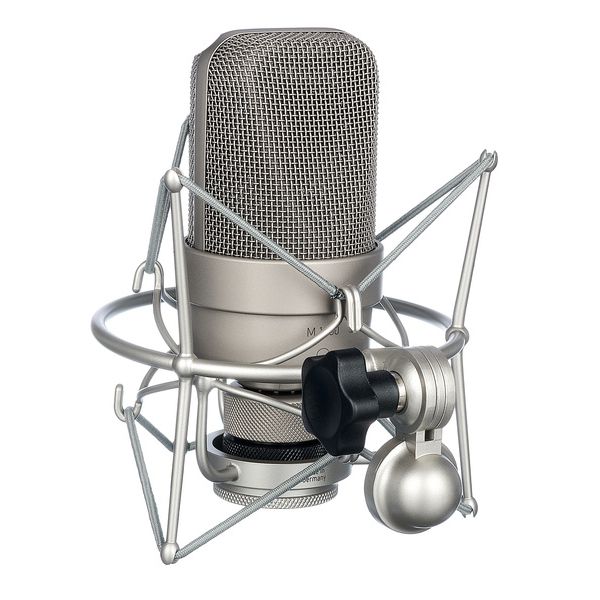

- Includes EA 92 elastic suspension mount
- Transformerless amplifier circuitry
- Low self-noise performance
- High SPL capability
- Suitable for studio and broadcast applications
Description
Product information "Microtech Gefell M 1030 - EA 92 Set"
Large-diaphragm condenser microphone set with cardioid polar pattern and included EA 92 elastic suspension mount. Designed for studio vocals, speech, broadcast, and acoustic instrument recording applications. Features transformerless circuitry, low self-noise performance, and high SPL handling in a large-diaphragm condenser design.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Microtech Gefell
Microtech Gefell GmbH
Georg-Neumann-Platz 07926 Gefell
info@microtechgefell.de
www.microtechgefell.de
Tech-Info
- Product Type: Large-Diaphragm Condenser Microphone Set
-
Included Accessories:
- EA 92 elastic suspension mount
-
Polar Pattern:
- Cardioid
-
Acoustic Operating Principle:
- Pressure gradient transducer
-
Frequency Response:
- 40 Hz – 18 kHz
-
Sensitivity:
- 21 mV/Pa
-
Equivalent Noise Level:
- 7 dB-A
-
Signal-to-Noise Ratio:
- 87 dB
-
Maximum SPL:
- 142 dB SPL
-
Impedance:
- 100 Ohms
-
Power Supply:
- 48 V Phantom Power
-

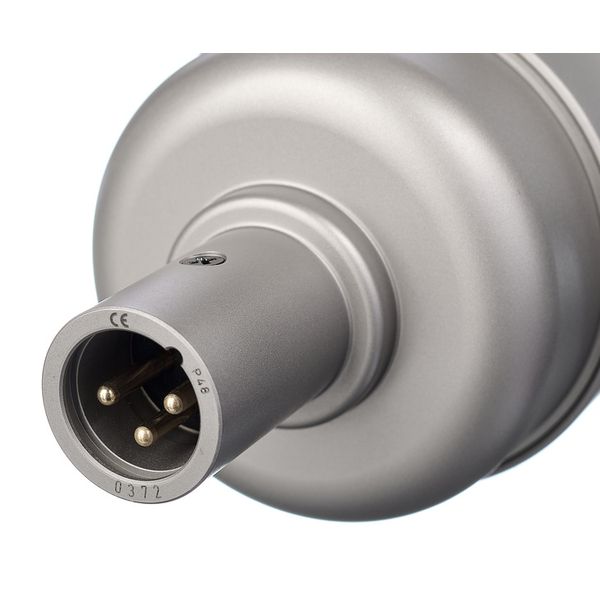

Connector:
- 3-pin XLR
-
Applications:
- Vocal recording
- Speech
- Broadcast
- Acoustic instruments
- Voice-over
-
Manufacturing:
- Made in Germany
