- 30 Input / 30 Output channels
- 12 x Analog I/O
- 4 x Mic/Instrument Preamp
- 1 x AES/EBU I/O
- 2 x ADAT I/O (oder 1 x ADAT I/O plus 1 x SPDIF I/O optical) oder 2x SPDIF I/O optical
- 1 x Word Clock I/O
- 1 x MIDI I/O
- 1x USB 2.0

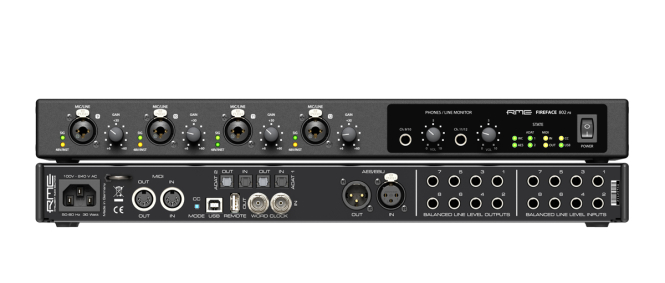

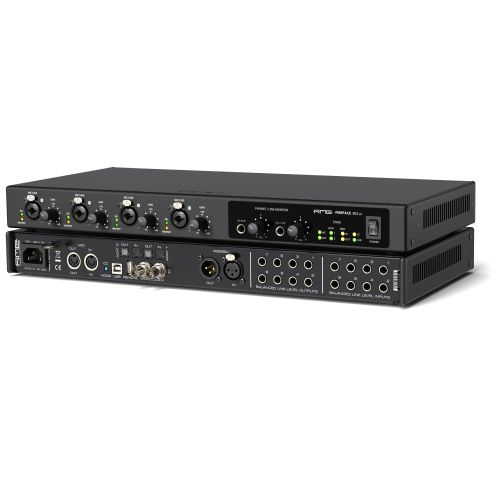

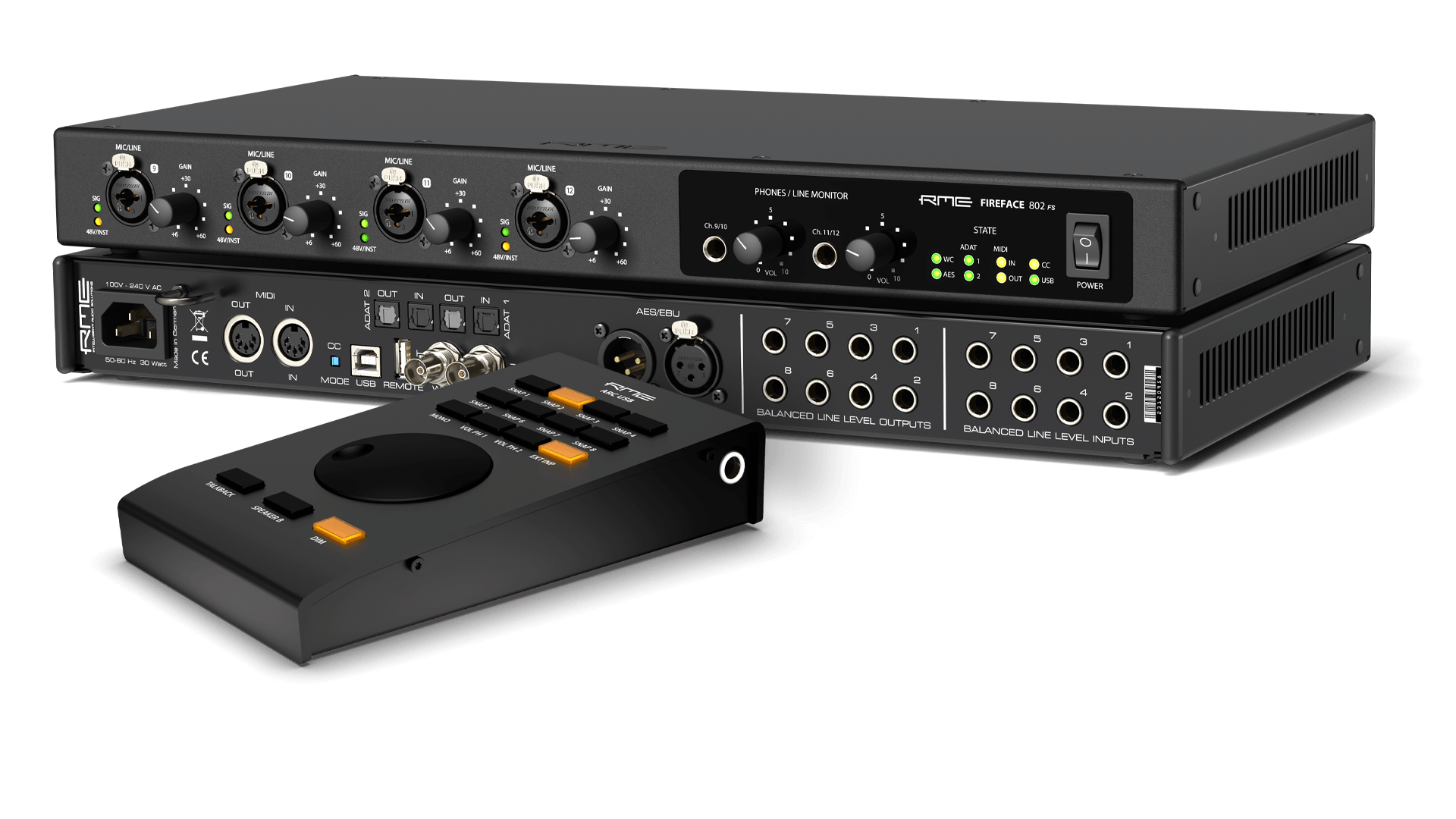

Product information "RME Fireface 802 FS AE"
Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
---|

RME Audio
Audio AG
Am Pfanderling 60 85778 Haimhausen
info[at]audioag[dot]com
www.audioag.de
-
Analog Section
AD, Line In 1-8, Rear
Input: 6.3 mm TRS jack, servo-balanced
Signal-to-Noise Ratio (SNR) @:
LoGain: 116 dB (AES17), 118 dBA
+4 dBu: 115 dB (AES17), 117 dBA
Frequency Response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHz
Frequency Response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHz
Frequency Response @ 192 kHz, -1 dB: 3 Hz – 89 kHz
Filter: Short Delay Sharp, 5 / 5 / 6 samples latency
THD @ -1 dBFS: < -120 dB, < 0.0001%
THD+N @ -1 dBFS: < -110 dB, < 0.00032%
Crosstalk: > 110 dB
Max Input Level: +19 dBu
Input: 6.3 mm TRS jack, electronically balanced
Input Impedance @ 1 kHz: 10 kΩ unbalanced, 10.6 kΩ balanced
Input Sensitivity switchable between LoGain and +4 dBu
Input Level for 0 dBFS @ +19 dBu: +19 dBu
Input Level for 0 dBFS @ +4 dBu: +13 dBu
Variable Gain: 0 to +12 dB
Minimum Input Level for 0 dBFS: +1 dBu, -1.2 dBVMicrophone In 9-12, Front
Input: XLR, electronically balanced
Input Impedance: 3.4 kΩ
Signal-to-Noise Ratio (SNR) @ Gain +10 dB: 113 dB RMS unweighted, 116 dBA
Gain Range: 54 dB
Max Input Level, Gain +6 dB: +10 dBu
Max Input Level, Gain +60 dB: -44 dBu
CLIP LED: 0 dBFS
SIG LED: -42 dBFSInstrument In 9-12, Front
Input: 6.3 mm mono jack, unbalanced
Input Impedance: 1 MΩ
Signal-to-Noise Ratio (SNR): 113 dB RMS unweighted, 116 dBA
Max Input Level, Gain +6 dB: +21 dBu
Max Input Level, Gain +60 dB: -33 dBu
Frequency Response @ 44.1 kHz, -0.5 dB: 2.5 Hz – 20.5 kHz
Frequency Response @ 96 kHz, -0.5 dB: 2.5 Hz – 25 kHz
Frequency Response @ 192 kHz, -1 dB: 1.7 Hz – 36 kHzDA - Stereo Monitor Output Phones (9-12)
Output: 2 x 6.3 mm TRS jack, unbalanced
Max Output Level @ 0 dBFS: +17 dBu
Max Output Power per Channel, 32 Ohms load, 0.1% THD: 210 mW (2.5 V RMS, +10 dBu)
Signal-to-Noise Ratio (SNR): 116 dB (AES17), 118 dBA
Output Impedance: 2 OhmsDA, Line Out 1-8, Rear
Output: 6.3 mm TRS jack, servo-balanced
Signal-to-Noise Ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBA
SNR @ +4 dBu: 116 dB (AES17), 118 dBA
SNR @ -10 dBV: 107 dB (AES17), 109 dBA
Frequency Response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
Frequency Response @ 96 kHz, -0.5 dB: 0 Hz – 44.6 kHz
Frequency Response @ 192 kHz, -1 dB: 0 Hz – 77.5 kHz
Filter: Short Delay Sharp, 6 / 6 / 6 samples latency
THD+N: < -110 dB, < 0.00032%
Crosstalk: > 110 dB
Output Level switchable HiGain, +4 dBu, -10 dBV
Output Level @ 0 dBFS @ +19 dBu: +19 dBu
Output Level @ 0 dBFS @ +13 dBu: +13 dBu
Output Level @ 0 dBFS @ +4 dBu: +2 dBV (+4.2 dBu)
Output Impedance: 75 OhmsMIDI
1 x MIDI I/O via 5-pin DIN sockets
Optocoupler isolation on input
Hi-Speed mode with jitter and response time typically under 1 ms
Separate 128-byte FIFOs for input and outputDigital Section
Clocks: Internal, ADAT In, AES In, SPDIF In, Wordclock In
Jitter suppression on external clocks: > 50 dB (> 1 Hz)
Practically no effective jitter influence on AD and DA conversion
PLL operates reliably even with more than 100 ns jitter
Digital Bitclock PLL for seamless Varipitch in ADAT mode
Supported sample rates: 28 kHz to 200 kHzDigital Inputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, AES3-1992 standard
Highly sensitive input stage (< 0.3 Vpp)
SPDIF compatible (IEC 60958)
Accepts consumer and professional formats
Lock Range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)ADAT Optical
2 x TOSLINK, Alesis format specification
Standard: 2 x 8 channels, 24-bit, up to 48 kHz
Double Speed (S/MUX): 2 x 4 channels, 24-bit 96 kHz
Quad Speed (S/MUX4): 2 x 2 channels, 24-bit 192 kHz
Quad Speed Windows USB: 1 x 2 channels, 24-bit 192 kHz
Bitclock PLL for perfect synchronization even in Varispeed mode
Lock Range: 31.5 kHz – 50 kHz
Jitter suppression: > 50 dB (> 1 Hz)SPDIF Optical (ADAT 1/2)
1 x optical, IEC 60958 standard
Accepts consumer and professional formats
Lock Range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)Word Clock
BNC
Internal termination 75 Ohms switchable
Automatic double/quad-speed detection and conversion to single-speed
SteadyClock ensures low-jitter synchronization even in Varispeed mode
Insensitive to DC offsets in the network
Signal Adaptation Circuit: Signal refreshing via centering and hysteresis
Overvoltage protection
Level range: 1.0 Vpp – 5.6 Vpp
Lock Range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)Digital Outputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, AES3-1992 standard
Output voltage professional 4.2 Vpp, consumer 2.4 Vpp
Professional format per AES3-1992 Amendment 4, consumer format (SPDIF) per IEC 60958
Single Wire Mode, sample rate: 28 kHz to 200 kHzADAT
2 x TOSLINK
Standard: 2 x 8 channels, 24-bit, up to 48 kHz
Double Speed (S/MUX): 2 x 4 channels, 24-bit 96 kHz
Quad Speed (S/MUX4): 2 x 2 channels, 24-bit 192 kHz
Quad Speed Windows USB: 1 x 2 channels, 24-bit 192 kHzSPDIF Optical (ADAT 1/2)
Consumer format (SPDIF) per IEC 60958
Sample rate: 28 kHz to 200 kHzWord Clock
BNC
Max level: 5 Vpp
Level with 75 Ohms termination: 4.0 Vpp
Internal impedance: 10 Ohms
Frequency range: 27 kHz – 200 kHzGeneral
Power supply: Internal switching power supply, 100 - 240 V AC, 30 watts
Minimum power requirement: 15 watts
Typical power requirement: 22 watts
Dimensions with rack ears (WxHxD): 483 × 44 × 242 mm
Dimensions without rack ears/handles (WxHxD): 436 × 44 × 236 mm
Weight: 2.8 kg
Operating temperature range: +5° to +50° Celsius
Relative humidity: < 75%, non-condensing
