RTW TM3 Smart
Product information "RTW TM3 Smart"
Professional Loudness, True Peak and PPM metering at an affordable price: TM3 Smart

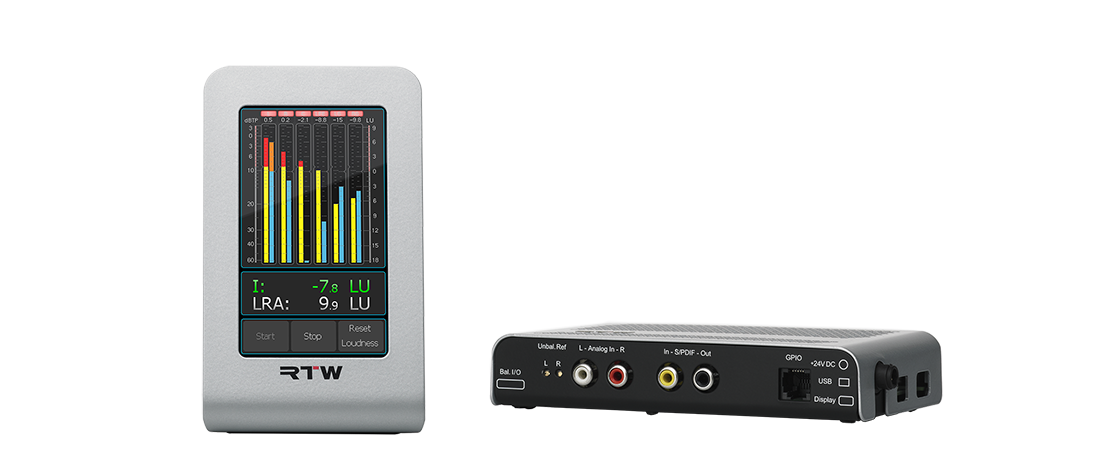

4.3" Desktop TouchMonitor for editorial offices, edit suites, small control rooms
Features
- 4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 21/50 mm, W x H x D)

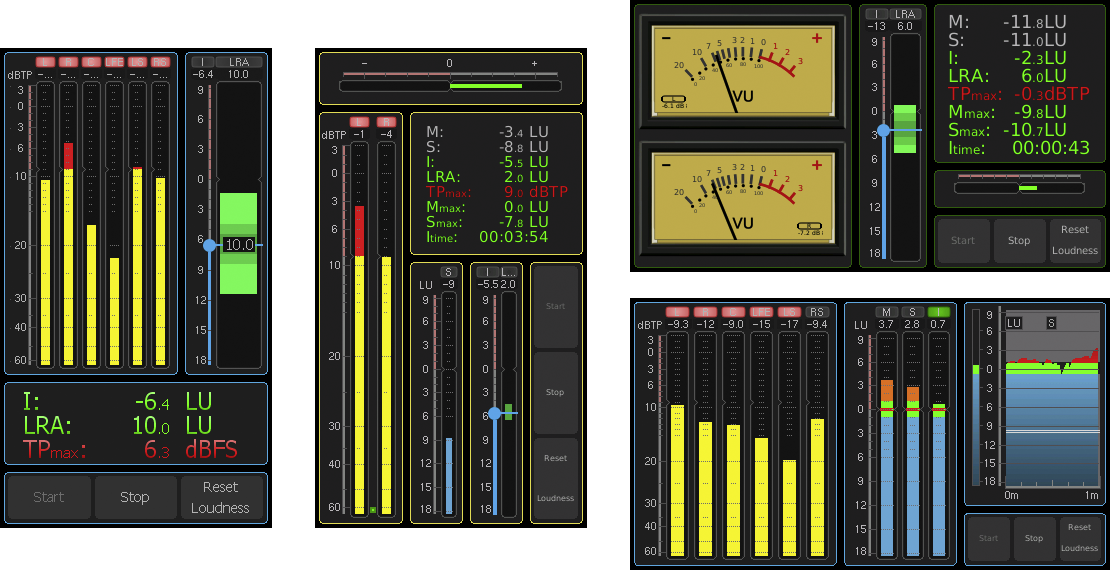

- Flexible display layout with scalable instruments
- Separate interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)
- Audio: analog balanced (D-Sub) or unbalanced (RCA), S/PDIF (RCA), 3 x AES3 (D-Sub)
- 2-channel Stereo (analog, digital), multichannel (digital), 5.1 (digital), input sources alternatively selectable, max. 6 channels at a time
- USB 2.0 connector (Mini-B), GPIO connector (RJ-12)
- Moving Coil instruments
- Loudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specific
- Single channel and summing loudness bargraphs
- Loudness Test Time Control
- Loudness range (LRA) with MagicLRA
- Loudness chart
- Timecode Reader
- PPM & True Peak
- SPL & Dialnorm
- Correlation
- Numerical display
- Comprehensive set of presets
- Personalization with Devicer DC1
- The Device Configurator software for Windows® and Mac OS X® is available in the download area
For more Information please visit manufacturers webpage
