SPL P8
Elevate Ihre Mehrkanal-Recording-Sessions mit dem SPL P8, einem achtkanaligen Mikrofonvorverstärker mit diskreter High-End-Technik und ADAT-Option.
Product information "SPL P8"

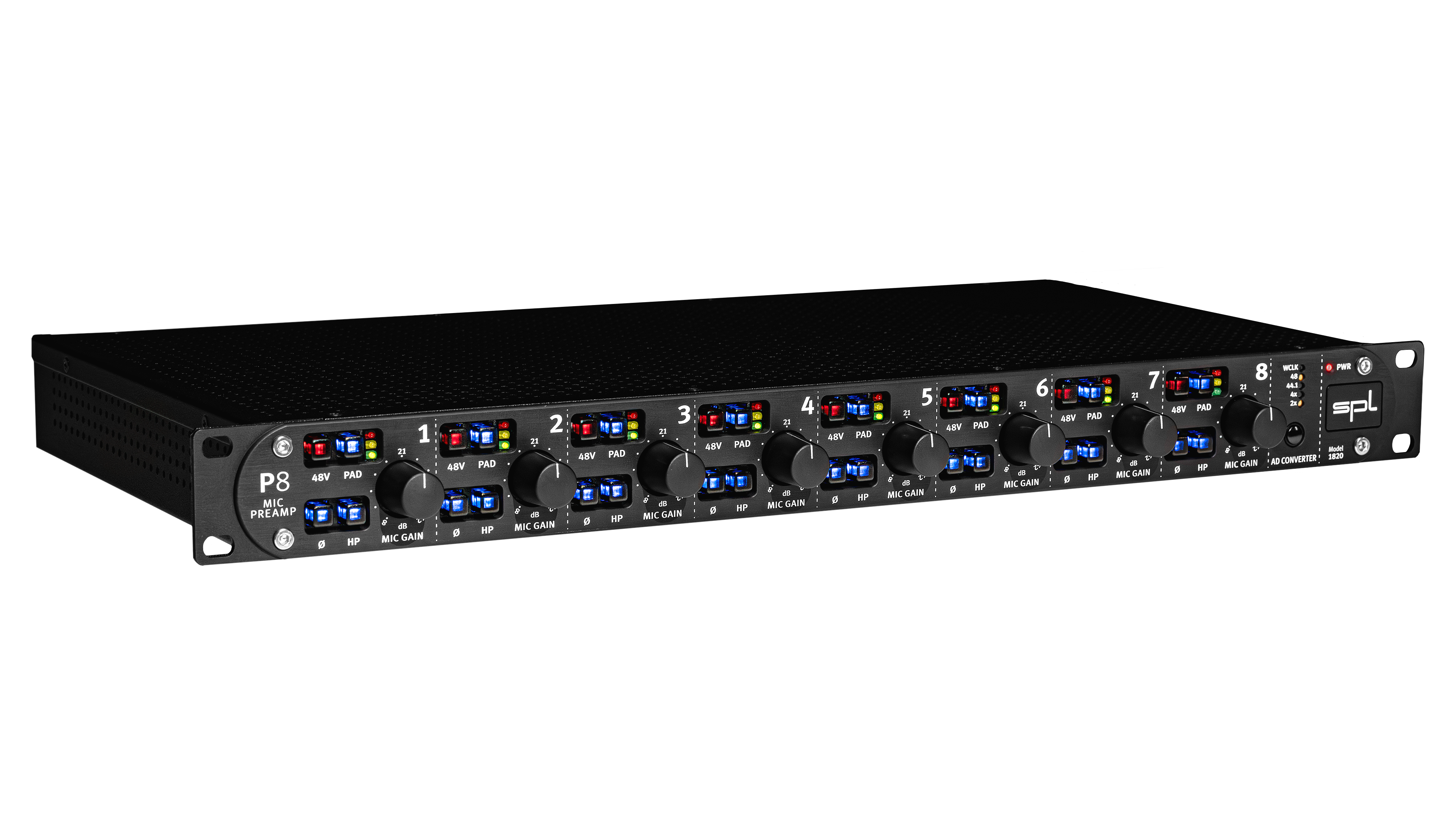

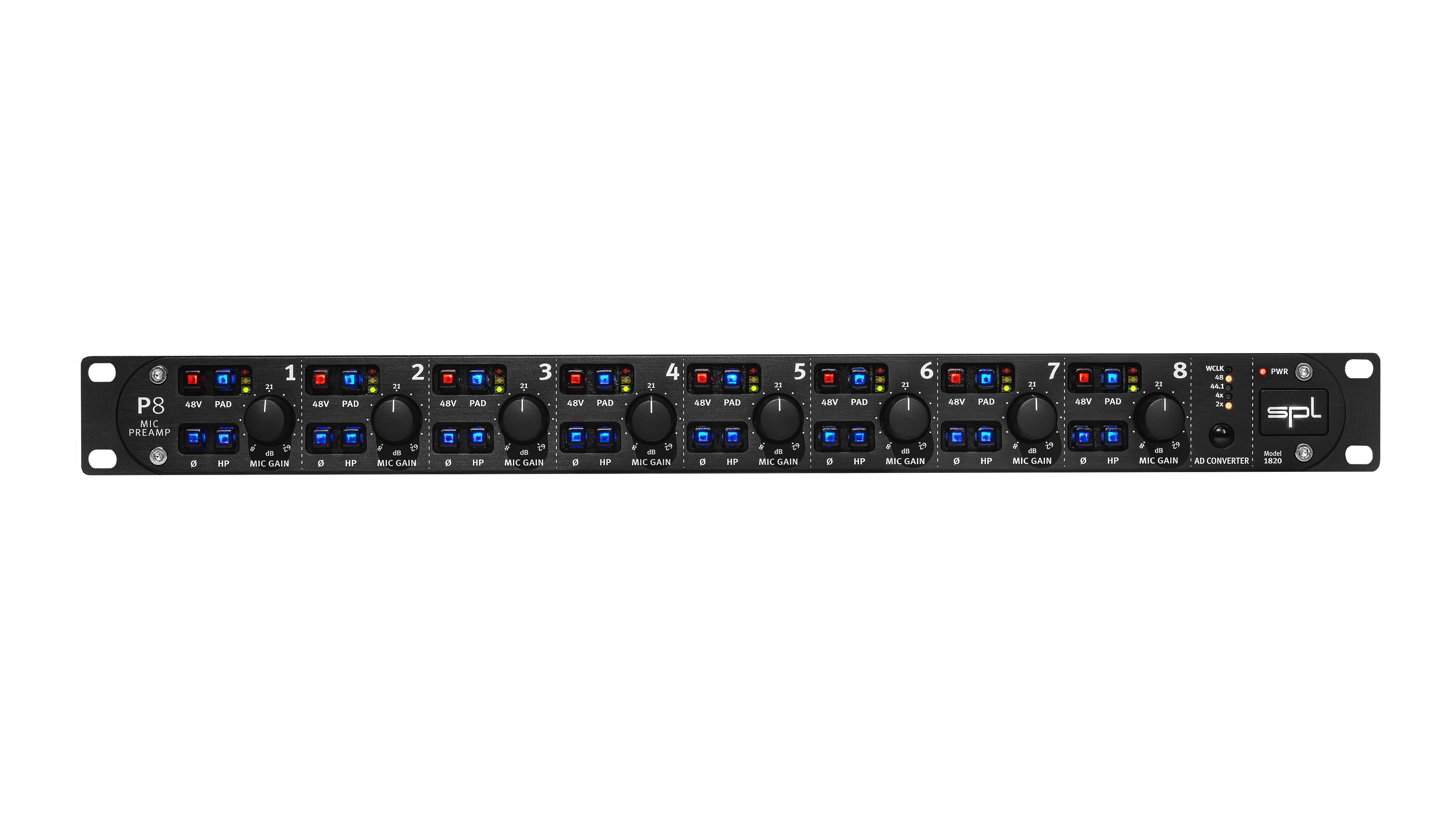

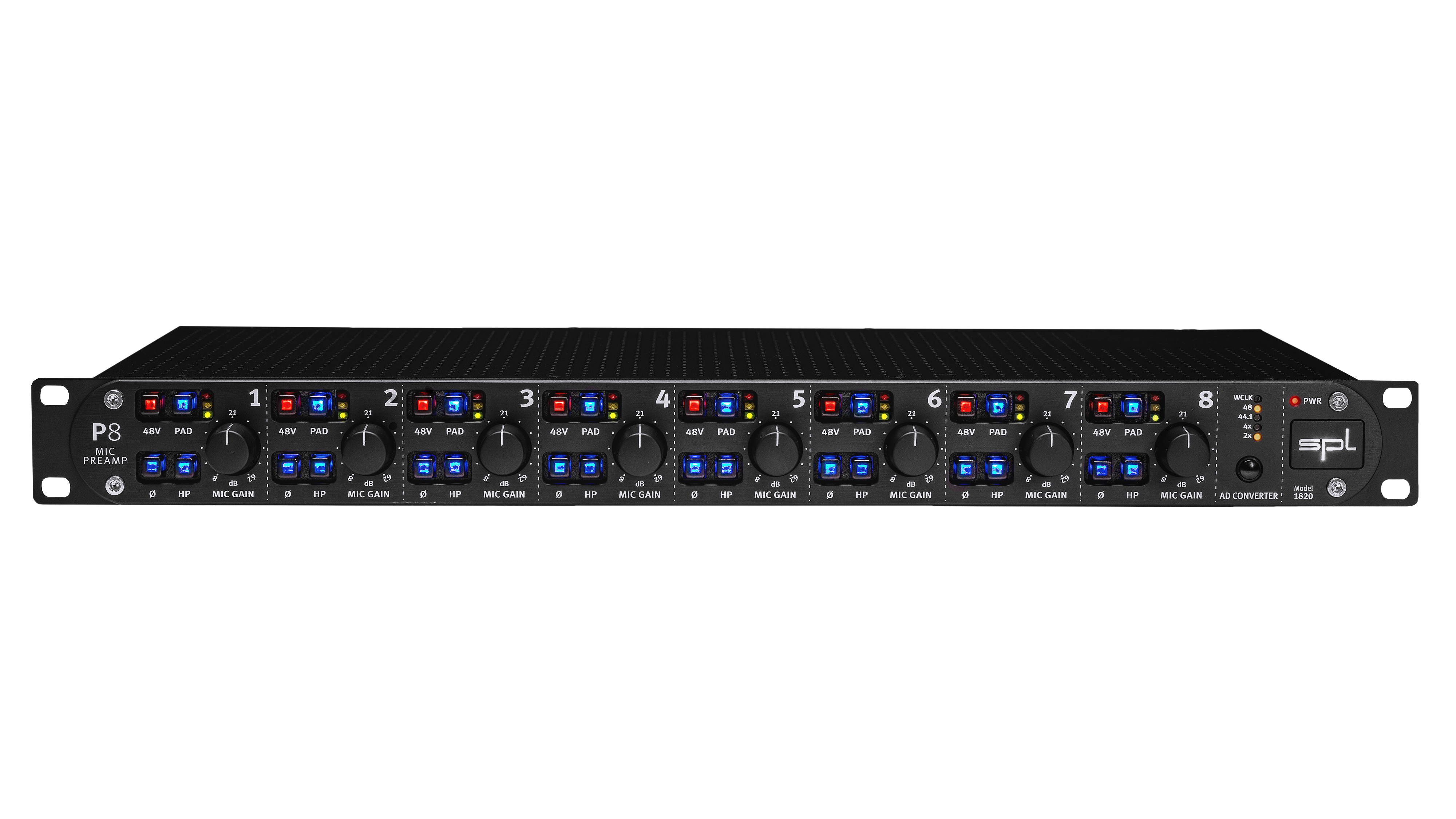

Eight-channel microphone preamp with discrete technology
The P8 features eight identically designed microphone preamps. All eight preamps are built discretely – without ICs, using individual transistors. This level of craftsmanship is typically reserved for high-end preamps and is key to delivering outstanding sound.
Each of the eight preamps has an analog gain control for adjusting the preamplification, individually switchable phantom power (48V), a PAD switch, a phase inversion function, and a switchable analog high-pass filter.
With the optional eight-channel ADAT converter, the purely analog P8 can be digitally connected to an audio interface.
The P8 paves the way for high-quality multi-channel recording sessions.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
SPL
SPL electronics GmbH
Sohlweg 80 41372 Niederkrüchten Germany
info@spl.audio
https://spl.audio
Internal power supply; Linear power supply with shielded toroidal transformer
- Operating voltage for analog audio electronics: +/- 17 V
- Operating voltage for relays and LEDs: +/- 18 V
- Phantom power: +48 V
- Operating voltage for A/D converter card: +12 V / +3.3 V
Power supply
- Mains voltage (selectable, see fuse compartment): 230 V AC / 50 Hz; 115 V AC / 60 Hz
- Fuse for 230 V: T 315 mA
- Fuse for 115 V: T 630 mA
- Power consumption: max. 27 VA

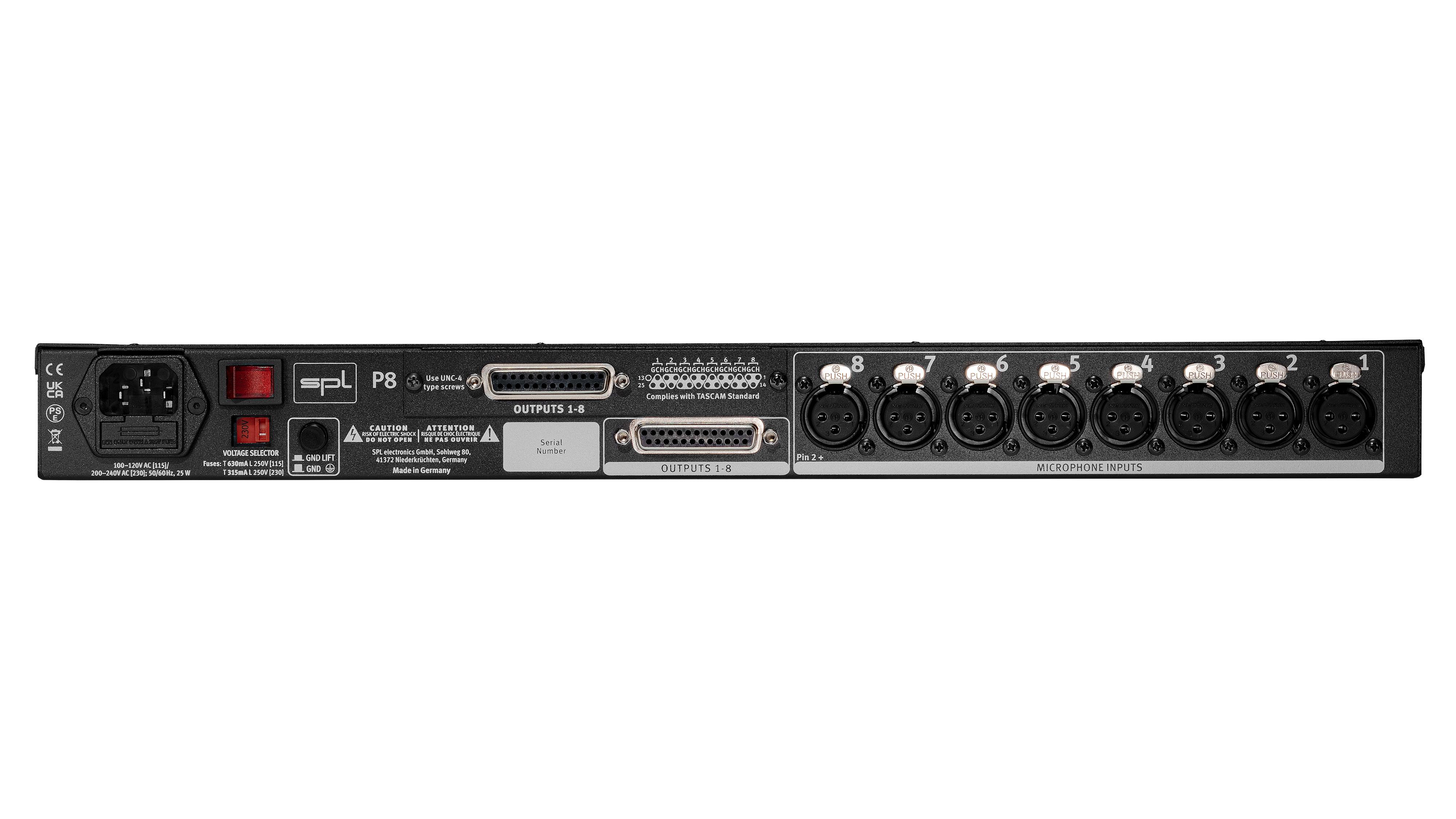

Analog inputs and outputs; XLR (balanced)
- Maximum input level (Mic, +8 dB – +62 dB): 13.5 dBu (33.5 dBu with PAD switch)
- Input impedance (Mic/Line): 10 kΩ
- Output impedance: 75 Ω
- Frequency response: 15 Hz – 200 kHz
- Equivalent Input Noise (EIN): -124 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain): -94 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 62 dB Gain): -66 dBu
- Common mode rejection ratio (1 kHz), Mic input: < 78 dB
- THD+N Ratio (1 kHz), Mic 30 dB Gain: 0.003 %
- THD+N Ratio (1 kHz), Mic 62 dB Gain (Max.): 0.022 %
- Signal indication/Meter:
- Green: -25 dBu
- Yellow: 0 dBu
- Red: +19 dBu (without A/D converter)
- +12 dBu / -3 dBFs (with A/D converter)
Dimensions & Weight
- W x H x D (Width x Height x Depth): 482 x 44 x 237 mm
- 19 x 1.73 x 9.33 inches
- Weight of the device: 4.15 kg
- 9.15 lbs
- Shipping weight (incl. packaging): 5.4 kg
- 11.9 lbs
