SSL AWS Delta
- 16-input SuperAnalogue™ console with 24 motorized faders
- Combines large-format analog workflow with advanced DAW control
- SuperAnalogue™ mic preamps deliver ultra-transparent recordings
- Classic E-Series and G-Series dual-curve EQs on every channel
- Legendary SSL Stereo Bus Compressor for master processing
- Delta-Control™ enables hybrid automation between console and DAW
- A-FADA mode allows analog faders to follow DAW automation data
- Total Recall™ with “TR Autoscan” for fast session recovery
- Logictivity™ Remote Browser and SD card support for project management
- Expandable from AWS 916 to AWS 924 specification
- Delivers SSL’s XL 9000 K-Series sonic performance in compact form
Product information "SSL AWS Delta"

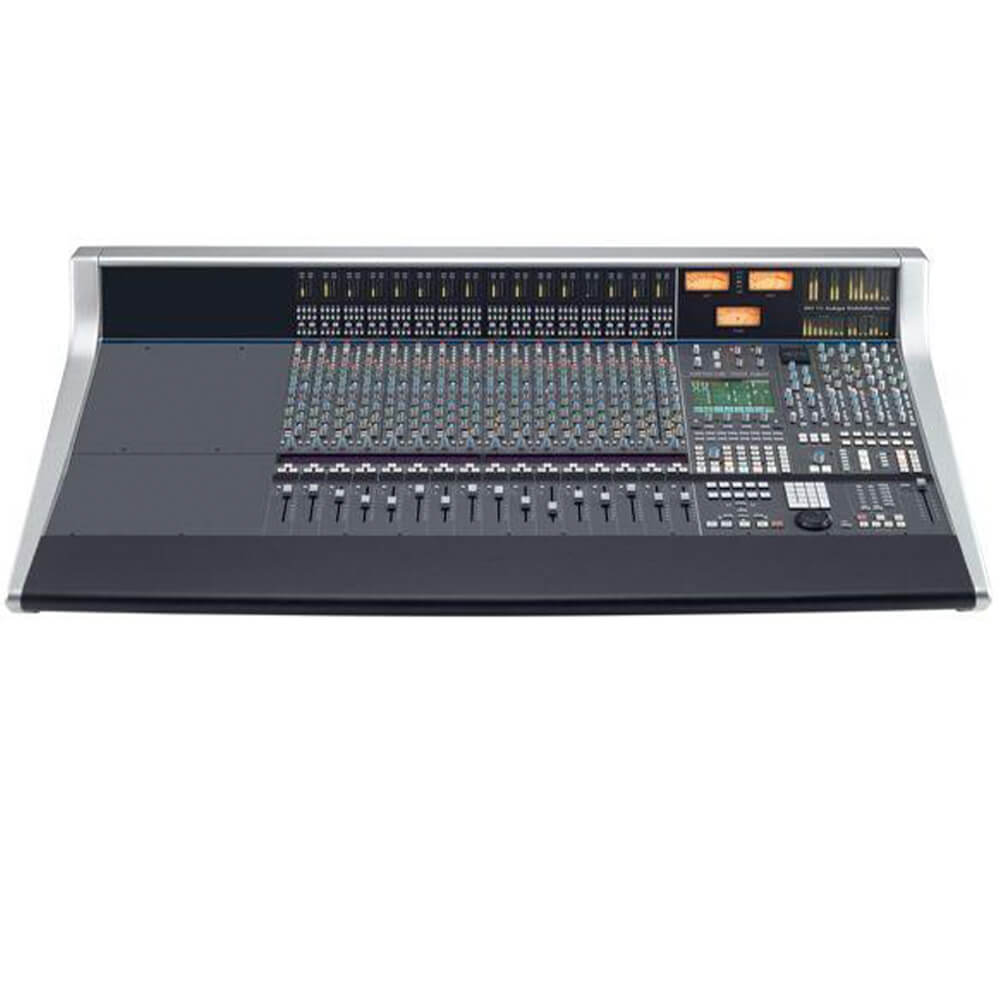

The SSL AWS 916 Delta is the entry-level model in the AWS-series consoles, offering the same professional features as the AWS 924 but with 16 SuperAnalogue™ inputs instead of 24. Built on a 24-fader frame, it combines SSL’s legendary analog sound with advanced DAW control in a compact and expandable design. Each channel features SuperAnalogue™ mic preamps, classic dual-curve EQs derived from the E-Series and G-Series, and access to the iconic Stereo Bus Compressor. The AWS 916 Delta delivers seamless hybrid workflow with Total Recall™, Delta-Control™ DAW automation, and A-FADA mode for motorized fader integration. Ideal for smaller studios that demand the sound and workflow of large-format SSL consoles, it offers the same sonic character as the flagship XL 9000 K-Series in a space-efficient frame that can be upgraded to AWS 924 specifications at any time.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Solid State Logic
Solid State Logic UK Limited
Spring Hill Road Begbroke Oxford OX15 6DS
marketing@solidstatelogic.com
KLANG:TECHNOLOGIES GMBH
Wespienstraße 8-10 52062 Aachen Germany
contact@KLANG.com
Performance
- Headroom: +26 dBu (onset of clipping)
- Frequency Response:
- Microphone input > Insert Send: 20Hz–20kHz ±0.2dB
- Line input > Direct Out: 20Hz–20kHz ±0.1dB
- Line input > Track/Aux Bus Out: 20Hz–20kHz ±0.1dB
- Line input > Mix/Rec Out: 20Hz–20kHz ±0.1dB
- Noise:
- Microphone input > Insert Send: <-127 dBu (Typical EIN)
- Line input > Direct Out: <-89 dBu
- Line input > Track/Aux Bus Out: <-89 dBu (no channels routed)
- Line input > Track/Aux Bus Out: <-88 dBu (one channel routed)
- Line input > Track/Aux Bus Out: <-77.5 dBu (all channels routed)
- Line input > Mix/Rec Out: <-91 dBu (no channels routed)
- Line input > Mix/Rec Out: <-88 dBu (one channel routed)
- Line input > Mix/Rec Out: <-77.5 dBu (all channels routed)
- THD (+20dBu, 1kHz, 20Hz–80kHz):
- Line input > Direct Out: <0.002%
- Line input > Track/Aux Bus Out: <0.005%
- Line input > Mix/Rec Out: <0.005%
Physical
- Height: 36.417″ / 925 mm (to top of meter trim)
- Height adjustment: 0.787″ / 0–20 mm
- Width: 56.889″ / 1,445 mm
- Depth: 34.370″ / 873 mm
- Weight: 238 lb / 108 kg (including legs, 8.8 lb / 4 kg each)
- Heat dissipation: 430 W
- Voltage: 100–230 V ±10%
- Current: 7.5–3.1 A
- Inrush Current: 4.6 A initial; 4.6 A after 5 seconds
- Power factor: 0.95
- Fusing: n/a
- Noise: Fanless
Connectors
- Mains input: IEC male
- Serial: 9-way D-type female
- VGA out: HD 15-way D-type (640 x 480 60Hz)
