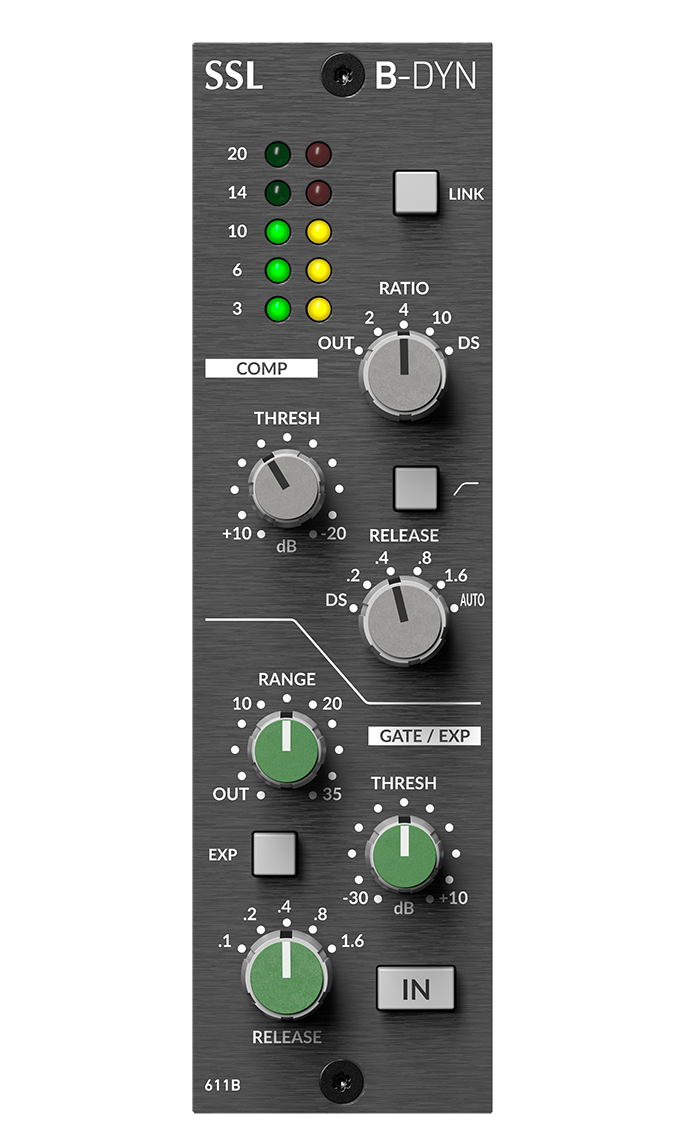

SSL B-Dyn
- Authentic recreation of the SL 4000 B console’s dynamics processing
- Circuit design based on the original SSL Bus Compressor
- Integrated compressor/limiter and gate/expander functions
- Feedback design with peak sensing for a bold, aggressive compression character
- Fixed compression ratios: 2:1, 4:1, 10:1, plus a “DS” (De-essing) mode
- Fixed release times: DS, 0.2, 0.4, 0.8, 1.6 seconds, and “Auto” mode
- Automatic make-up gain for consistent output levels
- Sidechain high-pass filter for precise low-frequency control
- Stereo link mode for cohesive stereo operation
- Adds a new, vintage SSL tonal flavor to any production
Product information "SSL B-Dyn"
The B-DYN faithfully recreates the iconic dynamics section of the original SL 4000 B console, renowned for its distinct sonic character and musical response. Unlike later SSL channel dynamics designs, the original 4000 B used the fader VCA as its gain element rather than a dedicated VCA, following a topology similar to the legendary SSL Bus Compressor. The B-DYN inherits this unique feedback design, delivering compression with rich tonal color, punch, and a musical, program-dependent response. Its “Auto” release setting mirrors the behavior of the original Bus Compressor, offering smooth, adaptive dynamics control that has defined classic SSL sound for decades.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Solid State Logic
Solid State Logic UK Limited
Spring Hill Road Begbroke Oxford OX15 6DS
marketing@solidstatelogic.com
KLANG:TECHNOLOGIES GMBH
Wespienstraße 8-10 52062 Aachen Germany
contact@KLANG.com
Processor Type: VCA Compressor/Limiter
Number of Channels: 1
Controls: Threshold, Ratio, Release, Range
Threshold: -20 dB to +10 dB (Compressor), -30 dB to +10 dB (Gate/Expander)
Ratio: 2:1, 4:1, 10:1, DS
Side Chain Inserts: Yes
Module Slot Size: Single
Manufacturer Part Number: 729737X1
