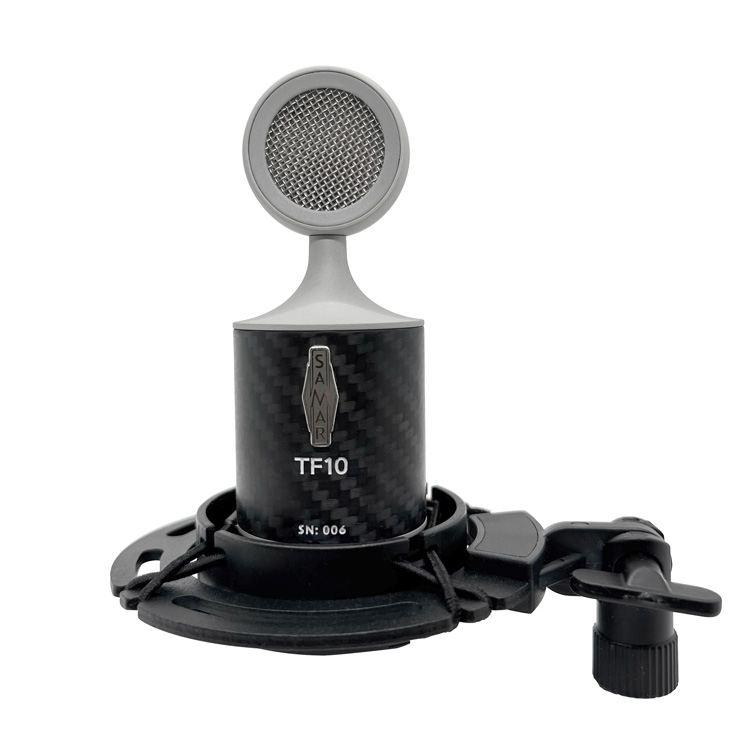

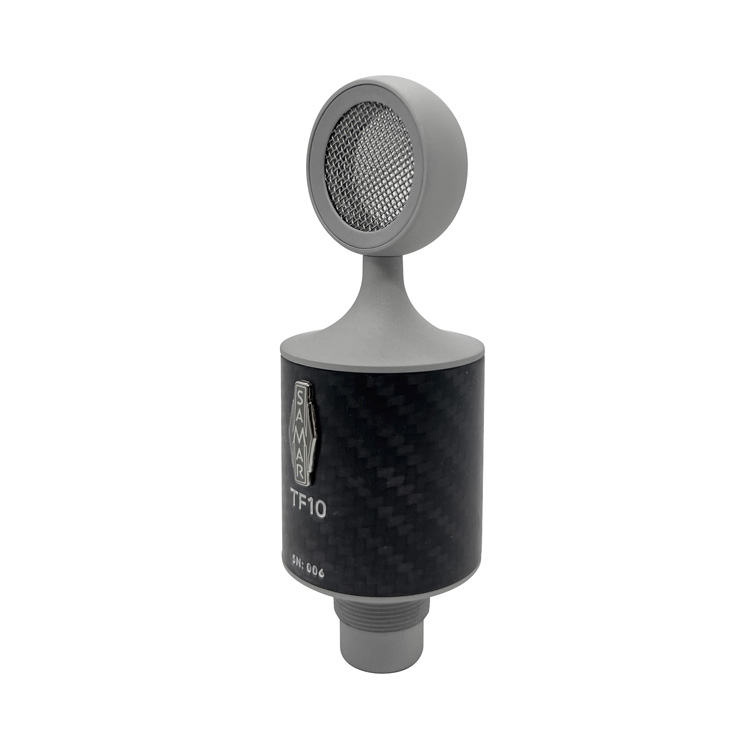

Samar TF10
- Handcrafted in the USA – built with precision and premium craftsmanship
- 5-year parts warranty – long-term reliability and protection
- 15-day satisfaction guarantee – risk-free trial with easy returns
Product information "Samar TF10"
The Samar Audio TF10 is part of a new generation of condenser microphones featuring a carbon fiber body, developed as a successor to the Omni8 TF08. Built with the same dedication to uncompromised quality and precision as Samar’s acclaimed ribbon microphones, the TF10 represents a significant advancement in condenser microphone design for modern high-resolution recording environments.
At its core is a proprietary cardioid capsule designed by Dr. Mark Fouxman. This unique single-sided, three-chamber design allows independent control over frequency shaping and time alignment, resulting in exceptional frequency balance and phase integrity, even in off-axis response. The elimination of parasitic capacitance and the absence of a traditional DC-to-DC bias converter further reduce distortion and enhance transparency, delivering a highly realistic and natural sound.
The microphone body is acoustically optimized with a distinctive “lollipop” capsule design, where the capsule is exposed without a surrounding enclosure. Mounted on a specially shaped acoustic lens and combined with an open mesh grille, this construction eliminates standing waves, reflections, and interference, ensuring maximum clarity and sonic accuracy.
The TF10’s internal circuitry uses premium components to achieve very low noise and minimal coloration, while offering exceptionally high headroom. It can handle extreme signal levels and deliver undistorted output up to 10V, making it suitable for demanding recording situations.
Housed in a carbon fiber body with excellent vibration damping, the TF10 ensures stable and resonance-free operation. It includes a high-quality shock mount and wooden storage box. With its neutral and uncolored sound, deep low-end response, and smooth, sibilance-free high frequencies, the TF10 is ideal for vocals, voice-over, instruments, and a wide range of professional studio and broadcast applications.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
SAMAR Audio Design
Samar Audio Design
3642 West 2100 South
Salt Lake City, UT 84120
https://www.samaraudiodesign.com
- Technical Data:
- Pickup pattern: cardioid
- Capsule dimension: pickup area 1"
- Sensitivity: -42.2 dB (7.8 mV/Pa)
- Noise floor: 12 dBA
- Phantom power: 48 V
- Output impedance: 39 Ohm
- Microphone dimensions: 1.735" × 4.95"
- Weight: 153 g (5.4 oz)
- Weight with shock mount: 301 g (10.6 oz)
