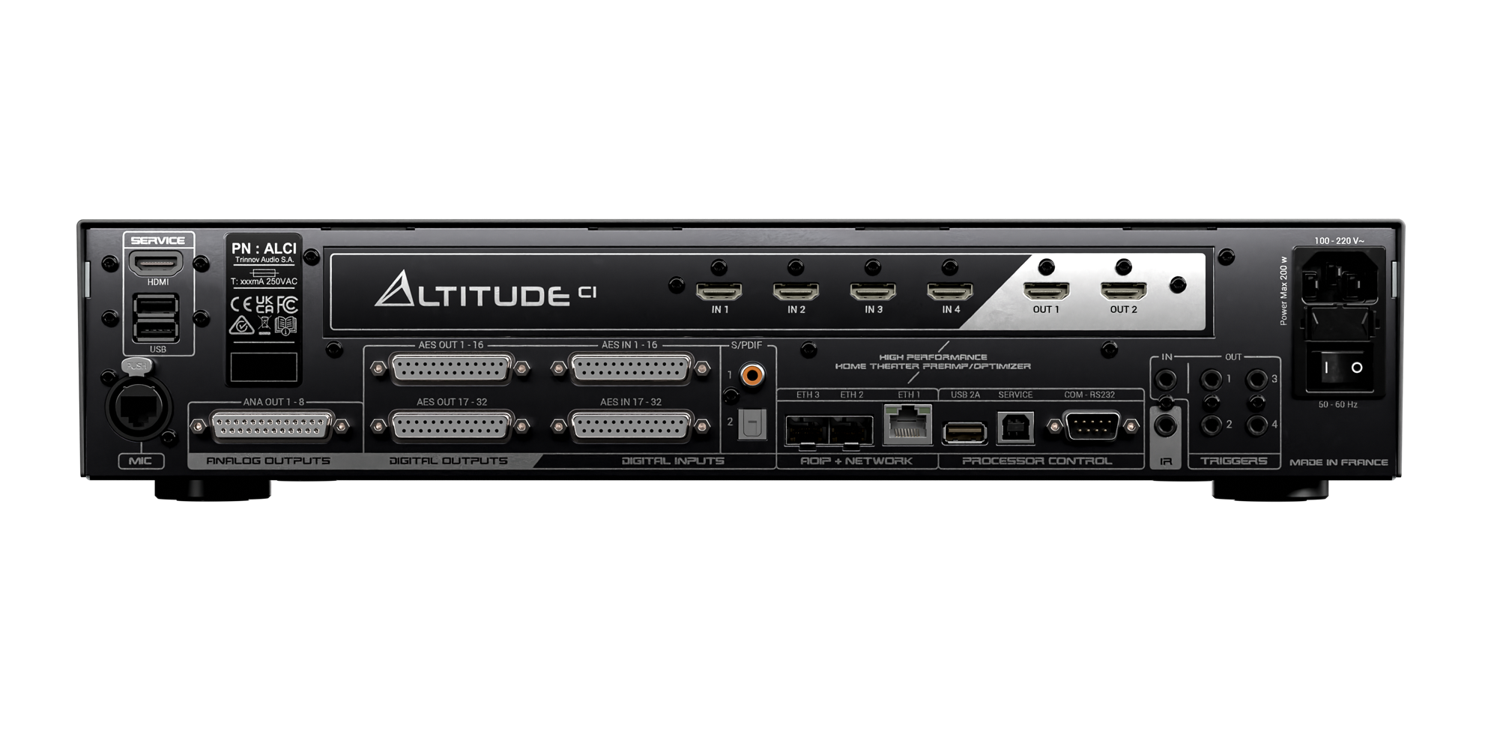

Trinnov Audio Altitude CI

Audio Processing

• Channel Count:Available from 8 to 32 outputs

• Future Option (2026):Up to 64 channels (build-to-order)

• Architecture:Software-based, 64-bit floating point processing

• Sample Rate:Up to 192kHz (channel dependent)

Immersive Audio Formats

• Decoded Formats:Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced

• Upmixers:Dolby Surround, DTS Neural:X, Auro-Matic

• Flexibility:Full-format decoding with channel-to-speaker assignment

HDMI Connectivity

• Inputs / Outputs:4x HDMI Inputs, 2x HDMI Outputs

• Version:HDMI 2.1 with HDCP 2.3

• Max bandwidth:40 Gbps on all inputs and outputs

• 8K Support:Up to 8K60 (4:2:0 chroma only)

• 4K Support:Up to 4K120 (with full 4:4:4 chroma)

• Chroma Subsampling:4:4:4, 4:2:2, 4:2:0 (format-dependent)

• HDR Support:HDR10, HDR10+, Dolby Vision, HLG

• Gaming Features:VRR, FRL and ALLM

• Other Features:On-screen display (OSD), full pass-through, ARC/eARC

Audio Inputs

• Dante:Up to 32 input channels

• Ravenna / AES67:Up to 32 input channels (48kHz)

• AES/EBU:Up to 32 inputs via 2x DB25

• S/PDIF:1x coaxial + 1x optical

• 3D Microphone:1x Ethercon input (provides power)

• Independence:All inputs are independent

• Future AoIP Input Capacity (2026):Up to 64 inputs (build-to-order)

Audio Outputs

• Dante:Up to 32 output channels

• Ravenna / AES67:Up to 32 output channels (48kHz)

• AES/EBU:Up to 32 outputs via 2x DB25

• Analog:8x balanced outputs via 1x DB25

• Analog Output Level:+18 dBu max

• THD+N (analog output):110dB (1kHz 0dBFS, 20kHz BW)

• Dynamic Range (analog output):115dB A-weighted (ref +18dBu)

• Channel Assignment:Any output channel to any physical audio output

• Output Types:Analog, digital or AoIP

Network Architecture & AoIP

• AoIP Support:Native Dante (hardware) and Ravenna/AES6 (software)

• Compatibility with Dolby media servers:via AES67

• Ethernet Ports:3x Gigabit ports: 1x RJ45, 2x SFP cages

• SPF module:1x RJ45 provided

• Networking Modes:Integrated switch, isolated, or redundant paths

• AoIP Simplification:DirectLink supported with Amplitude16

Control & Integration

• Full UI Access:macOS/Windows app or Web UI

• Mobile Remote Control:iOS & Android app

• Control Drivers:Crestron, Control4, Savant, RTI, AMX, Nice, AVA

• Physical Control:IR Input (Jack 3,5", IR receiver included), RS-232

• Triggers:1x input, 4x programmable outputs

• IR Remote Control:Optional

• Remote Management:Partner access through via my.trinnov.audio

• Front panel:5-inch touchscreen

• Power Modes:Standby & fast boot (firmware-ready)

Digital Acoustic Optimization

• Trinnov Technologies:Trinnov Optimizer, WaveForming & Remapping

• Calibration Workflow:Step-by-step guided setup

• 3D Mic Integration:Automatic compensation file upload

Audio Streaming

• Roon:Certified Roon Ready endpoint (soon)

• Audirvãna:Certified plãys with audirvãna (soon)

• UPnP:Flac, WAV, MP3, ogg

Power & Thermal

• Power Supply:100-240V auto-switching

• Max Consumption:140W (0,5W idle)

• Cooling:Temperature-controlled exhaust fans

• Heat Output:480 BTU/hr (max load)

• Mains fuse:2x T800mA

Chassis & Dimensions

• Form Factor:2RU rack-mountable

• Net Weight:8.6kg / 19 lbs

• Front Plate:Smoked-glass touchscreen in brushed aluminum

• Design:Minimalist, with removable ears/feet

• W x H x D (no ears/feet):438 x 88 x 371 mm / 17.24 x 3.46 x 14.61 in

• W x H x D (with ears/feet):482 x 97 x 371 mm / 18.98 x 3.82 x 14.61 in
