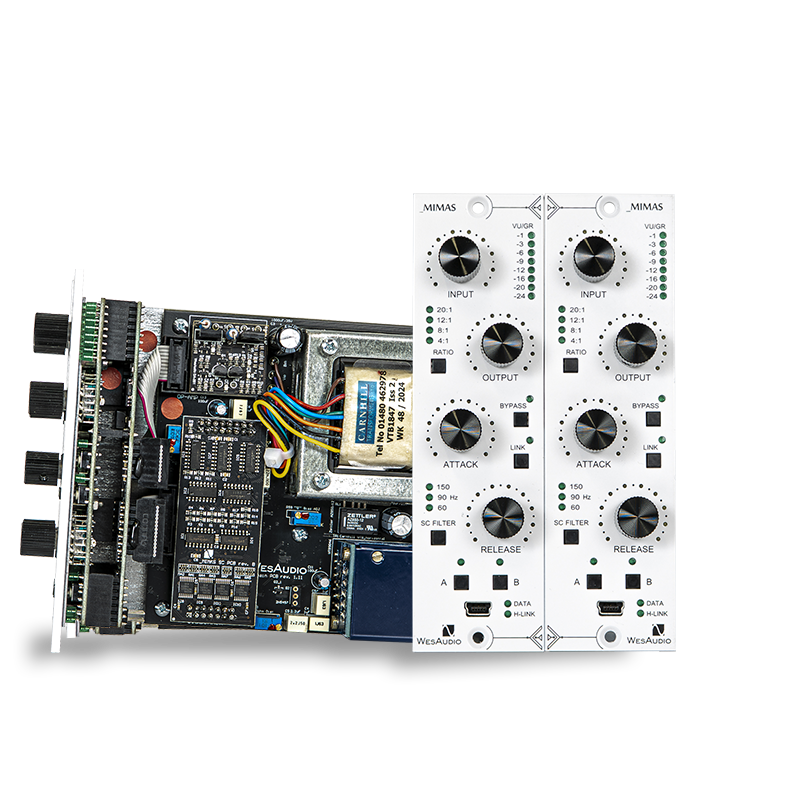

WesAudio Mimas (B-Ware)
FET compressor with classic 1176-style character, digital recall, Carnhill transformers, sidechain high-pass filter and saturation control. Designed for tracking, mixing and hybrid studio workflows with fast analog dynamics processing.
Manufacturer:
WesAudio
Features
- 100% analog FET compressor – 1176-style design with +24 dBu headroom for pristine audio quality
- True stereo calibration – two units precisely matched for stereo operation via dedicated plug-in
- Flexible ratio options – four ratio settings including legendary “All Buttons In” mode
- Modern DAW plug-in integration – designed for professional audio engineering workflows
- Linked parameter control – dedicated software links both channels for synchronized adjustments
- Switchable compression modes – selectable true stereo or dual mono via front-panel SC LINK control
- Carnhill transformers – premium transformer stage for enhanced audio character
Description
Product information "WesAudio Mimas (B-Ware)"
The _MIMAS Stereo Pair delivers a true stereo compression experience, ensuring precise and consistent performance across both channels.
With Dynamic Link Technology, the sidechain signal levels are dynamically adjusted via a specialized potentiometer, automatically compensating for component tolerances.
This guarantees perfect alignment between both units, maintaining accurate stereo imaging at all times.
Unwanted drift in the stereo field is effectively eliminated, even in demanding applications.
The _MIMAS Stereo Pair is a reliable solution for professional compression with exceptional precision and sonic accuracy.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
WesAudio
Wes Audio Sp. z o.o.
Zegadlowicza 54 PL-71-370 Szczecin Poland
info@wesaudio.com
Tech-Info
- Technical Data:
- Attack time: 20 µs – 800 µs
- Release time: 50 ms – 1100 ms
- Compression ratio: 4:1 / 8:1 / 12:1 / 20:1 / All-Button mode
- True Bypass
- Sidechain high-pass filter: 60 / 90 / 150 Hz
- Output impedance: 600 Ohm
- Frequency response: 20 Hz – 20 kHz (±1 dB)
- Signal-to-noise ratio: >83 dB
- Power consumption: 3 W (100 mA/+16V, 60 mA/-16V)
- Dimensions: 38 × 133 × 145 mm
- Box dimensions: 105 × 162 × 234 mm
- Unit weight: 0.95 kg
- Box weight: 1.2 kg
- Warranty: 2 years
