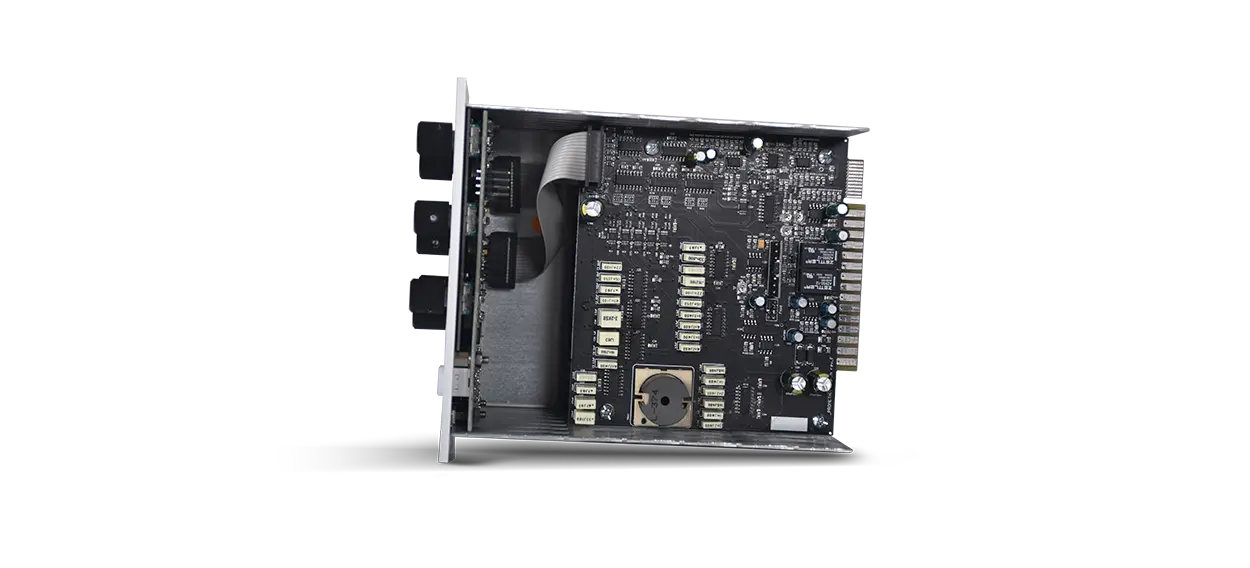

WesAudio PROMETHEUS Eclipse Edition
Passive analog equalizer with Pultec-style inductor design, digital recall, Mid-Side processing and harmonic THD control. Designed for mixing, mastering and hybrid studio workflows with musical analog tone shaping.
Manufacturer:
WesAudio
Features
- +24 dBu headroom – high dynamic range for precise signal processing
- Flexible operating modes – supports Stereo, Dual Mono and Mid/Side applications
- Passive equalizer design – based on classic Pultec-style inductors
- Analog inductor circuitry – delivers classic tonal shaping and musical response
- Proprietary THD control – adjustable harmonic distortion for added analog character
- DAW/Live plug-in integration – flexible control with instant recall functionality
- 6 touch-sensitive encoders – ideal for recording automation and hands-on control
Description
Product information "WesAudio PROMETHEUS Eclipse Edition"
The _PROMETHEUS is a fully analog passive EQ with +24dBu of headroom, combining classic Pultec-style warmth with modern innovations.
Its musical and rich tonal character allows for natural sound shaping, adding depth and presence to your audio signals.
The modern design enables instant recall of your analog settings through a highly flexible plugin.
Like all ng500 products, the _PROMETHEUS integrates seamlessly into your DAW environment.
Connection and control are easily managed via the front panel USB port or through the _TITAN chassis.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
WesAudio
Wes Audio Sp. z o.o.
Zegadlowicza 54 PL-71-370 Szczecin Poland
info@wesaudio.com
Tech-Info
- Technical Data:
- Frequency response: 10 Hz – 150 kHz (-2 dB)
- THD+N: < 0.01% (1 kHz, 0 dBu)
- Input impedance: 10 kOhm
- Output impedance: < 100 Ohm
- Maximum signal level: +24 dBu
- Crosstalk: < -100 dB
- THD (MID switch): 1%
- THD (HIGH switch): 2.5%
- Power consumption: 70 mA per rail
- Dimensions: 76 × 133 × 158 mm
- Box dimensions: 105 × 162 × 234 mm
- Unit weight: 0.7 kg
- Box weight: 0.9 kg
- Warranty: 2 years
