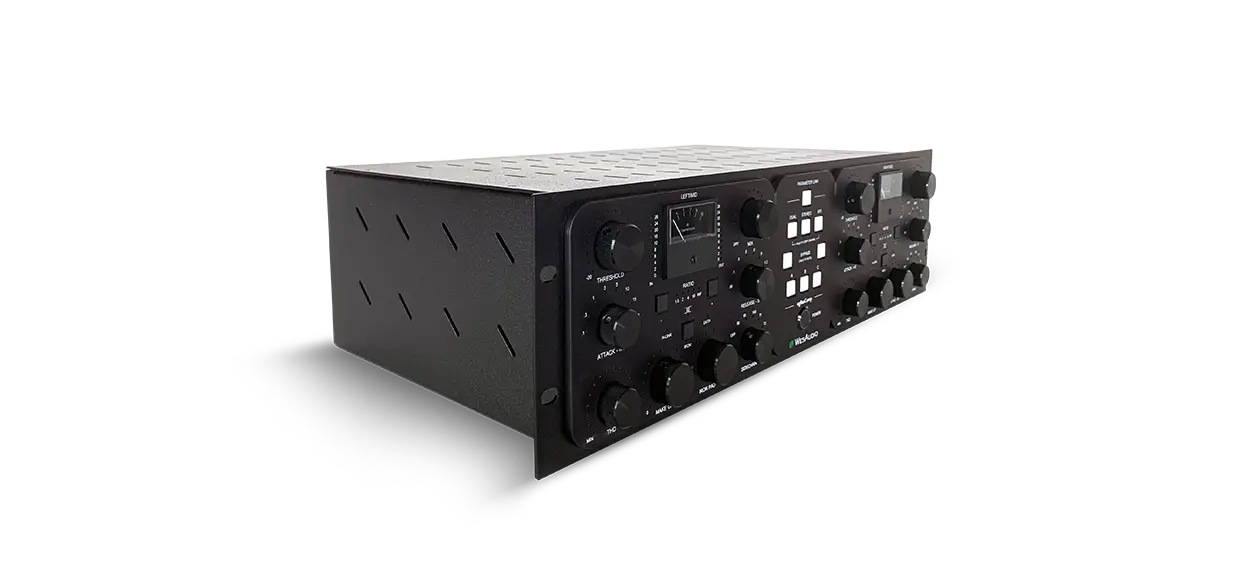

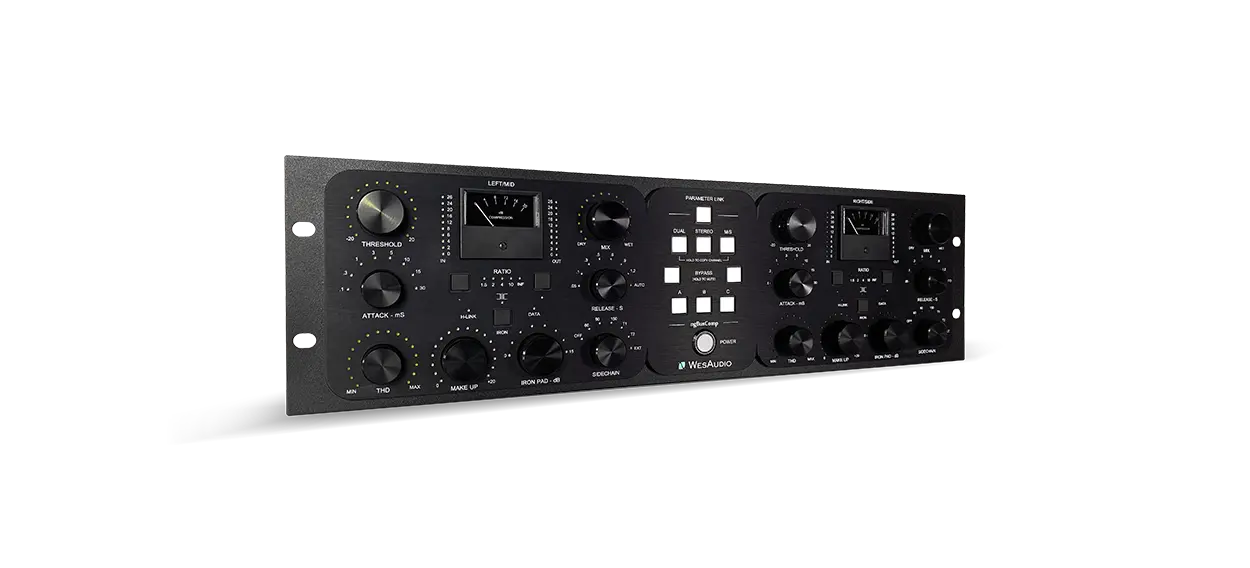

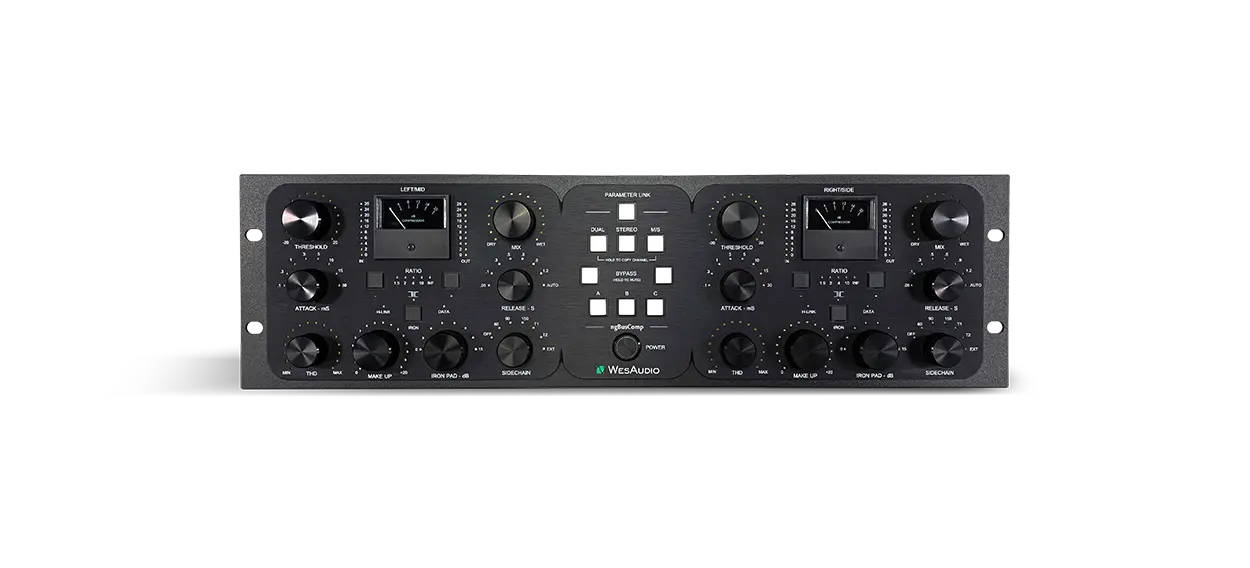

WesAudio ngBusComp
- Fully analog design – pure analog signal path with +24 dBu headroom for exceptional clarity
- Dual mono and stereo modes – flexible compression options for different applications
- Mid-side processing – enhanced control over stereo imaging and dynamics
- Dual output stages – two distinct output stages for versatile sound shaping
- IRON PAD attenuator – passive attenuation for transformer-driven saturation in IRON mode
- DAW integration with real-time recall – seamless plug-in control and instant parameter recall
- Standalone software control – manageable via the WesAudio software application
Product information "WesAudio ngBusComp"
For over 40 years, the stereo bus compressor has been a cornerstone in mixing, often referred to as the “mix bus glue.” WesAudio takes this classic further with the ngBusComp — a fully analog compressor offering dual mono, stereo, and mid-side operation, along with digital recall for seamless DAW integration.
The ngBusComp delivers versatile compression with Carnhill transformers, THD control, and advanced automation features, blending analog warmth with modern digital precision.
Despite its advanced digital control, the unit maintains a fully analog signal path and provides an impressive +24dBu of headroom, ensuring exceptional audio quality and the renowned VCA compression sound.
Its design includes four THAT 2181 VCAs in the signal path and an additional VCA for each channel’s sidechain detector, delivering high performance and precise dynamic control.
The ngBusComp combines classic sonic character with modern workflow integration, making it an ideal choice for professional mixing and mastering applications.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
WesAudio
Wes Audio Sp. z o.o.
Zegadlowicza 54 PL-71-370 Szczecin Poland
info@wesaudio.com
- Technical Data:
- THD+N (@ 0 dBu): < 0.006%
- Frequency response: 0–300 kHz (-3 dB)
- Input impedance: >10 kOhm
- Output impedance: <50 Ohm
- Crosstalk: >90 dB
- Maximum input level: +24 dBu
- Maximum output level: +24 dBu
- Dynamic range: >120 dB
- Attack: 0.1 / 0.3 / 1 / 3 / 10 / 30 ms
- Release: 0.1 / 0.3 / 0.6 / 0.9 / 1.2 s / Auto
- Ratio: 1.5 / 2 / 4 / 10 / INF
- Sidechain filter: 60 / 90 / 150 Hz / T1 / T2
- THD: 0% to 8%
- Power consumption (max): 20 W
- Dimensions: 135 × 483 × 252 mm
- Box dimensions: 274 × 550 × 382 mm
- Unit weight: 7.95 kg
- Box weight: 10 kg
- Warranty: 2 years
