WesAudio ngLEVELER
- 16 channels of analog automation – with total recall for seamless workflow
- High headroom – +25 dBu input and +28 dBu output for optimal signal processing
- 6 dB passive attenuator – PAD for handling high-level signals
- Low noise and distortion – THD+N of just 0.01%
- Channel MUTE and SOLO – independent control on each channel
- HUI controller integration – streamlined control within production setups
- Proprietary THD saturation – 16 channels of analog harmonic coloration
Product information "WesAudio ngLEVELER"

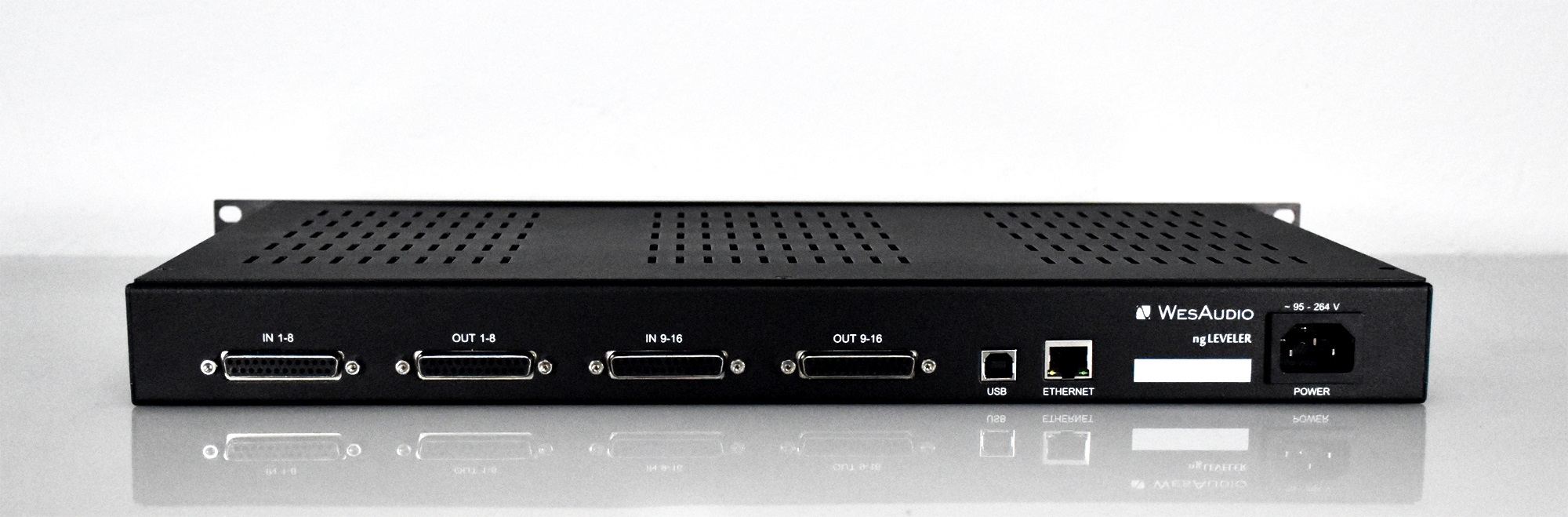

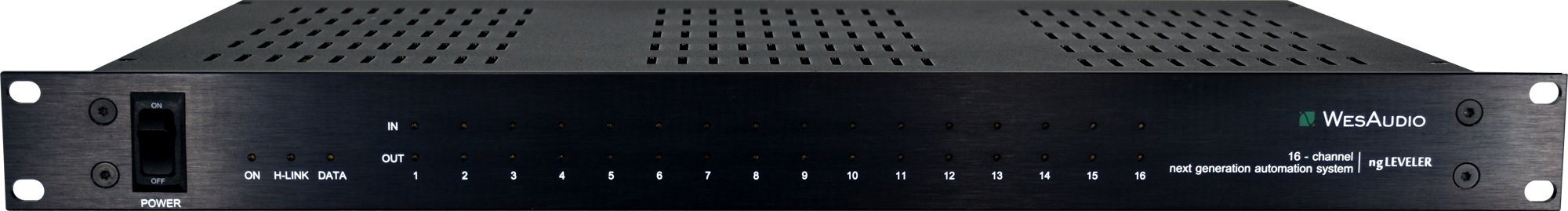

The ngLEVELER is a 16-channel next-generation automation system designed for seamless integration into modern studio workflows. As a “Next Generation Leveler,” it delivers advanced control and flexibility for professional audio production.
In addition to its powerful automation engine, the unit provides analog saturation on each channel, adding presence, depth, and character to your tracks.

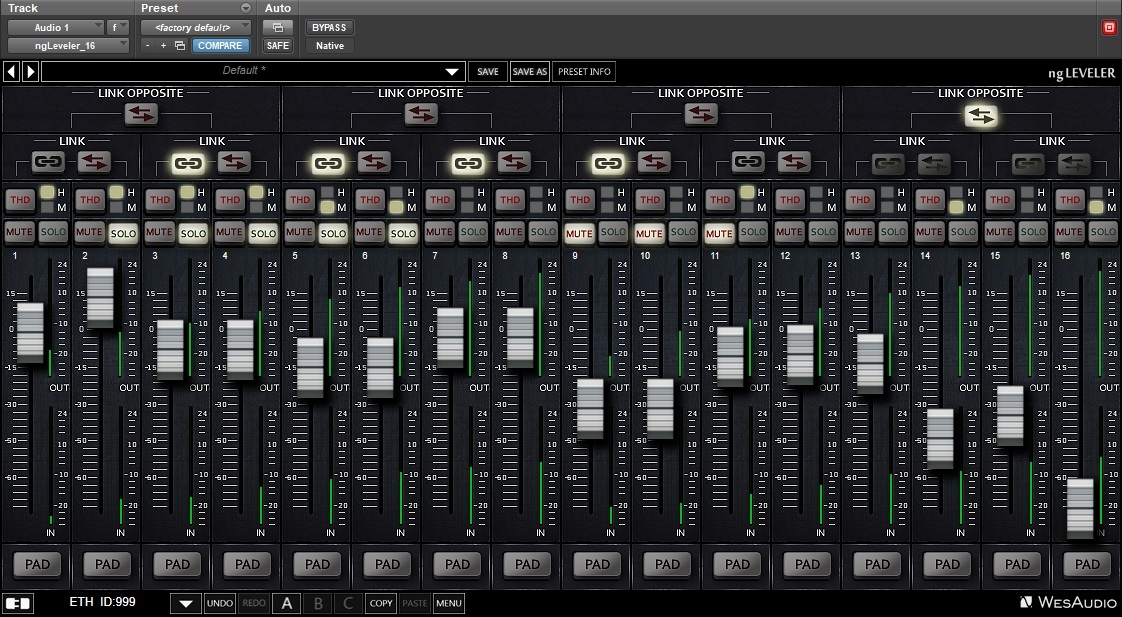

It allows you to adjust settings dynamically across different sections of a song. Simply draw automation lines in your DAW, and the analog device will follow the changes accurately in real time.
You can also use a HUI controller to record automation directly into your DAW, making it even easier to fine-tune parameters for evolving mixes.
The ngLEVELER combines analog warmth with modern automation control, making it an ideal solution for high-end mixing and production environments.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
WesAudio
Wes Audio Sp. z o.o.
Zegadlowicza 54 PL-71-370 Szczecin Poland
info@wesaudio.com
- Technical Data:
- THD+N (20 Hz–20 kHz @ 0 dBu): < 0.008%
- Frequency response: 0–250 kHz (-3 dB)
- Input impedance: > 10 kOhm
- Output impedance: < 50 Ohm
- Crosstalk: > 100 dB
- Maximum input level: +25 dBu
- Maximum output level: +28 dBu
- Dynamic range: > 118 dB
- Hardware digital resolution: approx. 2500 steps per channel
- Power consumption (max): 20 W
- Dimensions: 44 × 483 × 260 mm
- Box dimensions: 274 × 550 × 382 mm
- Unit weight: 3.6 kg
- Box weight: 4.6 kg
- Warranty: 2 years
