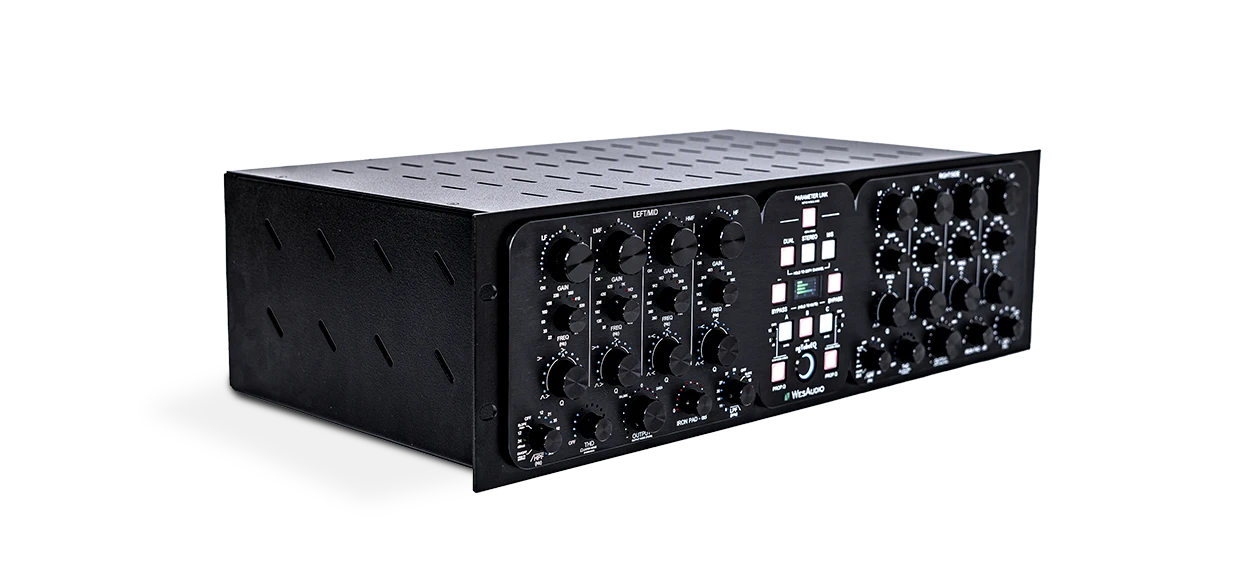

WesAudio ngTubeEQ
- Pure analog equalizer – impressive 26 dBu headroom for high-clarity signal processing
- Four passive inductor-based bands – frequency coverage from 22 Hz to 28 kHz for musical EQ shaping
- Variable high-pass and low-pass filters – active filters with full bypass option

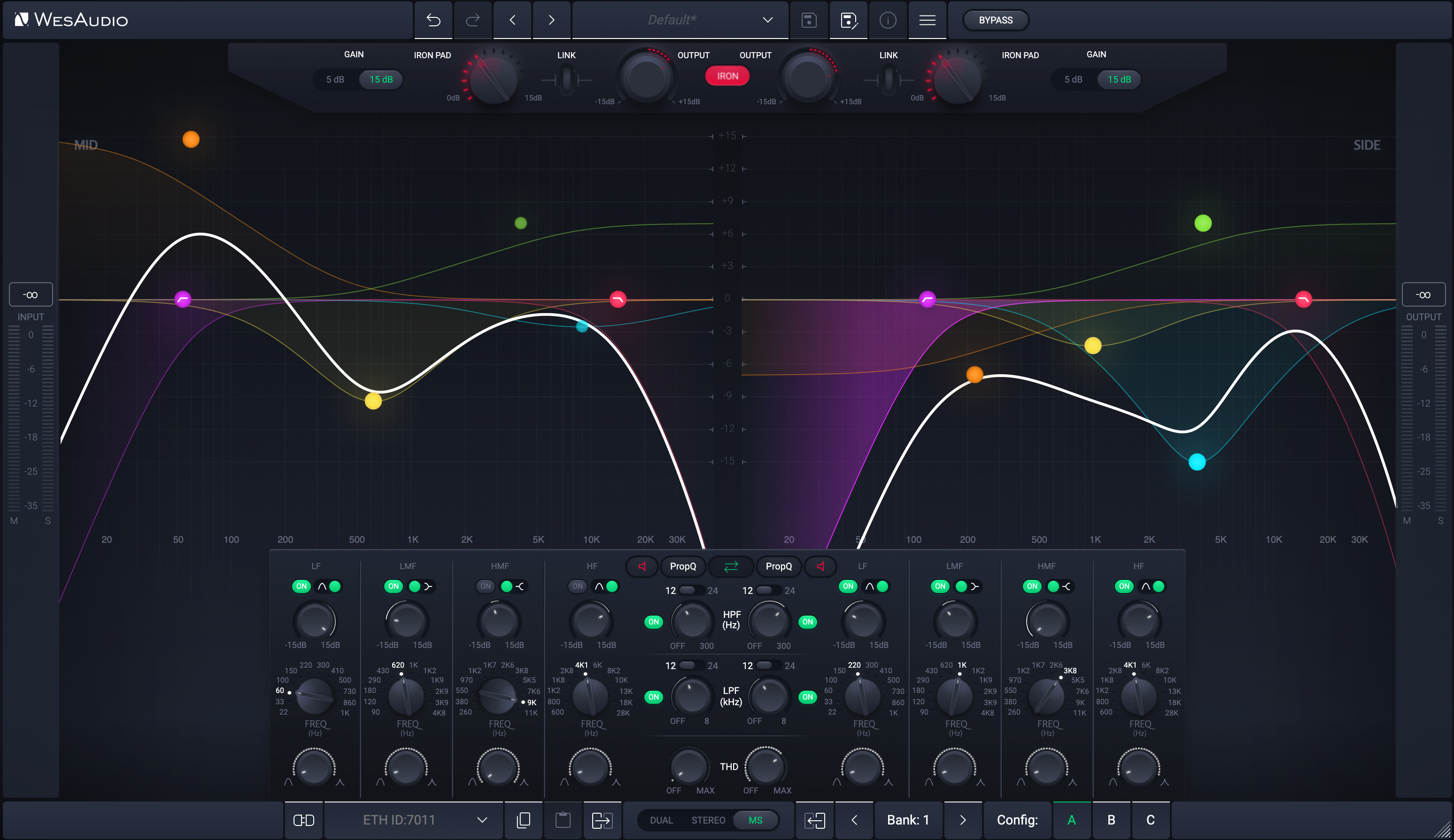

- DAW/Live plug-in control – quick parameter recall and flexible remote control

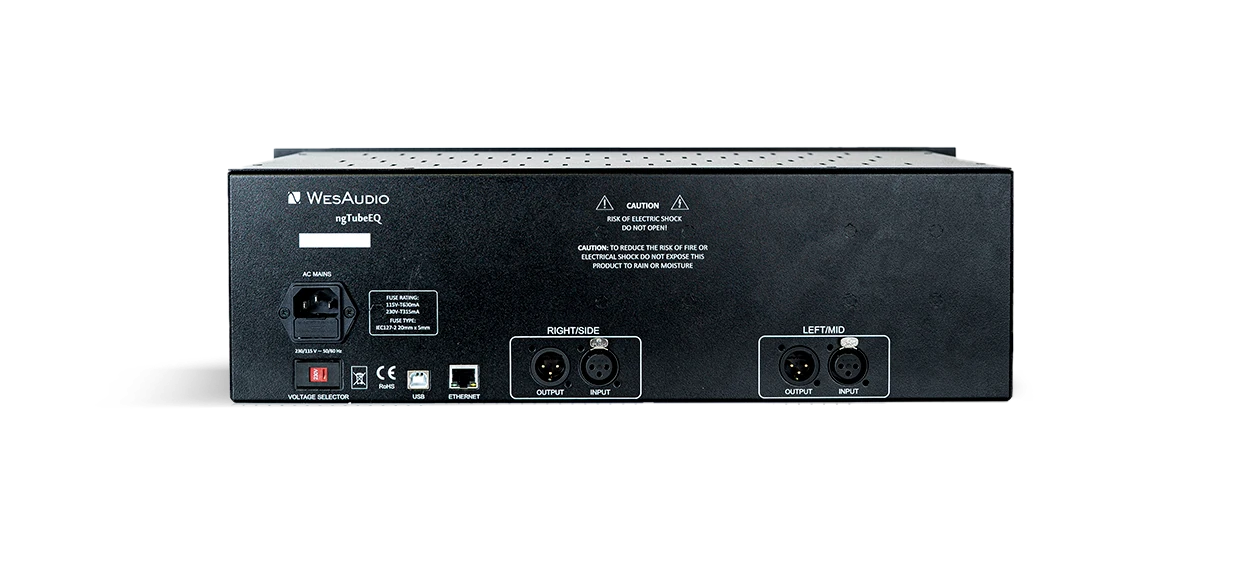

- Dual output design – tube and Carnhill transformer path with IRON PAD, plus electronically balanced output
- Adjustable THD control – tailor harmonic saturation and sound character
- Selectable Q modes – choose between Proportional Q and Constant Q for flexible equalization
Product information "WesAudio ngTubeEQ"
For decades, tube equalizers have been cherished for their rich, musical sound, shaping the sonic character of countless classic recordings. The ngTubeEQ takes this legacy further with a refined analog experience enhanced by modern technology.
It delivers a fully analog sound while integrating seamlessly into today’s digital studio workflows, offering both authenticity and flexibility.
With its lush tonal quality and intuitive digital control, the ngTubeEQ is designed to become an essential tool in professional studio environments.
By combining vintage character with contemporary functionality, it allows for precise and creative sound shaping across a wide range of applications.
Experience the best of both worlds – the soul of vintage sound and the convenience of modern digital control with the ngTubeEQ.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
WesAudio
Wes Audio Sp. z o.o.
Zegadlowicza 54 PL-71-370 Szczecin Poland
info@wesaudio.com
- Technical Data:
- Frequency response Normal (Green): 5 Hz – 100 kHz (-0.5 dB)
- Frequency response Tube (Red): 20 Hz – 25 kHz (0.5 dB)
- Dynamic range: 122 dB
- THD+N Normal (Green): 0.0025% (+4 dBu), 0.009% (+18 dBu)
- THD+N Tube (Red): 0.04% (+4 dBu), 0.016% (+18 dBu)
- Noise: -93 dBu (A-weighted)
- Crosstalk: -120 dB (40 Hz), -100 dB (20 kHz)
- Maximum input level: +28 dBu
- Maximum output level: +27 dBu
- Input impedance: 44 kOhm
- Common mode rejection ratio: 70 dB
- Output impedance Normal (Green): 100 Ohm
- Output impedance Tube (Red): 150 Ohm
- Dimensions: 135 × 483 × 252 mm
- Box dimensions: 274 × 550 × 382 mm
- Unit weight: 8.8 kg
- Box weight: 11.5 kg
- Power consumption (max): 45 W
