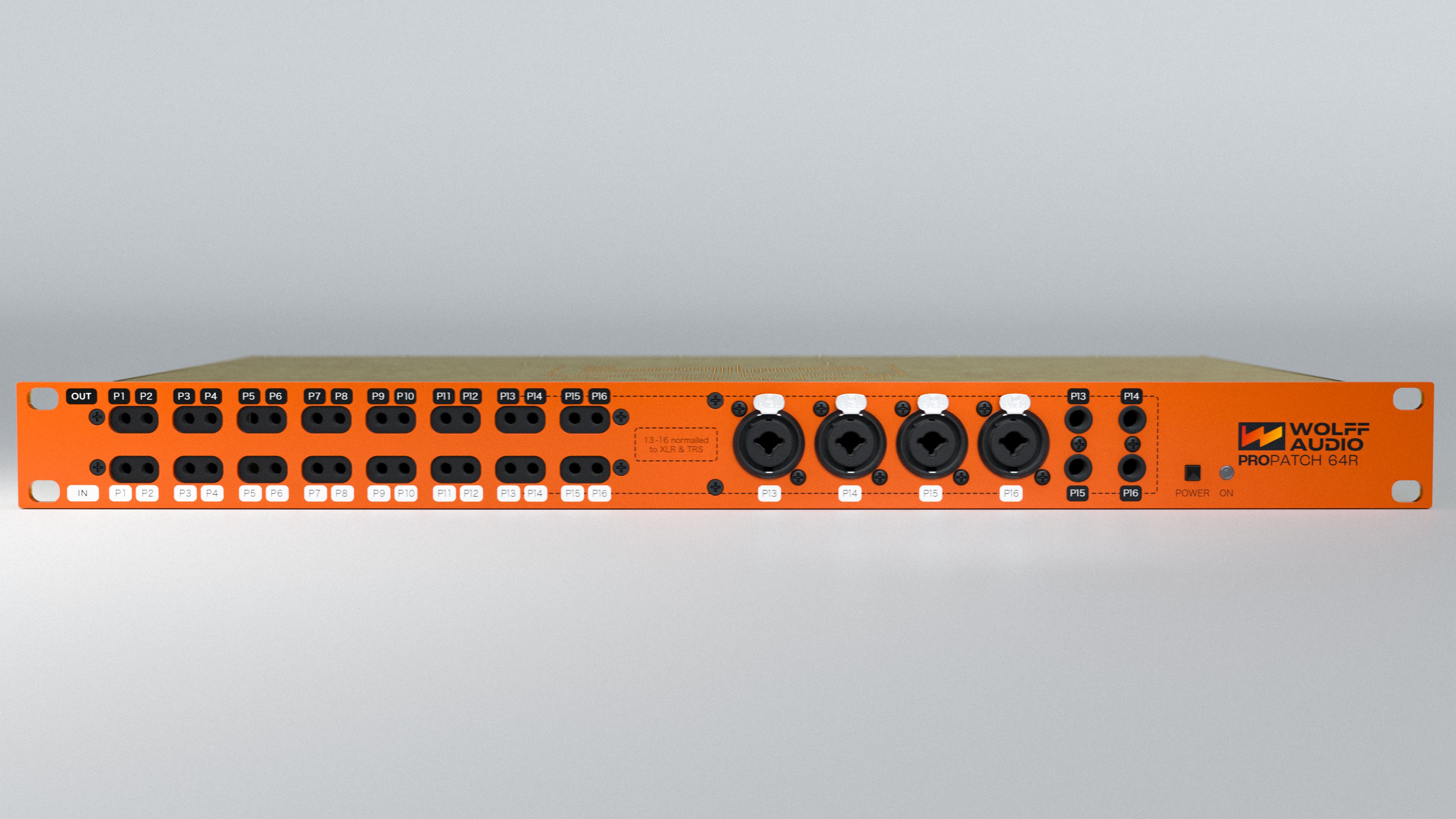

Wolff Audio ProPatch 64R
Software-controlled 32x32 analog patchbay with relay-based passive switching, preset recall, and support for mic, line, MIDI, CV, and phantom power routing in professional studio environments.
Features
- 32x32 analog patchbay configuration
- Relay-based passive signal switching
- No active electronics in signal path
- Software control via macOS, Windows, and iPadOS
- Supports mic, line, MIDI, CV, and phantom power signals
- Preset storage and recall functionality
- Rackmount studio integration design
Description
Product information "Wolff Audio ProPatch 64R"
Software-controlled analog patchbay with 32 inputs and 32 outputs in a rackmount format. Designed for professional studio routing applications using relay-based switching without active electronics in the signal path. Supports microphone, line, MIDI, control voltage, and phantom power routing with software-based preset management and remote control functionality.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Tech-Info
- Product Type: Digitally Controlled Analog Patchbay
-
I/O Configuration:
- 32 Inputs
- 32 Outputs
-
Routing:
- Any-to-any signal routing
-
Signal Path:
- Relay-based passive switching
- No active electronics
- Fully balanced architecture
-
Supported Signal Types:
- Microphone level
- Line level
- Phantom power
- MIDI
- Control voltage
-

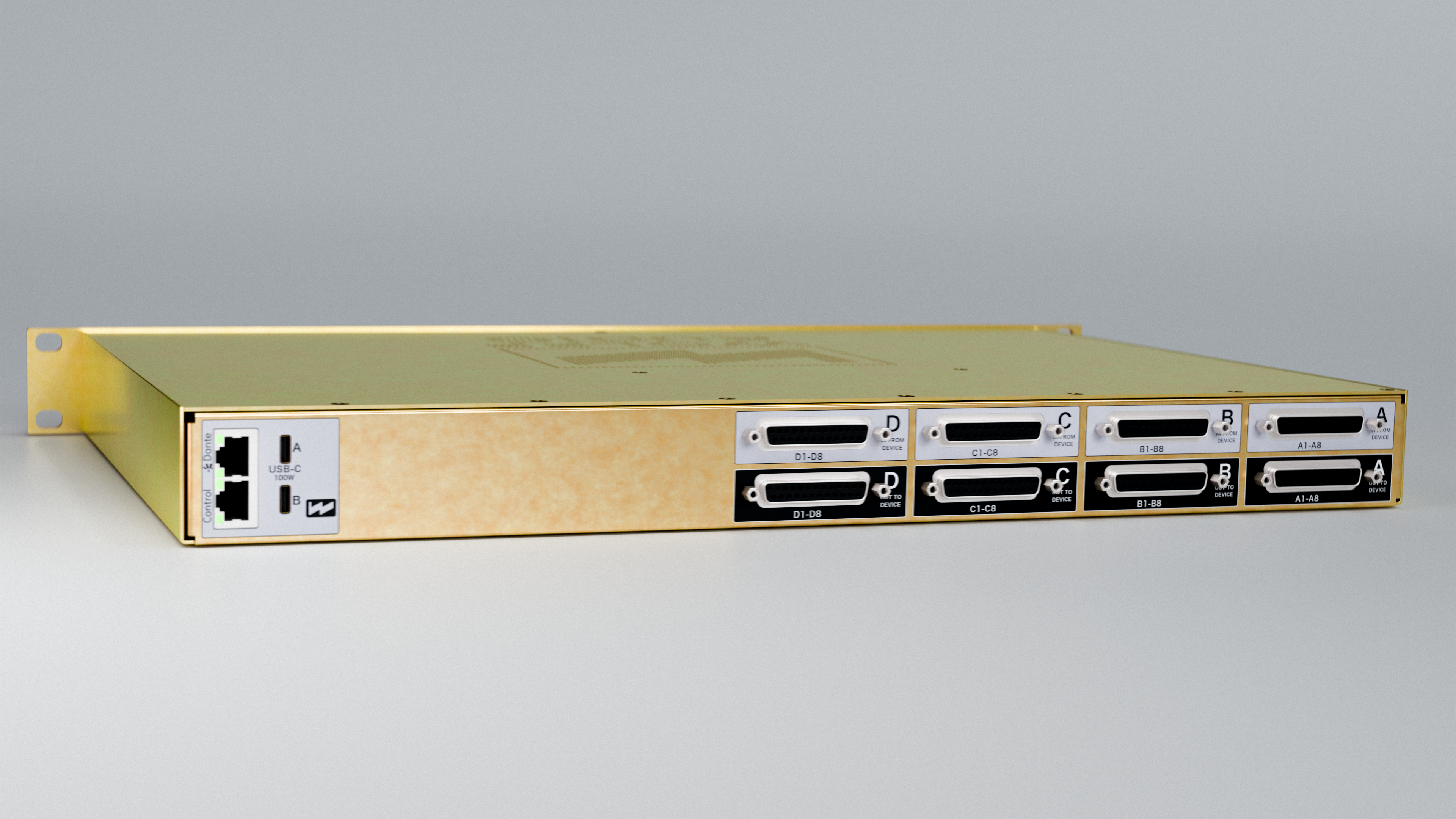

Connectivity:
- DB25 analog I/O
- Ethernet
- USB-C
-
Software Compatibility:
- macOS
- Windows
- iPadOS
-
Functions:
- Preset storage and recall
- Remote routing control
- A/B signal routing
- Insert routing
-
Construction:
- Rackmount chassis
- Fanless operation
-
Applications:
- Studio routing
- Hybrid studio systems
- Outboard integration
- Recording and mixing workflows
