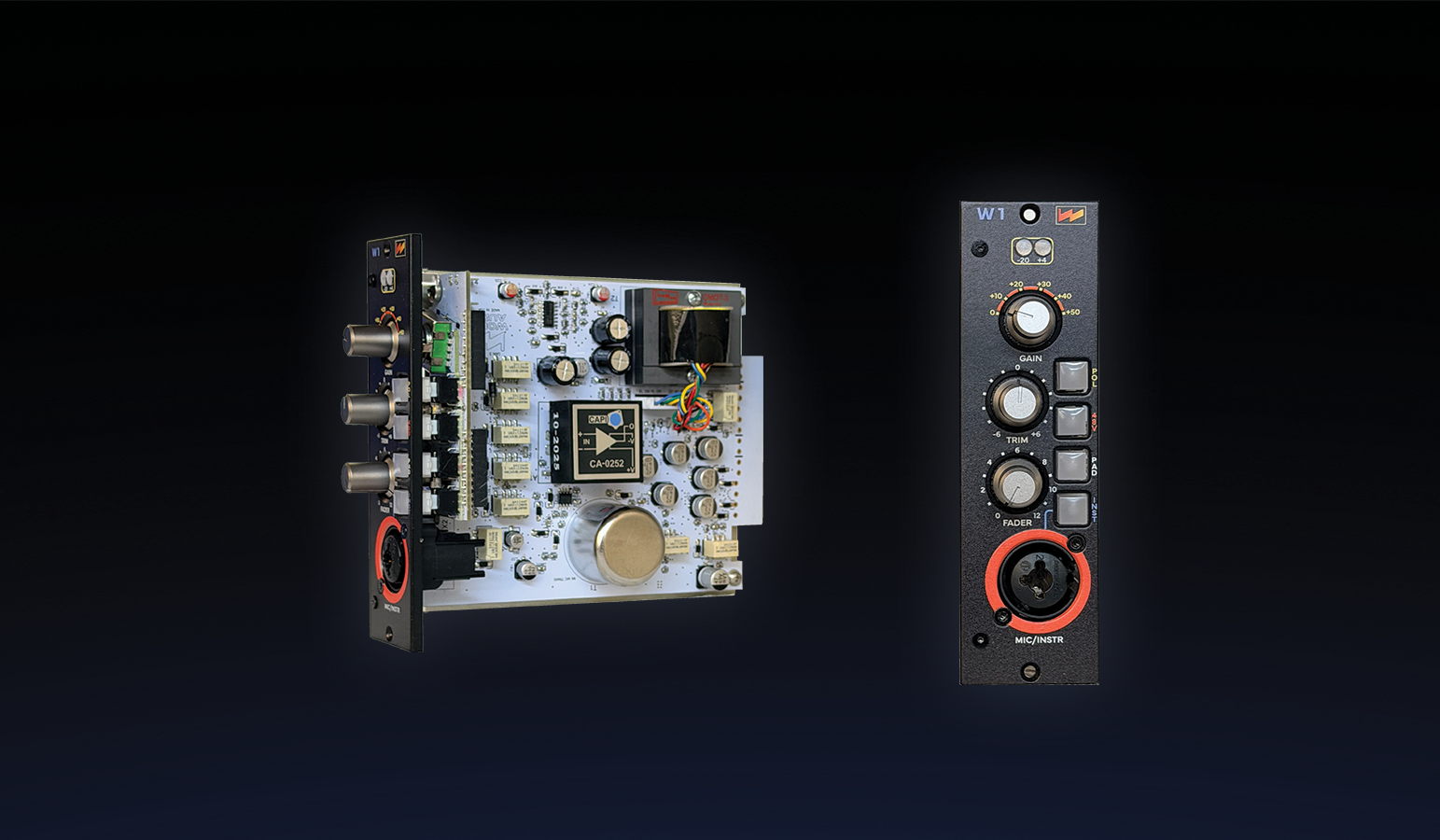

Wolff Audio W1
Single-channel 500 series microphone preamp with Cinemag transformers, relay-controlled signal path, dual-stage gain architecture, and front-panel mic/instrument input for professional studio recording applications.
Features
- Single-channel 500 series microphone preamp
- Custom Cinemag input and output transformers
- Relay-controlled signal path and switching
- Gain selectable in 10 dB steps up to 50 dB
- Additional ±6 dB trim control
- Dedicated output fader between gain stages
- Front-panel Neutrik XLR/TRS combo input
Description
Product information "Wolff Audio W1"
Single-channel 500 series microphone preamp based on the circuitry and transformer topology used in Wolff Audio recording consoles. Designed for studio recording applications requiring high headroom, flexible gain staging, and transformer-balanced analog signal processing. Features relay-controlled switching, dual-stage gain architecture, and front-panel microphone and instrument connectivity.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Tech-Info
- Product Type: 500 Series Microphone Preamplifier
- Channels: 1
- Format: 500 Series Module
-
Transformers:
- Custom Cinemag input transformer
- Custom Cinemag output transformer
-
Gain Structure:
- 10 dB gain steps up to 50 dB
- ±6 dB trim control
- Approx. 56 dB maximum gain
-
Architecture:
- Dual-stage gain design
- Dedicated output fader between gain stages
-
Switching:
- Relay-controlled 20 dB pad
- Relay-controlled phantom power
- Relay-controlled line switching
-
Additional Functions:
- Polarity reverse
- Output dim function
-
Metering:
- Dual-mode LED metering
- Clip indication
-
Inputs:
- Front-panel Neutrik XLR/TRS combo input
- Microphone input
- Instrument input
-
Applications:
- Studio recording
- Drum recording
- Vocal recording
- Instrument tracking
