Aktiver Antennen-Kombiner für evolution wireless G4 Systeme. Der AC 41 betreibt bis zu vier Stereosender der ew-Serie mit einer gemeinsamen Antenne. Die Spannungsversorgung der SR IEM G4 Sender erfolgt vom Netzteil NT 3-1 (im Lieferumfang des SR IEM G4) über die BNC-Kabel und macht somit den Einsatz zusätzlicher Netzteile obsolet.
Bis zu 4 Wireless Stereosender mit einer Antenne verwenden
Spannungsversorgung der SR IEM G4 Sender vom Netzteil über die BNC-Kabel, keine weiteren Netzteile erforderlich
Kompatibel mit G3 und G4 Systemen
Overview
The MAT 133-S is a rugged and unobtrusively designed table stand. It provides a stable ground for the metal gooseneck MZH 3015 with a length of 150 mm for use with the ME 34, ME 35 and ME 36 microphone heads. The rugged gooseneck is fitted with a balanced, floating XLR-3 output, enabling the microphone to be powered by the SL DI 4 XLR.The ME 36 is a condenser microphone capsule. This mini shotgun microphone features for an outstanding background noise rejection.The SL DI 4 XLR four input Dante-preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features
Highest speech-intelliibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SLDI 4 XLR
4 MAT 133-S
4 MZH 3015
4 ME 36
Overview
The MEB 114-S is a sturdy on-table boundary layer microphone that constitutes an improvement for any conferencing system. It features a programmable microphone button and a bi-color LED ring for status indication. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114-S ensures the best speech intelligibility.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features
Great speech-intelliibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SLDI 4 XLR
4 MEB 114-S
Overview:
The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features:
Great speech-intellibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SL DI 4 XLR
4 MAT 133-S
4 MEG 14-40
Overview
The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR.
Features
Great speech-intellibility
Phantom power via PoE
Remote controllable gain level
Daisy-chaining possible
What's in the box?
1 SL DI 4 XLR
4 MAT 133-S
4 MEG 14-40
General DescriptionRound off your Sennheiser Tourguide System with the EK 2020-D receiver. Whether conferences, guided tours or hearing assistance: this extremely sturdy and versatile bodypack receiver provides excellent audio and ease of use for your guests. The EK 2020-D can be used with headphones or an induction neckloop for transmitting the sound to hearing aids equipped with a T coil. Digital transmission ensures optimum reception quality, with a range of up to 100 metres outdoors and around 50 metres indoors. The backlit receiver display shows all settings at a glance. Of course, the bodypack receiver can be used in mixed systems with stethoset receivers. EK 2020-D: just right for everyone. All your guests need to do is connect their headphones or induction neckloop to the receiver. That’s it! The receiver can conveniently be clipped to the shirt pocket or worn on a lanyard. When no signal is received, or when the headphones or neckloop are disconnected, the receiver will automatically switch off to save battery life. The operating time is up to 16 hours.Features
Digital RF signal transmission
Intuitive operating concept
16 hours battery life
Free choice of headphones or induction loop
Backlit LC display
Sturdy housing
Technical Data
Modulation 2 FSK
RF frequency range 863 - 865 MHz
Tourguide mode 6 channels in parallel
Conference mode 8 channels in parallel
THD, total harmonic distortion < 1 % at 10 mW
Headphone connector Max. 10 mW /32 Ohm
Akkudaten 1500 mAh, Lithium-Polymer
Operating time (Accupack) approx. 16 h
Operating temperature 0…50°C
Dimensions 98 x 61 x 24 mm
Weight incl. Accu approx. 78 g
General DescriptionRound off your Sennheiser Tourguide System with the EK 2020-D receiver. Whether conferences, guided tours or hearing assistance: this extremely sturdy and versatile bodypack receiver provides excellent audio and ease of use for your guests. The EK 2020-D can be used with headphones or an induction neckloop for transmitting the sound to hearing aids equipped with a T coil. Digital transmission ensures optimum reception quality, with a range of up to 100 metres outdoors and around 50 metres indoors. The backlit receiver display shows all settings at a glance. Of course, the bodypack receiver can be used in mixed systems with stethoset receivers. EK 2020-D: just right for everyone. All your guests need to do is connect their headphones or induction neckloop to the receiver. That’s it! The receiver can conveniently be clipped to the shirt pocket or worn on a lanyard. When no signal is received, or when the headphones or neckloop are disconnected, the receiver will automatically switch off to save battery life. The operating time is up to 16 hours.Features
Digital RF signal transmission
Intuitive operating concept
16 hours battery life
Free choice of headphones or induction loop
Backlit LC display
Sturdy housing
Technical Data
Modulation 2 FSK
RF frequency range 926 - 928 MHz
Tourguide mode 6 channels in parallel
Conference mode 8 channels in parallel
THD, total harmonic distortion < 1 % at 10 mW
Headphone connector max. 10 mW /32 Ohm
Impedance min. 32 Ohm
Operating time (Accupack) ca. 16 h
Akkudaten 1500 mAh, Lithium-Polymer
Operating temperature 0…50°C
Dimensions 98 x 61 x 24 mm
Weight incl. Accu 78 g
General Description
The EM 3731/3732-II series is characterized by high transmission reliability, exceptional audio quality and simple operation. A switching bandwidth of up to 184 MHz, more than double that of its predecessors, combined with a range of connection options guarantee optimal flexibility for daily use. The integrated Ethernet connection means that the receivers can be linked into any network. The AES3/EBU digital audio interface facilitates a direct connection to digital mixing consoles. Sennheiser's "Wireless Systems Manager" (WSM) software allows you to monitor and control all receiver operating statuses remotely. In addition, this versatile software now lets you reset the channel allocation at any time and store it as a "Scene". A new innovative WSM feature for multi-channel operation is the immediate identification of the channel allocated to each receiver at the press of a button. A high-contrast display and intuitive user interface complete the scope of features of this high-quality receiver. The EM 3732-II is available in L, N and P frequency variants.
Features
Up to 184 MHz switching bandwidth
Digital AES 3 audio output with external word clock synchronisation
Integrated antenna splitter for daisy-chaining up to eight devices
Intuitive user interface with OLED display
Network integration via ethernet for use of the WSM software on Macs and PCs
DSP-based HiDyn plus and HDX expander
Transformer balanced audio outputs
Scanning function
Frequencies adjustable in steps of 5 kHz
Squelch setting displayed continously
Command audio output ( EM 3732 COM-II only)
Delivery Includes
EM 3731-II or EM 3732-II or EM 3732 COM-II
3 mains cables (with EU, UK and US plugs)
2 BNC antenna cables (50 Ω) for daisy-chaining
1 BNC word clock cable (75 Ω) for daisy-chaining
4 rubber feet
1 RJ 45 ethernet cable
2 antennas
1 instruction manual
1 CD-ROM with the Sennheiser Wireless Systems Manager Software
1 frequency table
Technical Data
RF frequency range L: 470 – 638 MHz, N: 614 – 798 MHz, P: 776 – 960 MHz
Switching bandwidth Up to 184 MHz
Receiving frequency 6 frequency banks with up to 59 factory-preset frequencies each, 1 frequency bank with up to 60 freely selectable frequencies (tunable in steps of 5 kHz)
Adjacent channel rejection typ. 75 dB / +-400 kHz, typ. 80 dB /+-800 kHz
Squelch threshold 13 steps (0 ... 30 μV)
Intermodulation spacing >= 80 dB
Antenna connector 2 BNC connectors (50 Ω)
Cascadable 2 BNC connectors (50 Ω)
Gain 0 dB ±0,5 dB (ref. to antenna input)
Compander Sennheiser HiDyn plus emulated by DSP, Latency <= 1.9 ms
Frequency response 40...20000 Hz
Nominal deviation +-40 kHz
Peak deviation +-56 kHz
Signal-to-noise ratio ≥ 118 dB(A) (analogue AF OUT), 140 dB (AES3 audio out)
THD, total harmonic distortion ≤ 0,3 %
Output voltage +18 dBu to –10 dBu, adjustable in steps of 1 dB (transformer balanced)
Audio-XLR connector analogue: XLR-3, digital AES3: XLR-3 Sample Rates: 44.1, 48, 88.2, 96 kHz, 24 Bit
Booster 12 V DC, 2 x 200 mA, short-circuit-proof
Power supply 100 - 240 V AC, 50/60 Hz
Power consumption max. 50VA, 20 W (AC)
Operating temperature –10 °C ... +55 °C
Storage temperature -25 °C ... +70 °C
Dimensions 436 x 44 x 250 mm
Weight ca. 4080 g
General Description
Great technology throughout the microphone system make this system the ideal singing partner. The feedback-resistant, super-cardioid microphone capsule reproduces vocals prominently and with a smooth response. The powerful hand-held transmitter shows all important information on its large graphic display. Its optional rechargeable batteries can be recharged just by placing the handheld in the optional charging station.
Features
Sturdy metal housing (transmitter and receiver
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 32 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitter parameter from receiver
User-friendly menu operation with more control options
Illuminated graphic display, receiver also shows transmitter settings
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
Easy-exchangeable microphone modules from evolution series
Integrated Equalizer and Soundcheck mode
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement
Delivery Includes
1 EM 500 G3 rack-mount receiver
1 SKM 500-945 G3 handheld transmitter (super-cardioid, dynamic)
1 MZQ 1 microphone clip
1 GA 3 rack mount
1 NT 2 power supply unit
2 antennas
2 AA size batteries
Operating instructions
Technical Data
RF frequency range 516 ..... 865 MHz
Transmission/receiving frequencies 1680
Presets 32
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 80.....18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: +18 dBu max
Audio output level (unbalanced) Jack: +10 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 980 g
RF output power 10/30 mW
Operating time (transmitter) >8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern super-cardioid
Varients:
EW 500-945 G3-A:Frequency range 516...558 MHz
EW 500-945 G3-G:Frequency range 566...608 MHz
EW 500-945 G3-B:Frequency range 626...668 MHz
EW 500-945 G3-C:Frequency range 734...776 MHz
EW 500-945 G3-D:Frequency range 780...822 MHz
EW 500-945 G3-E:Frequency range 823...865 MHz
Volle Kontrolle über Ihre Leistung - überall und jeden Tag. Die G4 In-Ear Monitoring Sets machen Ihren Auftritt zu einem außergewöhnlichen Erlebnis - nicht nur für Ihr Publikum, sondern auch für Sie!
Features:
Entwickelt für professionellen Live-Sound: Robustes drahtloses All-in-One-System für In-Earm Anwendungen
Robuster Taschenempfänger und verlässliche In-Ear-Monitoring IE 4 Ohrhörer liefern Klarheit über das gesamte Frequenzspektrum für den täglichen Nutzen auf der Bühne
Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse mit kontrastreichem OLED-Display
Leichte und flexible drahtlose Synchronisation zwischen Sender und Empfänger über Infrarot
Kompatibel mit der Sennheiser Steuerungssoftware WSM für flexible Frequenzzuweisung und -überwachung
Bis zu 16 kompatible Kanäle
Bis zu 42 MHz Bandbreite mit 1680 wählbaren Frequenzen, voll abstimmbar im UHF-Bereich
Reichweite: bis zu 100 Meter
Hohe Sendeleistung (bis zu 50 mW), abhängig von länderspezifischen Vorschriften

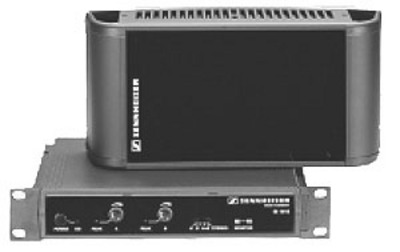

Sennheiser SI 1015The SI 1015 wideband modulator uses the new extremely reliable carrier frequencies 2.3 and 2.8 MHz and can be operated in single-channel, two-channel and stereo modes. The modulator is fitted with two balanced XLR-3 audio inputs and IR monitoring diodes. It can be used with SZI 1015 and SZI 1029 radiators, the signals for the radiators are available at two RF sockets, or, alternatively, at a barrier strip. (N.B.: The barrier strip – which also powers the connected radiators – can only be used with SZI 1015 and SZI 1029-24 radiators.)Features:2-Watt radiator and modulator for the new carrier frequencies 2.3 and 2.8 MHz2-Watt radiator with a maximum coverage area of 400 m²chaining the signal to additional radiatorsModulator for single-channel, two-channel or stereo operation, features monitoring diodes and a separate barrier strip with RF and DC outputs for connecting radiatorsWide range of mounting accessories for the radiator, modulator comes complete with rack-mount earsTechnical Specifications:Modulation FMNominal deviation +/- 40 kHzCarrier frequencies 2,3 MHz / 2,8 MHzImpedance 600 OhmOperating voltage (mains) 24-30 V DCCurrent consumption <140 mADimensions 1/2 19", 1 U (224x44x173 mm)Weight 800 gAudio-XLR connector 2 x XLR-3 symet.RF output 2 x BNCPeak deviation +/- 56 kHzInput voltage range 10 mV.....5 V (Line)
SR 2000 IEM CWFrequency range 718 ... 790 MHz
General Description
Rugged, reliable, and flexible – in short: professional. With SR 2000, you can choose from 26 frequency banks with up to 32 channels. The channels can be user-programmed six of the frequency banks. Three switchable RF output powers (10, 30, and 50 mW – additionally 100 mW in the US version) provide greatest artistic and technical freedom. A 5-band equalizer makes it possible to individually influence the audio output signal.
Features
Rugged 19" all-metal housing with integrated power supply unit
Up to 3000 frequencies in up to 75 MHz switching bandwidth
20 fixed frequency banks with up to 32 compatible presets
6 banks each with up to 32 tunable channels
Frequency setting in 25 kHz steps
Switchable RF output power for versatile use
Enhanced audio frequency response in bass range
Integrated 5-band graphic equalizer
Receivers can be configured from the transmitter menu
Can be synchronized with the receiver using infrared interface
Wide range of accessories for virtually any use
Monitoring and control using Sennheiser WSM PC software
User-friendly menu interface with two-color backlit graphic display (red as a warning)
Pilot tone transmission for interference-free operation
Adjustable headphone connection
Wide range of accessories for virtually any use
Delivery Includes
1 SR 2000 IEM transmitter
3 mains cables (EU, UK, and US)
1 rod antenna
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF license sheet
4 device feet
Technical Data
Modulation FM, MPX-Stereo
RF frequency range 516....865 MHz
Carrier frequencies max. 3000
Presets max. 32
Switching bandwidth max. 75 MHz
RF output power 10, 30, 50 mW (US: 100 mW) switchable
Nominal deviation ±24 kHz
Peak deviation ±48 kHz
Compander HDX
Signal-to-noise ratio > 90 dB(A)
THD, total harmonic distortion < 0,9%
Antenna connector 2x BNC
In compliance with CE, FCC, IC
Frequency response 25....15000
Audio-XLR connector 2x XLR, 2x 6,5mm Jack
Input voltage range + 22 dBu max
Headphone connector > 100 mW (32 Ohm)
Power supply 100 - 240 V AC, 50/60 Hz
Current consumption 0,1 A
Dimensions 436 x 215 x 43 mm
Weight 2600 g
General DescriptionSR 2020-D, multiply gifted! For each of your productions, the compact high-tech transmitter SR 2020-D will provide perfect audio in exactly the right way. It allows for conferences or presentations to be interpreted simultaneously in up to 8 languages. Other audio content can be selected from CD, DVD or your IT network. Of course, you can connect microphones for announcements, and the system will even follow you on bus or boat tours.The transmitter is operated very easily and comfortably. Important parameters such as channel selection and line/mic input levels can be checked on the back-lit display.
Features
6 - 8 channels in the licence-free range Europe: 863-865 MHz
Digital RF-transmission
19" rack-mount kit included
Very easy configuration and usage
Balanced XLR-3F-Input with switchable phantom-power (48V)
6,3mm jack-plug headphones connection for monitoring
Backlit display shows:
- Channel selection
- Mic.-/Line-Input level
Technical Data
Modulation 2-FSK
RF frequency range 863 - 865 MHz
Number of channels 6 / 8
RF output power 10 mW
Signal-to-noise ratio > 70 dB(A)
THD, total harmonic distortion ≤ 1%
Input voltage range 160 mV - 2.5 V (Line), 2 mV - 125 mV (Mic)
Phantom powering 48 V
Current consumption max 300 mA
Operating temperature 0 - 50 °C
Range 50m/100m Indoor/Outdoor
Weight 1100 g
Dimensions 212 x 145 x 38 mm
SR 2020-D-U Stationary rack-transmitter in the license-free frequency range US 926 - 928 MHz (with NT 2-1-US)General DescriptionSR 2020-D, multiply gifted! For each of your productions, the compact high-tech transmitter SR 2020-D will provide perfect audio in exactly the right way. It allows for conferences or presentations to be interpreted simultaneously in up to 8 languages. Other audio content can be selected from CD, DVD or your IT network. Of course, you can connect microphones for announcements, and the system will even follow you on bus or boat tours.The transmitter is operated very easily and comfortably. Important parameters such as channel selection and line/mic input levels can be checked on the back-lit display.
Features
6 - 8 channels in the licence-free range Europe: 863-865 MHz
Digital RF-transmission
19" rack-mount kit included
Very easy configuration and usage
Balanced XLR-3F-Input with switchable phantom-power (48V)
6,3mm jack-plug headphones connection for monitoring
Backlit display shows:
- Channel selection
- Mic.-/Line-Input level
Technical Data
Modulation 2-FSK
RF frequency range 863 - 865 MHz
Number of channels 6 / 8
RF output power 10 mW
Signal-to-noise ratio > 70 dB(A)
THD, total harmonic distortion ≤ 1%
Input voltage range 160 mV - 2.5 V (Line), 2 mV - 125 mV (Mic)
Phantom powering 48 V
Current consumption max 300 mA
Operating temperature 0 - 50 °C
Range 50m/100m Indoor/Outdoor
Weight 1100 g
Dimensions 212 x 145 x 38 mm
General Description
Aside from being designed as a twin transmitter, SR 2050 is identical to SR 2000, and like its single counterpart, it is also network compatible. In other words: Through the Ethernet connections, you can monitor and control SR 2050 from your PC using Sennheiser’s Wireless Systems Manager software. You can also easily link other network-compatible components from other Sennheiser series.
Features
Rugged 19" all-metal housing with integrated power supply unit
Up to 3000 frequencies in up to 75 MHz switching bandwidth
20 fixed frequency banks with up to 32 compatible presets
6 banks each with up to 32 tunable channels
Frequency setting in 25 kHz steps
Switchable RF output power for versatile use
Enhanced audio frequency response in the bass range
Integrated 5-band graphic equalizer
Receivers can be configured from the transmitter menu
Can be synchronized with the receiver using infrared interface
Wide range of accessories for virtually any use
Monitoring and control using Sennheiser WSM PC software
User-friendly menu interface with two-color backlit graphic display (red as a warning)
Pilot tone transmission for interference-free operation
Adjustable headphone connections
Wide range of accessories for virtually any use
Delivery Includes
1 SR 2050 IEM transmitter
3 mains cables (EU, UK, and US)
2 rod antennas
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF license sheet
4 device feet
Technical Data
Modulation FM, MPX-Stereo
RF frequency range 516....865 MHz
Carrier frequencies max. 3000
Presets max. 32
Switching bandwidth max. 75 MHz
RF output power 10, 30, 50 mW (US: 100 mW) switchable
Nominal deviation ±24 kHz
Peak deviation ±48 kHz
Compander HDX
Signal-to-noise ratio > 90 dB(A)
THD, total harmonic distortion < 0,9%
Antenna connector 2x BNC
In compliance with CE, FCC, IC
Frequency response 25....15000
Audio-XLR connector 4x XLR, 4x 6,5mm Jack
Input voltage range + 22 dBu max
Headphone connector > 100 mW (32 Ohm)
Power supply 100 - 240 V AC, 50/60 Hz
Current consumption 0,2 A
Dimensions 436 x 215 x 43 mm
Weight 2900 g
Varients:
SR 2050 IEM AW:Frequency range 516 ... 558 MHz
SR 2050 IEM GW:Frequency range 558 ... 626 MHz
SR 2050 IEM BW:Frequency range 626 ... 698 MHz
SR 2050 IEM CW:Frequency range 718 ... 790 MHz
SR 2050 IEM DW:Frequency range 790 ... 865 MHz
General Description
Aside from being designed as a twin transmitter, SR 2050 is identical to SR 2000, and like its single counterpart, it is also network compatible. In other words: Through the Ethernet connections, you can monitor and control SR 2050 from your PC using Sennheiser’s Wireless Systems Manager software. You can also easily link other network-compatible components from other Sennheiser series.
Features
Rugged 19" all-metal housing with integrated power supply unit
Up to 3000 frequencies in up to 75 MHz switching bandwidth
20 fixed frequency banks with up to 32 compatible presets
6 banks each with up to 32 tunable channels
Frequency setting in 25 kHz steps
Switchable RF output power for versatile use
Enhanced audio frequency response in the bass range
Integrated 5-band graphic equalizer
Receivers can be configured from the transmitter menu
Can be synchronized with the receiver using infrared interface
Wide range of accessories for virtually any use
Monitoring and control using Sennheiser WSM PC software
User-friendly menu interface with two-color backlit graphic display (red as a warning)
Pilot tone transmission for interference-free operation
Adjustable headphone connections
Wide range of accessories for virtually any use
Delivery Includes
1 SR 2050 IEM transmitter
3 mains cables (EU, UK, and US)
2 rod antennas
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF license sheet
4 device feet
Technical Data
Modulation FM, MPX-Stereo
RF frequency range 516....865 MHz
Carrier frequencies max. 3000
Presets max. 32
Switching bandwidth max. 75 MHz
RF output power 10, 30, 50 mW (US: 100 mW) switchable
Nominal deviation ±24 kHz
Peak deviation ±48 kHz
Compander HDX
Signal-to-noise ratio > 90 dB(A)
THD, total harmonic distortion < 0,9%
Antenna connector 2x BNC
In compliance with CE, FCC, IC
Frequency response 25....15000
Audio-XLR connector 4x XLR, 4x 6,5mm Jack
Input voltage range + 22 dBu max
Headphone connector > 100 mW (32 Ohm)
Power supply 100 - 240 V AC, 50/60 Hz
Current consumption 0,2 A
Dimensions 436 x 215 x 43 mm
Weight 2900 g
Varients:
SR 2050 IEM AW:Frequency range 516 ... 558 MHz
SR 2050 IEM GW:Frequency range 558 ... 626 MHz
SR 2050 IEM BW:Frequency range 626 ... 698 MHz
SR 2050 IEM CW:Frequency range 718 ... 790 MHz
SR 2050 IEM DW:Frequency range 790 ... 865 MHz
General Description
Aside from being designed as a twin transmitter, SR 2050 is identical to SR 2000, and like its single counterpart, it is also network compatible. In other words: Through the Ethernet connections, you can monitor and control SR 2050 from your PC using Sennheiser’s Wireless Systems Manager software. You can also easily link other network-compatible components from other Sennheiser series.
Features
Rugged 19" all-metal housing with integrated power supply unit
Up to 3000 frequencies in up to 75 MHz switching bandwidth
20 fixed frequency banks with up to 32 compatible presets
6 banks each with up to 32 tunable channels
Frequency setting in 25 kHz steps
Switchable RF output power for versatile use
Enhanced audio frequency response in the bass range
Integrated 5-band graphic equalizer
Receivers can be configured from the transmitter menu
Can be synchronized with the receiver using infrared interface
Wide range of accessories for virtually any use
Monitoring and control using Sennheiser WSM PC software
User-friendly menu interface with two-color backlit graphic display (red as a warning)
Pilot tone transmission for interference-free operation
Adjustable headphone connections
Wide range of accessories for virtually any use
Delivery Includes
1 SR 2050 IEM transmitter
3 mains cables (EU, UK, and US)
2 rod antennas
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF license sheet
4 device feet
Technical Data
Modulation FM, MPX-Stereo
RF frequency range 516....865 MHz
Carrier frequencies max. 3000
Presets max. 32
Switching bandwidth max. 75 MHz
RF output power 10, 30, 50 mW (US: 100 mW) switchable
Nominal deviation ±24 kHz
Peak deviation ±48 kHz
Compander HDX
Signal-to-noise ratio > 90 dB(A)
THD, total harmonic distortion < 0,9%
Antenna connector 2x BNC
In compliance with CE, FCC, IC
Frequency response 25....15000
Audio-XLR connector 4x XLR, 4x 6,5mm Jack
Input voltage range + 22 dBu max
Headphone connector > 100 mW (32 Ohm)
Power supply 100 - 240 V AC, 50/60 Hz
Current consumption 0,2 A
Dimensions 436 x 215 x 43 mm
Weight 2900 g
Varients:
SR 2050 IEM AW:Frequency range 516 ... 558 MHz
SR 2050 IEM GW:Frequency range 558 ... 626 MHz
SR 2050 IEM BW:Frequency range 626 ... 698 MHz
SR 2050 IEM CW:Frequency range 718 ... 790 MHz
SR 2050 IEM DW:Frequency range 790 ... 865 MHz
Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse und intuitiv bedienbarem OLED-Display für volle Kontrolle, liefert Klarheit über das gesamte Frequenzspektrum für den täglichen Nutzen auf der Bühne mit dem evolution wireless G4 In-Ear-Monitoring System.
Features:
Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse mit kontrastreichem OLED-Display
Leichte und flexible drahtlose Synchronisation zwischen Sender und Empfänger über Infrarot
Kompatibel mit der Sennheiser Steuerungssoftware WSM für flexible Frequenzzuweisung und -überwachung
Bis zu 16 kompatible Kanäle
Bis zu 42 MHz Bandbreite mit 1680 wählbaren Frequenzen, voll abstimmbar im UHF-Bereich
Reichweite: bis zu 100 Meter
Hohe Sendeleistung (bis zu 50 mW), abhängig von länderspezifischen Vorschriften
Kompatibel mit dem drahtlosen, integrierten PA-System LSP 500 PRO
The P3TR112GR is part of the PSM 300 wireless systems family.
PSM®300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.
Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio.
Includes P3R, P3T, SE112, rackmount and hardware kits, ¼ wave antenna, BNC bulkhead adapter, BNC cable, power supply, 2 AA batteries, zipper bag, and user guide
P9RAThe P9RA is a compact, stereo bodypack receiver for use with the PSM®900 Wireless Personal Monitor System.It offers premium features including RF Scan and Automatic Gain Control for unparalleled RF stability and channel availability, plus an advanced rechargeability option for extended usage times, all packed in the thinnest form factor available.Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy reference.The P9RA is compatible with all Shure SE Sound Isolating Earphones, designed specifically for use with Shure PSM systems.Please note: the SBC200 charger, SBC800-US charger, and SB900 rechargeable battery are available separately.Features:Advanced rechargeability option provides up to 10 hours of continuous use, with precision tracking of battery life and charge cycle detailsUltra-thin, low profile bodypack allows discreet placement on the performerEnhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detailWith RF Scan, stand where the artist will be on stage and instantly check RF levelAutomatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneouslySyncs to a P9T transmitter quickly and easily over IR link using Scan and SyncSwitchable 10/50/100 mW output power provides a robust RF link in a variety of performance environmentsSeparate, easily visible audio and RF status indicator LED'sAudio level and battery life meteringSelectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)Volume and balance controlsExtruded aluminum construction for rugged dependabilitySpecifications:Front-End RF Filtering: Dual Stage 3-Pole ChebyshevActive RF Gain Control: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)RF Sensitivity (20 dB SINAD): 2.2 μVSquelch Threshold (±3 dB SINAD): 20 dB SINADAdjacent Channel Rejection: >70 dBIntermodulation Attenuation>50 dB (referenced to 30 dB SINAD with -80 dBm on channel signal at 45 kHz deviation of a 1 kHz tone)>70 dB for 12 dB SINADBlocking: >80 dBImage Rejection: >90 dB typicalAudio Output Power (1kHz @ <1% distortion, peak power, @32Ω): 100 mWMinimum Load Impedance: 9.5 ΩHigh BoostSelectable: +2 dB, +4 dB @ 10 kHzVolume LimiterSelectable: 3–9 limits volume adjustment knob. Selected value analogous to volume knob increment.Battery LifeAA batteries: 4–6 hours (continuous use)SB900 Rechargeable Battery: 10 hours (continuous use)Net Weight: 200 g with 2 AA batteriesDimensions: 99 mm x 66 mm x 23 mm
The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System. It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation. Connections include balanced 1/4" and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Features:
RF Mute Switch allows system setup without causing RF interference
Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
Front panel audio input gain adjustment and LED level meter with clipping indicator
Front or back mountable antennas
Compatible with PA421SWB and PA821SWB antenna combiners
Loop out connectors for multiple mix setups and easy installation
Switchable +4 dBu and -10 dBV input level
Balanced, 1/4" and XLR connectors
Bit-mapped, backlit LCD
Includes rack-mounting hardware
1/8" headphone out on the front panel for easy monitoring
Net Weight: 850 g
Dimensions: 197 mm x 166 mm x 42 mm
