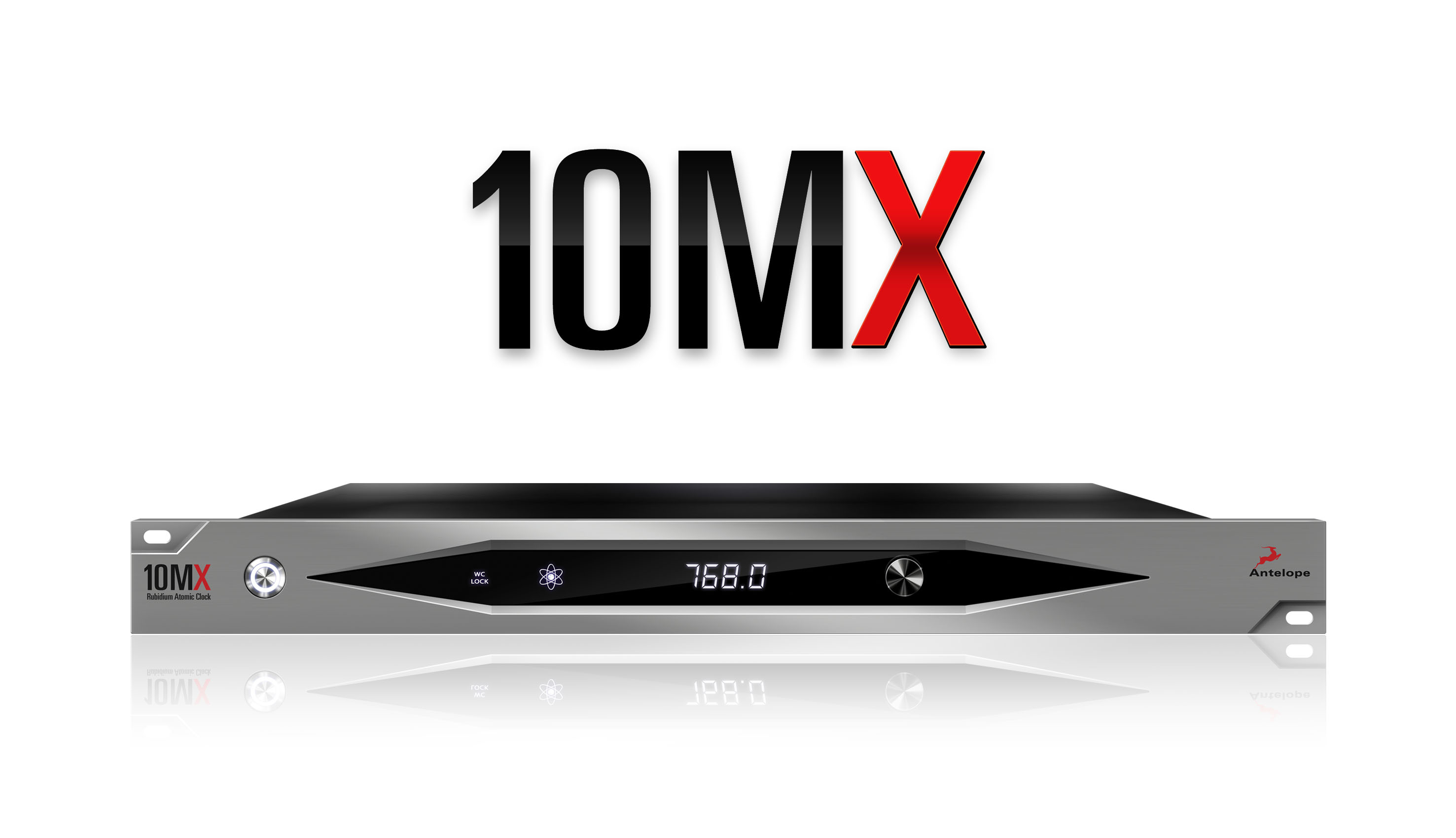

Multiple 10MHz outputs and an ultra-stable Word Clock signal in just 1U rack space
10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope's legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world's most stable and musical clocking.
10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.
10MX is perfectly suited for recording, mixing and mastering environments. Its form factor, occupying only 1U of rack space, makes it ideal for live sound application where rack slots are precious commodity.
The multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC outputs of 10MHz. The unit can also be used as a master clock with 4 outputs, supporting the outstanding sampling rate of up to 768 kHz via BNC. Two more clocking outputs are available via AES and two via S/PDIF.
The new Rubidium Atomic Clock is equally easy manageable either from the front panel or the intuitive software control panel available for OS X and Windows, connecting via a USB port.
Features
Rubidium core with accuracy of 0.05 ppb (parts per BILLION)
4th generation Acoustically Focused Clocking (AFCTM ), employing 64-bit DSP
Master clocking up to 768 kHz over 4 WC
2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz
Atomic clocking compatible with any device that accepts 10MHz reference
Utmost ease of operation, just connect it and power it on
PC/Mac connection via USB, allowing remote control and firmware upgrades
Intuitive Software Control Panel
Extremely sturdy mechanical construction
768 kHz HD Master Clock

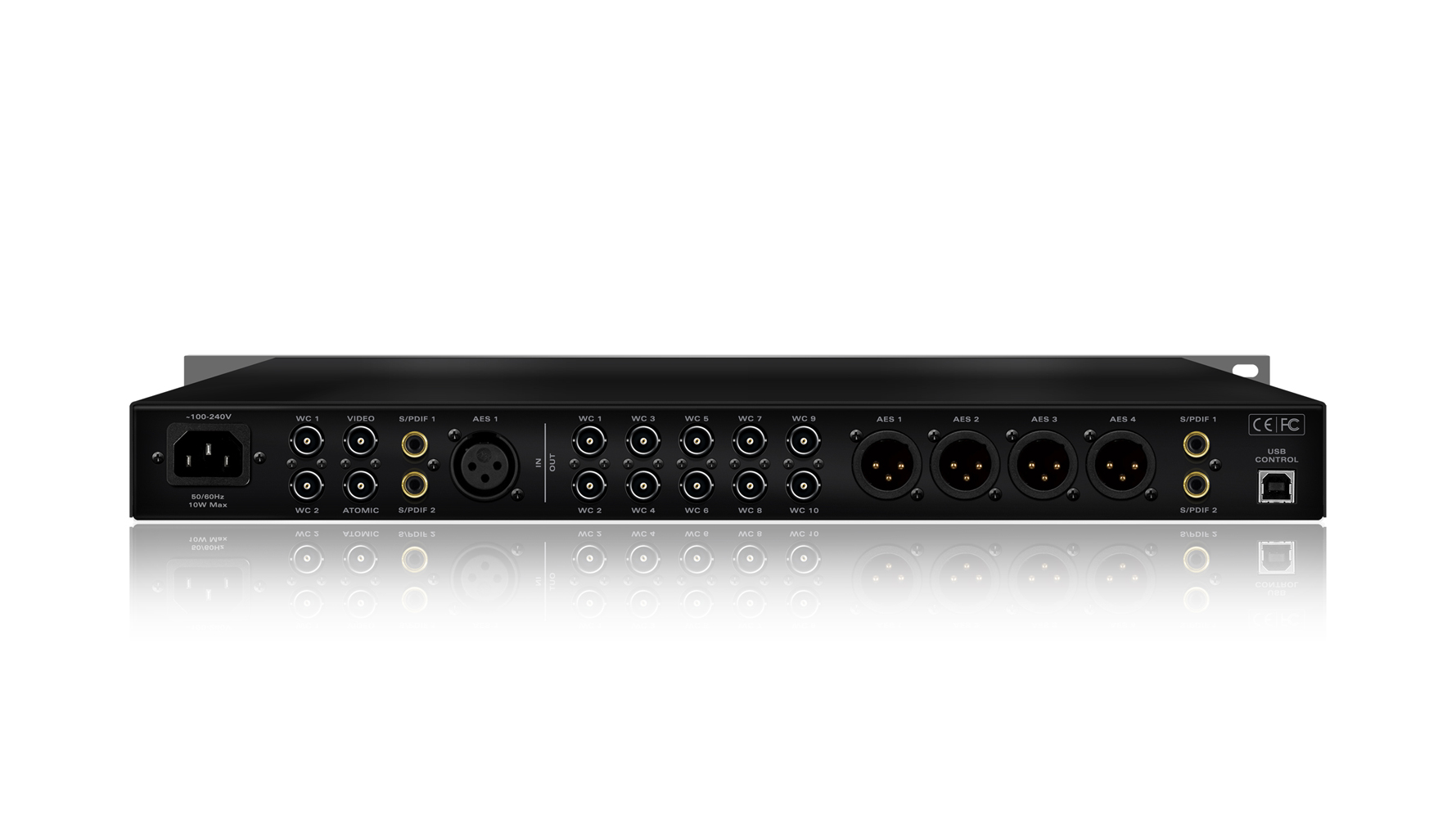

For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world. This legacy now continues with the newest master clock by Antelope Audio - Isochrone OCX HD.
OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator. OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven,proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.
Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope's newest Atomic Clock – 10MX.

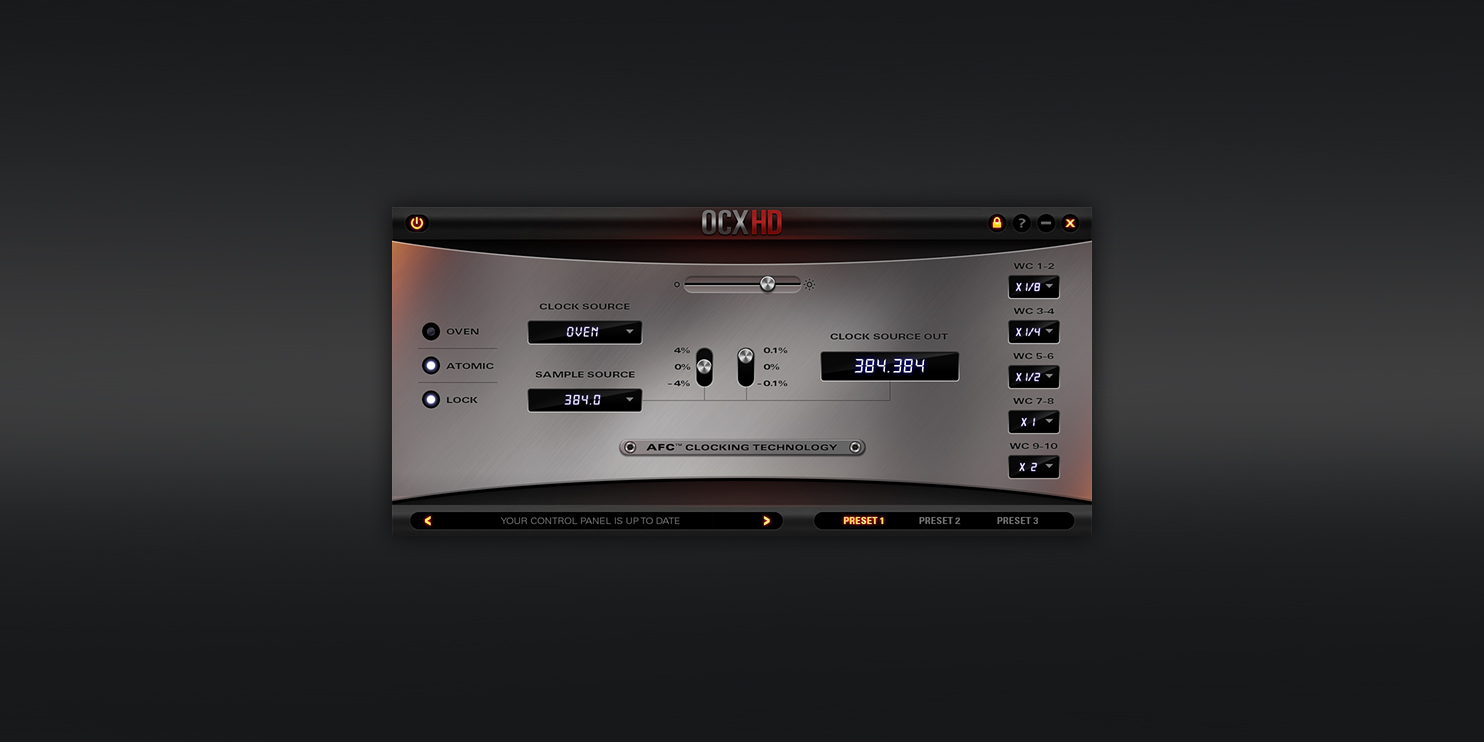

Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows. The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.
Features
4th generation Acoustically Focused Clocking (AFC) jitter management algorithm
Sample rate support of up to 768 kHz over WC
Multipliers/dividers enabling the output of 5 different sample rates
4x AES/EBU and 2x S/PDIF clocking outputs up to 192kHz for additional connectivity
Comprehensive audio gear-boxing
Universal Video Input on BNC
Atomic clock input for optimum accuracy and calibration
3 recallable presets
Rate lock from Control Panel to avoid settings change during session
Ergonomic front panel control
Software Control Panel, allowing remote control and firmware updates via USB

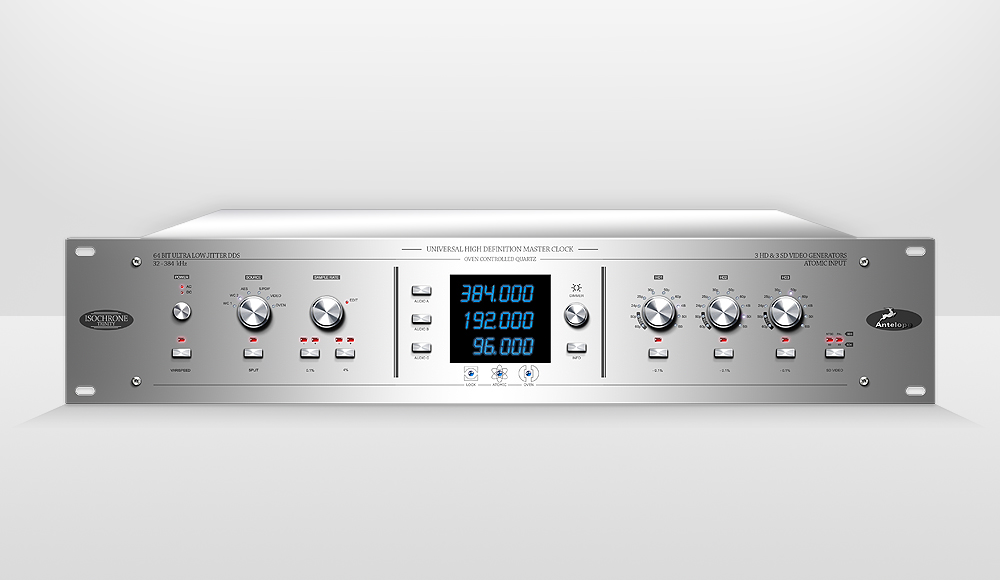

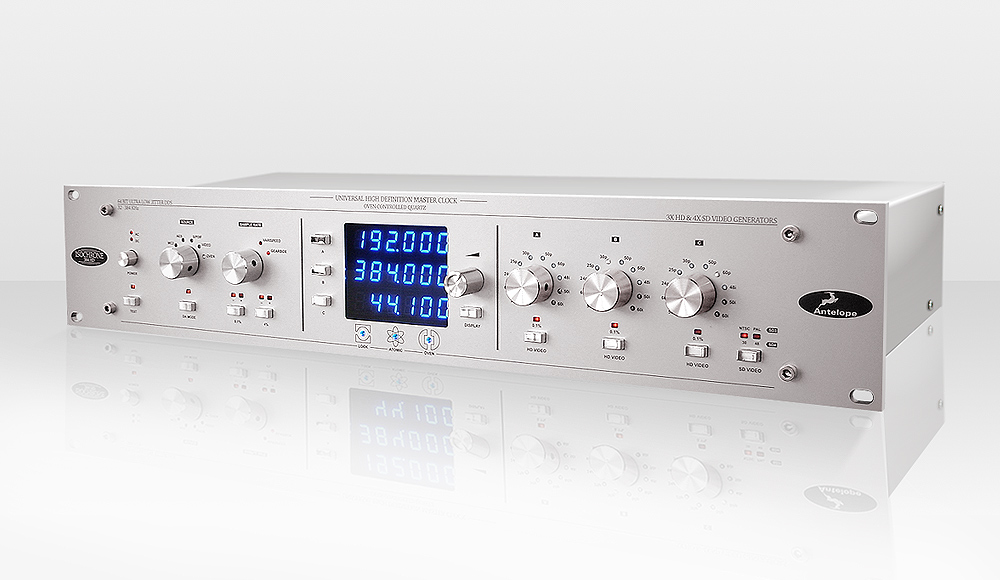

Antelope Isochrone TrinityUniversal high-definition master clock employing Antelope's 4th Generation of Acoustically Focused Clocking with 64-bit Digital Signal Processing (DSP) and up to 384 kHz audio streaming.A master clock that stands out:In the fickle world of Audio & Video formats, the new Trinity will be the Master Clock that stands out from the crowd for years to come, with the kind of features that other manufacturers can only aspire to. With dedicated functions and controls, the new Trinity is the best sounding and most versatile Master Clock available anywhere.The features that make it unique:There are unique features that are only available on the Trinity - such as Audio up to 384kHz, Varispeed, nine completely independent generators, and a Triple display! Of course, all of this comes in an intuitive menu-free user interface, just as you would expect from Antelope.Features: 4th Generation of Acoustically Focused Clocking employing 64 bit DSP leads to a new level in detailed & focused sound Oven Controlled Crystal Oscillator or Atomic Input for supremely low jitter Factory calibrated to better than +/- 0.001 ppm accuracy A wealth of rear panel connectivity for tremendous flexibility Comprehensive audio gear-boxing for anything in, anything out Atomic Input for ultimate performance 3 Independent & simultaneous audio generators up to 384kHz, and varispeed control +/- 200 cents 3 Independent & simultaneous HD generators, covering 16 formats 3 Independent & simultaneous SD generators, simultaneously offering PAL & NTSC Full Euro and USA Pull-ups / pull-downs for SD and HD video USB connection via PC & Mac allowing full remote control, loading/saving presets and firmware upgrades Dual redundant power supply with automatic switchover for added reliability

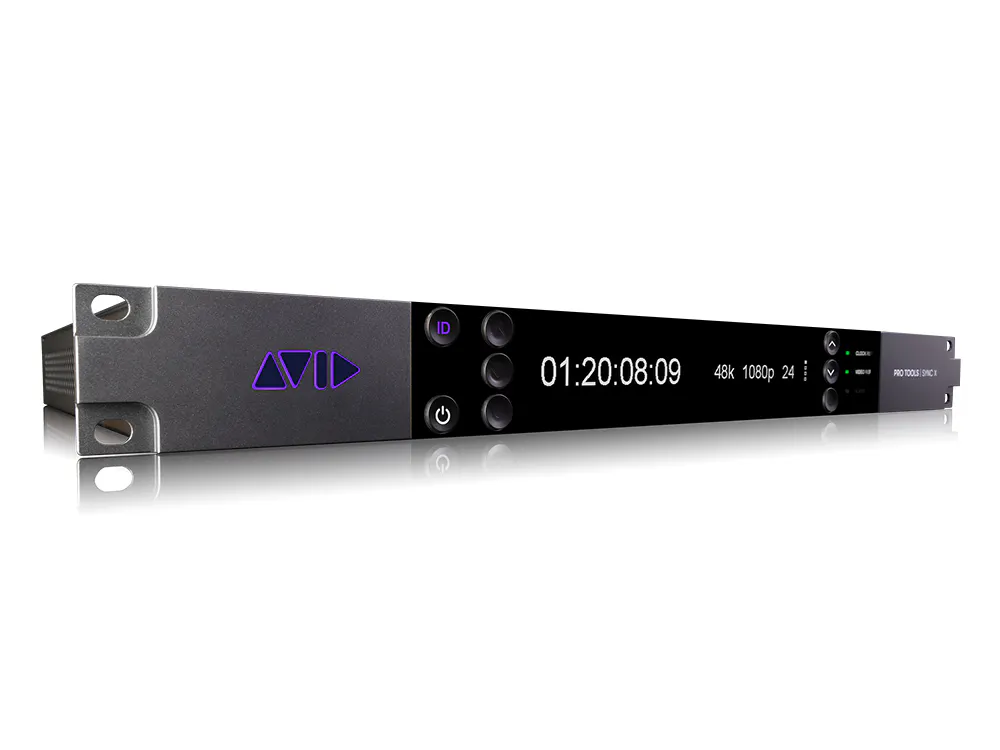

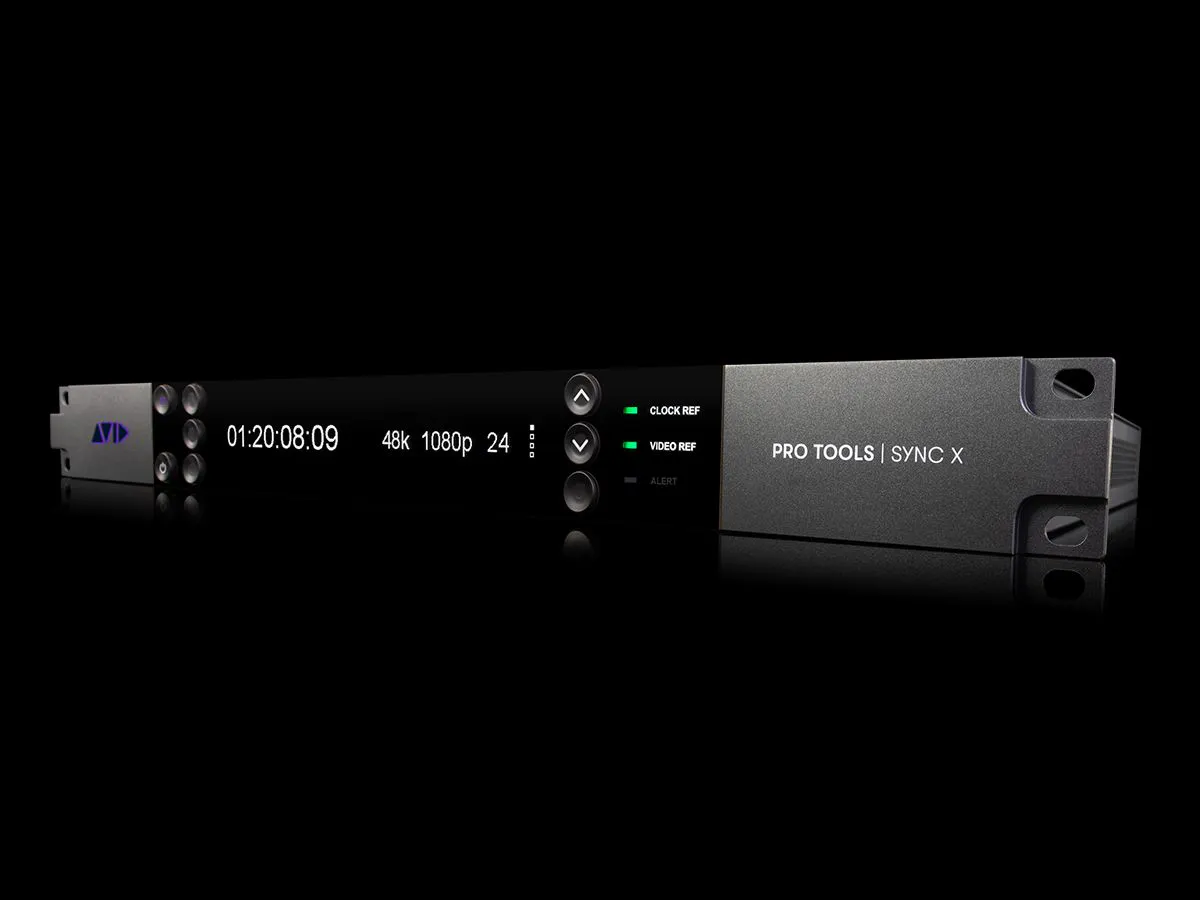

Halten Sie Ihr Pro Tools-System und angeschlossene Geräte stets synchron und reibungslos im Verbund - egal wie komplex Ihr Setup ist. PRO TOOLS | SYNC X dient als Bindeglied jeder Musik-, Film- oder Fernsehproduktion und bietet eine zuverlässige Taktung mit geringem Jitter, ein nahezu Sample-akkurates Einlocken und Frame-genaue Synchronisierung. Unterstützt werden alle branchenüblichen Taktquellen, Pull-Up / Down-Raten, Timecode-Raten sowie HD / SD-Formate. Dank des integrierten Video-Referenzsignalgenerators können sich Video-Peripheriegeräte direkt einrasten, wodurch die Produktionsumgebung optimiert wird.
Leistungsmerkmale
zuverlässige Taktung mittels Low Jitter JetPLL Clocking Technologie
nahezu Sample-akkurates Einlocken und Frame-genaue Synchronisation
Unterstützung aller üblichen Taktquellen
Loop Sync I/O
Word Clock I/O (1 Eingang, 6 Ausgänge)
10 MHz Clock In
AES3 and AES3id I/O
GPIO, Bi-Phase/Tach In, Pilot In
LTC I/O
MTC Out
9-pin (für Machine Control)
integrierter Video-Referenzsignalgenerator (4 Ausgänge)
Video Reference I/O (1 Eingang, 2 Ausgänge)
Host Serial Port
Introducing the Micro Clock mk2, a completely revolutionary design in external clocking from Black Lion Audio. The Micro Clock mk2 is a radical departure in design from its predecessor. It features ultra-low jitter third order crystal oscillators with a revolutionary patent-pending high current parallel drive circuit designed to increase the amount of desirable harmonics within the clock's spectral band. In addition to this, our proprietary noise reduction circuitry dramatically eliminates the unwanted switching harmonics normally found in digital signals. These are musically unrelated signals that create distortion and phase cancellation within the converted audio signal. Because of these technological advances, the Micro Clock mk2 is one of the best performing external word clocks within the pro audio market today.
When we introduced the Micro Clock mk2 we didn't anticipate the amount of demand and controversy that managed to accompany it. External clocking is certainly a hot button issue. Some folks maintain that there's no basis for it; that it's a sort of modern "emperor's new clothes." The reasoning behind this is that the device being clocked externally will simply filter the incoming clock signal through its phase lock loop, thereby eliminating any sort of benefit associated with the superior clock. In addition, the simple act of accepting the incoming signal and creating a new signal that's in phase will add some jitter.
The biggest problem with this theory is that we know nothing about the PLL filter in question; it's completely hypothetical. Many PLL's in pro audio are designed to filter out unwanted signals that are outside of the desired bandwidth, although some are configured to filter out unwanted harmonics that lie within the signal's frequency band. It's incredibly rare to find one that does both at the same time. In the case of the Micro Clock mk2, there is very little undesirable in-band or out of band content (below 10 picoseconds using a Delta Sigma average). There is, however, an abundance of desirable harmonically related in-band spectral content; more so than the average internal clock. No PLL filter is designed to remove these desirable harmonics; they're busy trying to remove the unwanted stuff. Simply put, the Micro Clock mk2 will not only provide audible improvement to your conversion process, but it will do it as well as or better than any other external clock on the market today.SPECIFICATIONS
Output: 3 galvanic-isolated BNC with fixed 75 ohm terminations @ 6 volts peak to peak
Power: 9-12 volts DC
Sampling rates: six selectable rates, 44.1 kHz-192 kHz
Jitter: maximum 1 pico second of intrinsic jitter, less than 10 picoseconds of accumulated jitter measured using a delta sigma averaging method.
The Micro Clock mk2 is simple and probably even boring looking by most standards. It's housed in a rugged yet basic 3 inch by 4 inch chassis that provides optimum RF shielding. It has no lights, no frequency display, and none of the usual visual candy that your friends might envy, but that's because those items create unwanted noise that affect the signal. For a modest black box, it does its job incredibly well and at a price that's unheard of for this level of performance!
The power supply is 12 volts DC using a wall wart that's capable of accepting both 120 and 240 volts AC. It features six selectable output frequencies from 44.1 kHz on up to 192 kHz. Output level is approximately 4 volts peak to peak. Jitter at the crystal oscillator is approximately 1 picosecond RMS, and it's just under 10 picoseconds RMS at the output. Both of these figures are obtained using a Delta Sigma averaging method. The Micro Clock mk2 is compatible with all modern digital devices that have 75 ohm BNC word clock input.
Features
Ultra-low jitter, harmonically-enhanced word clock signal generation
Dimmable frequency display
8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)
6 BNC outputs with dedicated output drivers for maximum isolation
RCA S/PDIF output
Optical S/PDIF output
AES output
1U removable rack ears

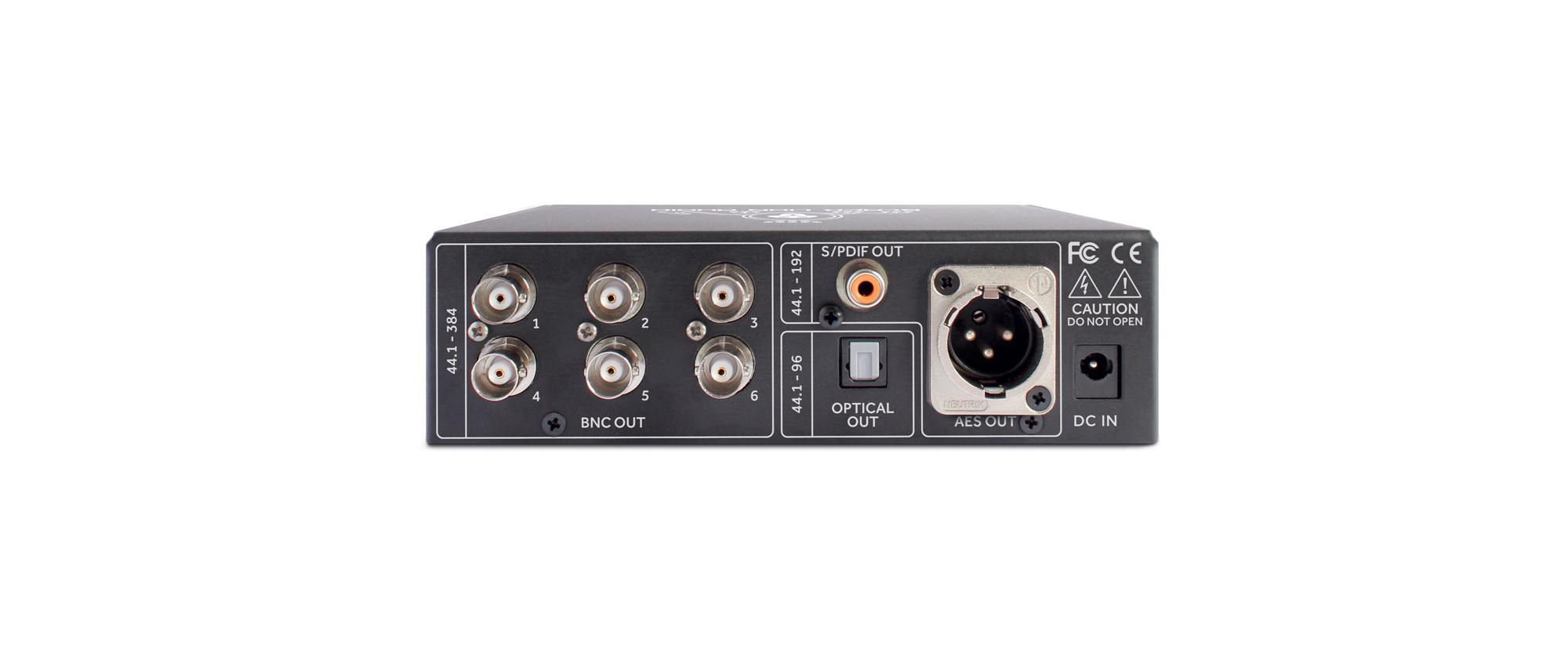

The Micro Clock MkIII is a significant redesign of its predecessor, the Micro Clock MkII. Core technological improvements include lower-jitter crystal oscillators, higher-quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, higher-precision signal division, and much heavier noise filtration throughout the circuit. All of this results in a more robust, lower-jitter clock signal than the Micro Clock MkII, with even more desirable harmonics in the clock’s spectral band that impart an undeniable musical quality to the conversion process. The feature set has expanded to include an LED frequency display, six BNC outputs capable of up to 384kHz, AES and RCA S/PDIF outputs capable of up to 192kHz, an optical S/PDIF output capable of up to 96kHz, and removable 1U rack ears.
Product Description
The Micro Clock MkIII is the culmination of almost 10 years of research involving jitter- reducing, harmonic-enhancing design techniques not found in any other master word clocks on the market. It not only can sync all of your digital audio gear together, but can significantly improve the sound quality as well. It may be the most significant single upgrade you can make to your digital audio setup. Get ready to hear what you’ve been missing!
We spent the better part of a year field-testing the Micro Clock MkIII XB prior to its release, and got a lot of positive feedback on the impact it made in a wide variety of setups. Its small form factor and its ability to drive up to 1,000 feet of coaxial cable make it not only the perfect solution for improving the conversion quality of an audio interface, but also for re-clocking digital mixing consoles at live shows or houses of worship, and as the master word clock in large post-production or broadcast facilities. It can easily sync all of your digital gear together, even if it’s located in different rooms, or different buildings!

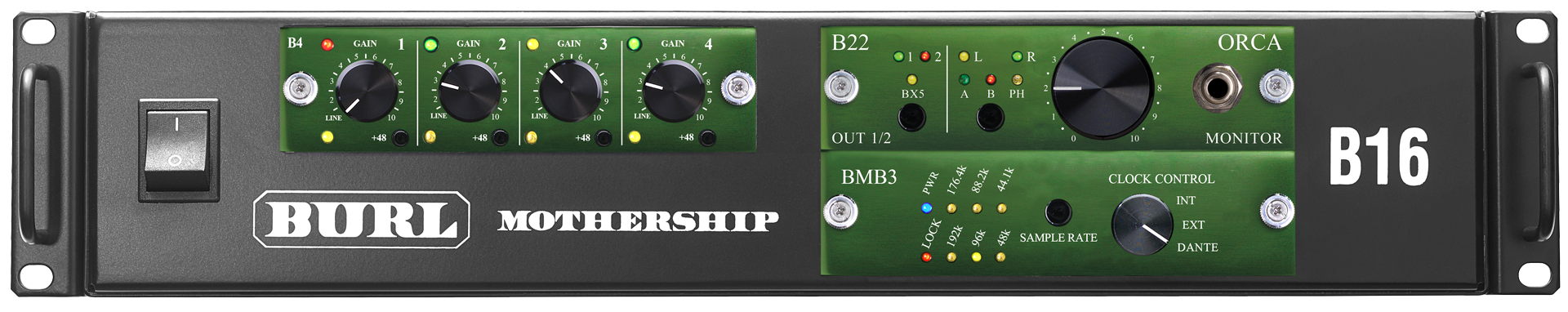

16-CHANNEL CONFIGURABLE AD/DABurl Audio is proud to announce the release of the B16 Mothership, a 2U, 2-slot version of the revolutionary B80 Mothership, Burl Audio’s signature product. Simply put, the B80 Mothership has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 Mothership. Utilizing technology developed for the B80, the new B16 Mothership uses the exact same I/O cards as the B80 Mothership, continuing Burl Audio’s deep dedication to analog, class-A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.
Using a card-based system, and a heavy-duty 2U chassis, the B16 Mothership employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.The BMB1 comes standard with two DigiLink connectors for direct hookup to Pro Tools. The BMB2 features two optical MADI ports for use with ASIO or CORE AUDIO PCIe MADI cards. The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. The BMB4 card allows for connectivity to any SoundGrid device, as well as low latency for a complete digital audio-networking solution. The BMB6 offers 8-channels of AES/EBU IO connectivity ad provides an easy interface to any AES/EBU device.
16-CHANNEL CONFIGURABLE AD/DABurl Audio is proud to announce the release of the B16 Mothership, a 2U, 2-slot version of the revolutionary B80 Mothership, Burl Audio’s signature product. Simply put, the B80 Mothership has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 Mothership. Utilizing technology developed for the B80, the new B16 Mothership uses the exact same I/O cards as the B80 Mothership, continuing Burl Audio’s deep dedication to analog, class-A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.
Using a card-based system, and a heavy-duty 2U chassis, the B16 Mothership employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.The BMB1 comes standard with two DigiLink connectors for direct hookup to Pro Tools. The BMB2 features two optical MADI ports for use with ASIO or CORE AUDIO PCIe MADI cards. The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. The BMB4 card allows for connectivity to any SoundGrid device, as well as low latency for a complete digital audio-networking solution. The BMB6 offers 8-channels of AES/EBU IO connectivity ad provides an easy interface to any AES/EBU device.
16-CHANNEL CONFIGURABLE AD/DABurl Audio is proud to announce the release of the B16 Mothership, a 2U, 2-slot version of the revolutionary B80 Mothership, Burl Audio’s signature product. Simply put, the B80 Mothership has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 Mothership. Utilizing technology developed for the B80, the new B16 Mothership uses the exact same I/O cards as the B80 Mothership, continuing Burl Audio’s deep dedication to analog, class-A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.
Using a card-based system, and a heavy-duty 2U chassis, the B16 Mothership employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.The BMB1 comes standard with two DigiLink connectors for direct hookup to Pro Tools. The BMB2 features two optical MADI ports for use with ASIO or CORE AUDIO PCIe MADI cards. The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. The BMB4 card allows for connectivity to any SoundGrid device, as well as low latency for a complete digital audio-networking solution. The BMB6 offers 8-channels of AES/EBU IO connectivity ad provides an easy interface to any AES/EBU device.
16-CHANNEL CONFIGURABLE AD/DABurl Audio is proud to announce the release of the B16 Mothership, a 2U, 2-slot version of the revolutionary B80 Mothership, Burl Audio’s signature product. Simply put, the B80 Mothership has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 Mothership. Utilizing technology developed for the B80, the new B16 Mothership uses the exact same I/O cards as the B80 Mothership, continuing Burl Audio’s deep dedication to analog, class-A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.
Using a card-based system, and a heavy-duty 2U chassis, the B16 Mothership employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.The BMB1 comes standard with two DigiLink connectors for direct hookup to Pro Tools. The BMB2 features two optical MADI ports for use with ASIO or CORE AUDIO PCIe MADI cards. The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. The BMB4 card allows for connectivity to any SoundGrid device, as well as low latency for a complete digital audio-networking solution. The BMB6 offers 8-channels of AES/EBU IO connectivity ad provides an easy interface to any AES/EBU device.
16-CHANNEL CONFIGURABLE AD/DABurl Audio is proud to announce the release of the B16 Mothership, a 2U, 2-slot version of the revolutionary B80 Mothership, Burl Audio’s signature product. Simply put, the B80 Mothership has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 Mothership. Utilizing technology developed for the B80, the new B16 Mothership uses the exact same I/O cards as the B80 Mothership, continuing Burl Audio’s deep dedication to analog, class-A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.
Using a card-based system, and a heavy-duty 2U chassis, the B16 Mothership employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.The BMB1 comes standard with two DigiLink connectors for direct hookup to Pro Tools. The BMB2 features two optical MADI ports for use with ASIO or CORE AUDIO PCIe MADI cards. The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. The BMB4 card allows for connectivity to any SoundGrid device, as well as low latency for a complete digital audio-networking solution. The BMB6 offers 8-channels of AES/EBU IO connectivity ad provides an easy interface to any AES/EBU device.
FC-1 FILMCODERFC-1 Filmcoder is our Bi-Phase to Timecode Converter which utilises our EBU/NTSC Multi Standard LTC Generator to generate Timecode derived from an external source of Bi-Phase or Pulse and Direction.Timecode generation may be referenced to XTAL, VIDEO, EXT, LINE or FILM and the integral ELECTRONIC GEARBOX allows any of the standard EBU/NTSC Timecodes to be generated from any Standard Film Speed.
Colin Broad TC-1HD
Our dedicated TIMECODE/READER/GENERATOR contains the basic building block of all our TC units, our Multi Standard EBU/NTSC Longitudinal Timecode Reader/Generator. Any standard Timecode may be read and displayed, from 1/20th to 80 times play speed and visual indications of the Frame Rate, Drop Frame, Colour Frame and Good Code status of the recovered code are also provided.Generation of 24/25/29.97 Drop & Non-Drop/30 fps may be referenced to XTAL, VIDEO, EXTernal, MAINS or READER and the numeric start value may be easily pre-set or automatically JAMMED (in 4 different modes) to the Reader's input. Full PAL 8 field colour lock or 4 field NTSC are supported and User Bits may also be set in the generated code.Applications include: Pre-striping Referenced Timecode on audio & video stock; Re-clocking a poor quality Timecode track; and providing a Master Station Clock for Distribution and Resolving applications; Reading and displaying external Timecode sources.

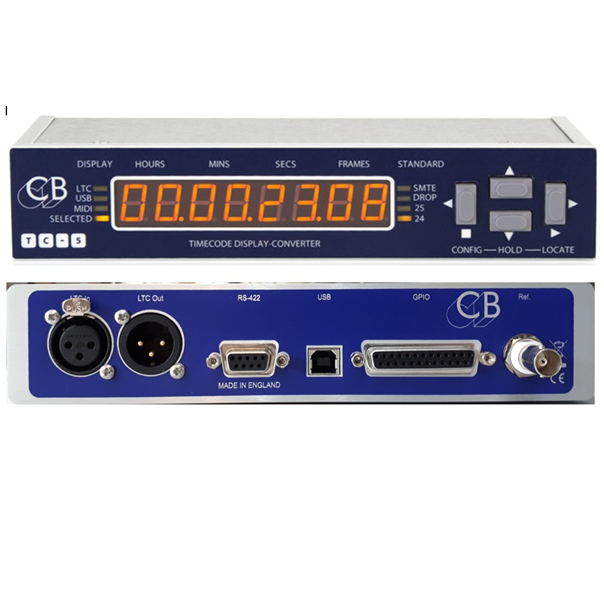

GENERATOR, READER, CONVERTER LTC-MIDI-USB, GPIO, REAL TIME CLOCKFEATURES7 GPIO+9GPI, USB, GPO EventsReal Time ClockLTC Timecode In/Out (XLR)Dual Channel USB-MIDI Interface, bi-directional, converts to MTC and LTCMac/Windows Even Control/Setup SoftwareLarge (0.56"/ 14 mm) Ultra Bright LED DisplayWord Clock or SD/HD Video Sync Reference1U Rack mount brackets availableRS422 configured as device or controllerConverts MMC to Sony P2The TC-5B RS-422 is a professional MTC/LTC interface with LED display, Video Sync, Word Clock input and USB port. The TC-5B 422 is designed to be equally at home in Audio, Video and Lighting Environments, applications include Digital Audio Workstations, Non Linear Video Editors, Mixing Consoles, Show Control and Lighting Control. Replacement for MIF4. The dual midi interface allows for the control/setup software to be run at the same time as a user application.
As a test tool the TC-5B RS-422 can check the frequency of Timecode, MTC, Video and Word Clock. The TC-5B RS-422 can also compare LTC with MTC.
FEATURES
7 GPIO+9GPI, USB, GPO Events
Real Time Clock
LTC Timecode In/Out (XLR)
Dual Channel USB-MIDI Interface , bi-directional, converts to MTC and LTC
LTC/MTC generator controlled from front panel or by MMC from USB or MIDI
Mac/Windows Event Control/Setup Software
Large (0.56”/ 14 mm) Ultra Bright LED Display
Word Clock or SD/HD Video Sync Reference
1U Rack mount brackets available
TC-5B-Midi: Midi In/Out (5 pin Din)
TC-5B-RS422: RS422 configured as device or controller
TC-5B-RS422: Converts MMC to Sony P2
DESCRIPTION

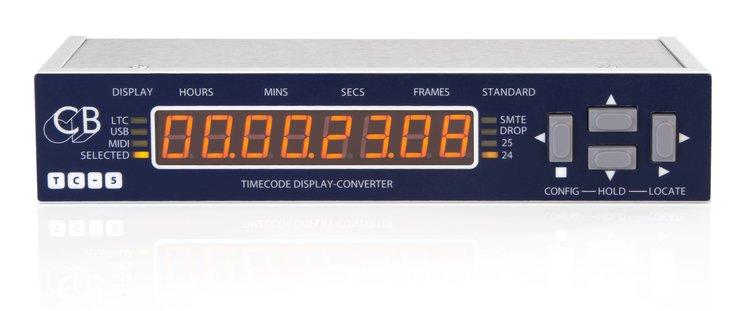

The TC-5B-Midi/RS-422 is a professional MTC/LTC interface with LED display, Video Sync, Word Clock input and USB port. The TC-5B-Midi/RS-422 is designed to be equally at home in Audio, Video and Lighting Environments, applications include Digital Audio Workstations, Non Linear Video Editors, Mixing Consoles, Show Control and Lighting Control. Replacement for MIF4. The dual midi interface allows for the control/setup software to be run at the same time as a user application.
As a test tool the TC-5B-Midi/RS-422 can check the frequency of Timecode, MTC, Video and Word Clock. The TC-5B-Midi/RS-422 can also compare LTC with MTC.
