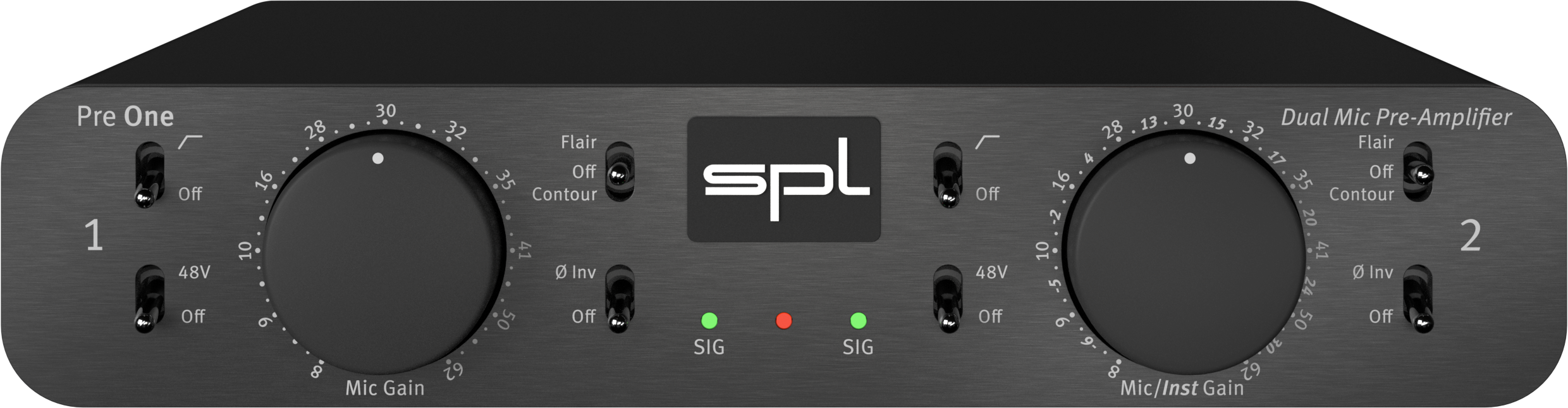

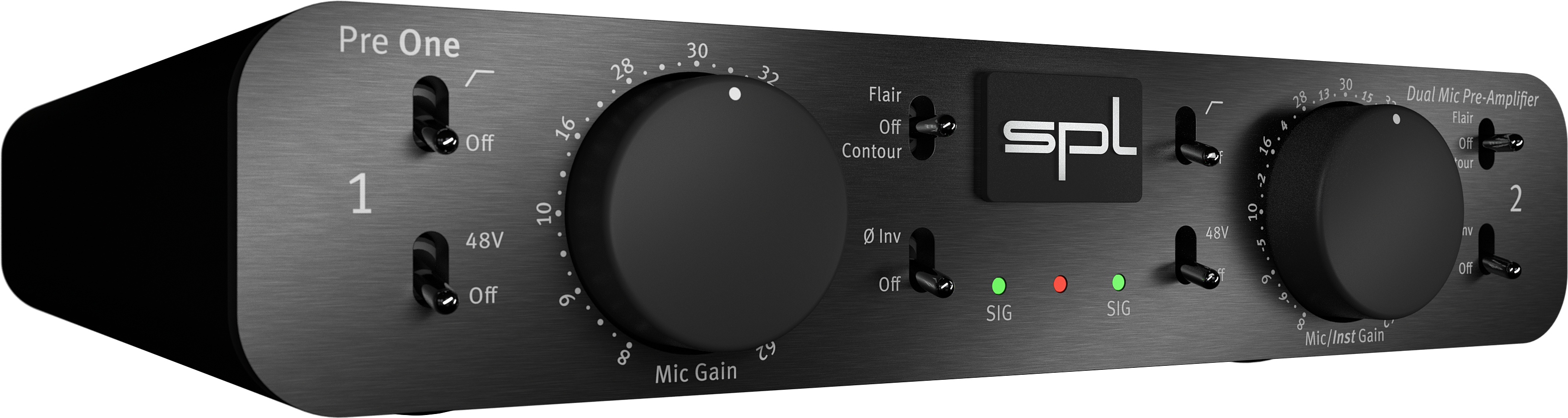

SPL Pre One
Experience superior sound with SPL Pre One, a two-channel microphone preamp featuring discrete technology, transparent sound, and a Hi-Z input.
Product information "SPL Pre One"
The two-channel microphone preamp with discrete technology for outstanding sound.
Pre One is equipped with two preamps. These are discretely designed and tuned for an open and transparent sound character. In addition to a microphone input, the second preamp also features a Hi-Z instrument input, allowing instruments such as electric guitars to benefit from the sound of the Pre One.
The preamps are technically and sonically equivalent to those in the SPL Channel One Mk3!
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
SPL
SPL electronics GmbH
Sohlweg 80 41372 Niederkrüchten Germany
info@spl.audio
https://spl.audio
Internal power supply; Linear power supply with shielded toroidal transformer
- Operating voltage for analog audio electronics: +/- 17 V
- Operating voltage for relays and LEDs: +/- 12 V
- Phantom power: +48 V
Power supply
- Plug-in power supply Input: 100 V – 240 V AC, 50 Hz/60 Hz
- Output: 12 V DC
- Power consumption: max. 7 VA

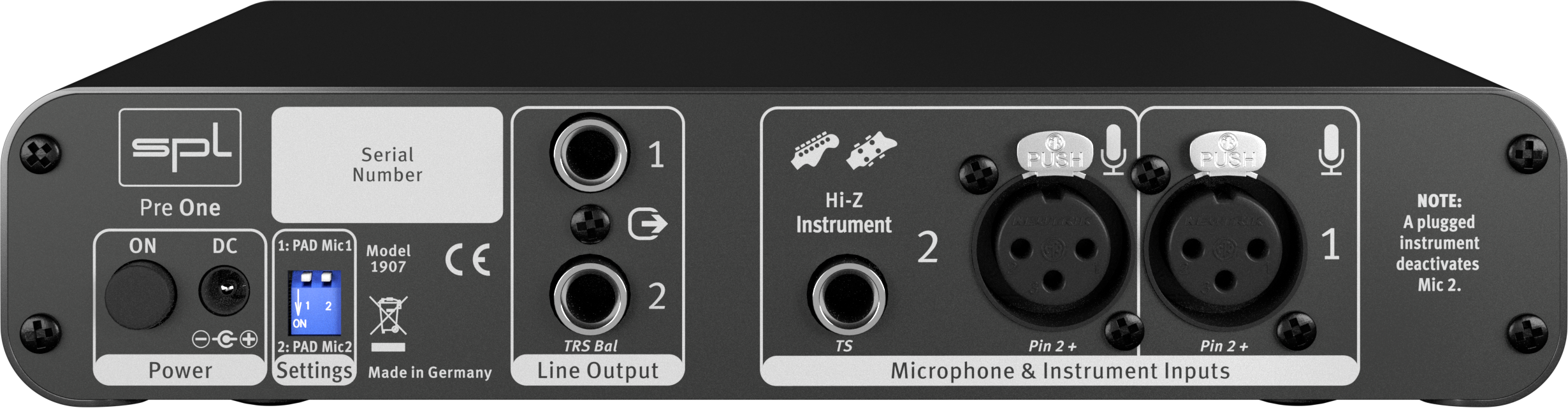

Analog inputs and outputs; XLR (balanced)
- Maximum output level: +22 dBu
- Maximum input level (Mic, +8 dB Gain): +13.5 dBu
- Maximum input level (Inst, -6 dB Gain): +23.5 dBu
- Input impedance (Mic): 10 kΩ
- Input impedance (Line): 1.1 MΩ
- Output impedance: 75 Ω
- Frequency response: 10 Hz – 200 kHz
- Equivalent Input Noise (EIN): 126 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain): -95 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 62 dB Gain): -68 dBu
- Common mode rejection ratio (1 kHz), Mic input: > 75 dB
- THD+N Ratio (1 kHz), Mic 30 dB Gain: 0.003 %
- THD+N Ratio (1 kHz), Mic 62 dB Gain (Max.): 0.018 %
- Signal indication/Meter: -25 dBu
- Dynamic range: 117 dB
Dimensions & Weight
- W x H x D (Width x Height x Depth): 210 x 49.6 x 220 mm
- 8.23 x 1.95 x 8.66 inch
- Weight of the device: 1.5 kg
- 3.31 lbs
- Shipping weight (incl. packaging): 2 kg
- 4.4 lbs
