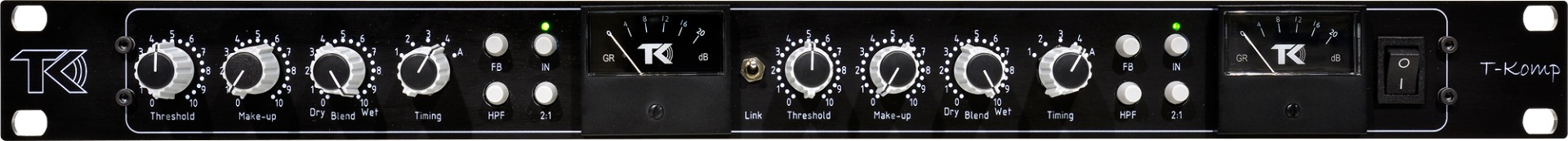

TK Audio T-KOMP rack
Product information "TK Audio T-KOMP rack"
The T-Komp has a unique design which offers a modern take on the old vari-mu ratio curve. The ratio is level dependent and increases with the signal level, a feature that will give you numerous possibilities.
To make the T-Komp more useful it has two ratio ranges. The first one goes up to 20:1, perfect for instrument tracking and smashing drums etc., the second, 2:1, is a more narrow range which makes it more suitable for bus compression.
The T-Komp can be selected between feed-forward mode for a punchy, modern response or feed-back mode with a smoother, more musical response.
The RMS detector has five settings, four from fast to slow where number four, the slowest, is similar to the old 160VU. The fifth position is a program dependent adaptive mode.
- Input impedance: 24kohm
- Output impedance: 50ohm
- Max in/output level: +26dBu
- Frequency response: 20Hz to 20kHz +/- 0,1dB
- Signal to noise ratio @ 0dBu: better than 94dB
- THD: level and compression dependent, mostly even harmonics
Features:
Threshold
Make-up gain: 0 to +20dB
Blend control: from dry to wet
Average timing:
- 1mS / 40mS (most useful for peak limiting)
- 5mS / 200mS
- 10mS / 400mS
- 25mS / 1000mS (similare to the old 160vu)
- Adaptive mode
FB: selects feed-back mode
HP filter: 150Hz, -6dB octave
In: compression in/out
2:1: selects a more narrow ratio range
Gain reduction meter
Link switch
115v or 230v, selectable
Specifications and components may be changed or updated without further notice.
